Manual Transaxle/Transmission - T5OD

Manual Transmission
The T5OD 5-speed transmission:
^ fifth speed gear functions as an overdrive gear.
^ forward gears are synchronized and helical cut.
^ shift interlock system prevents the engagement of more than one gear.
^ has an aluminum main case, extension housing and bellhousing.
^ has an input shaft, output shaft and countershaft.
^ reverse idler gear is used to produce a reverse rotation of the output shaft.

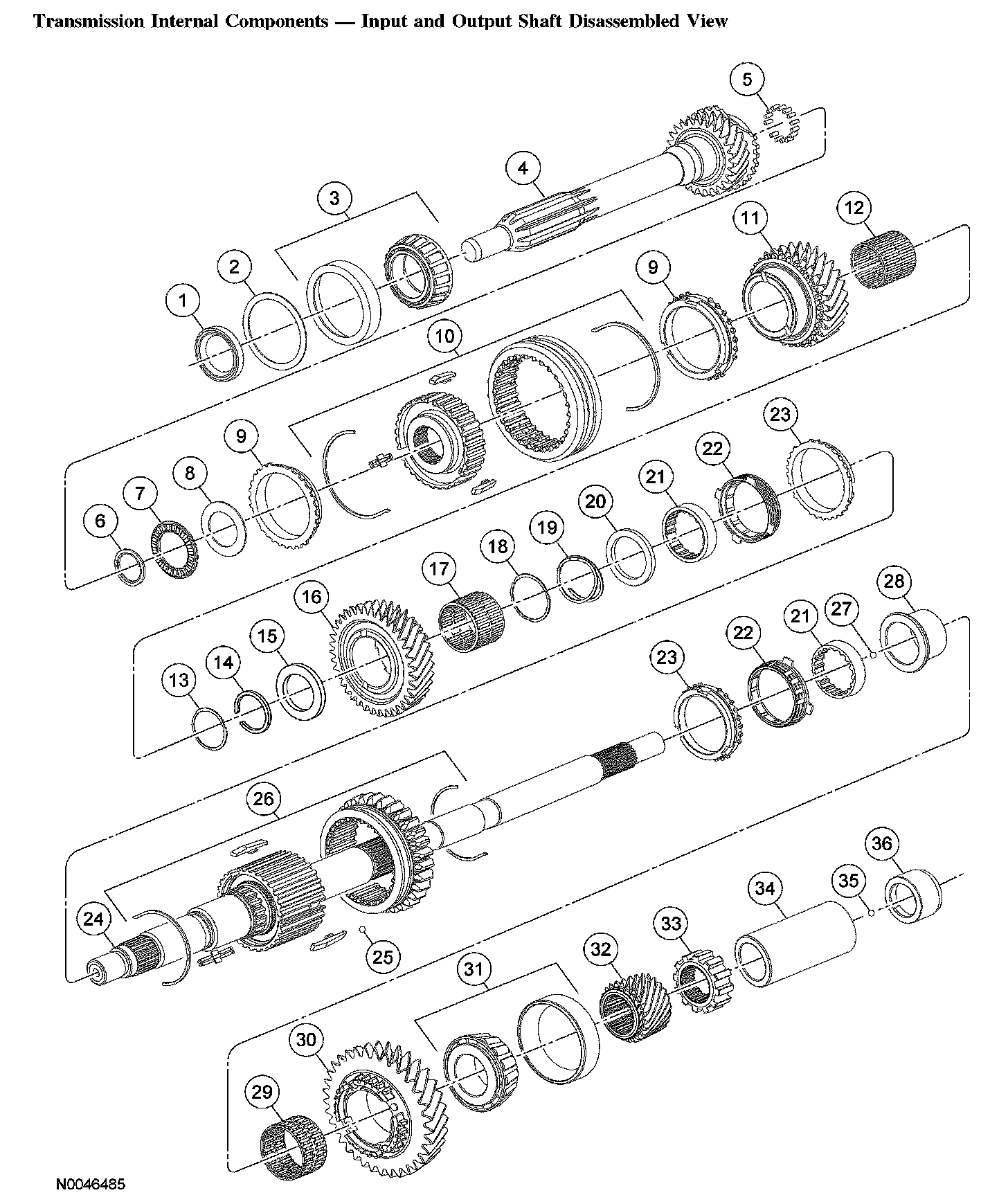

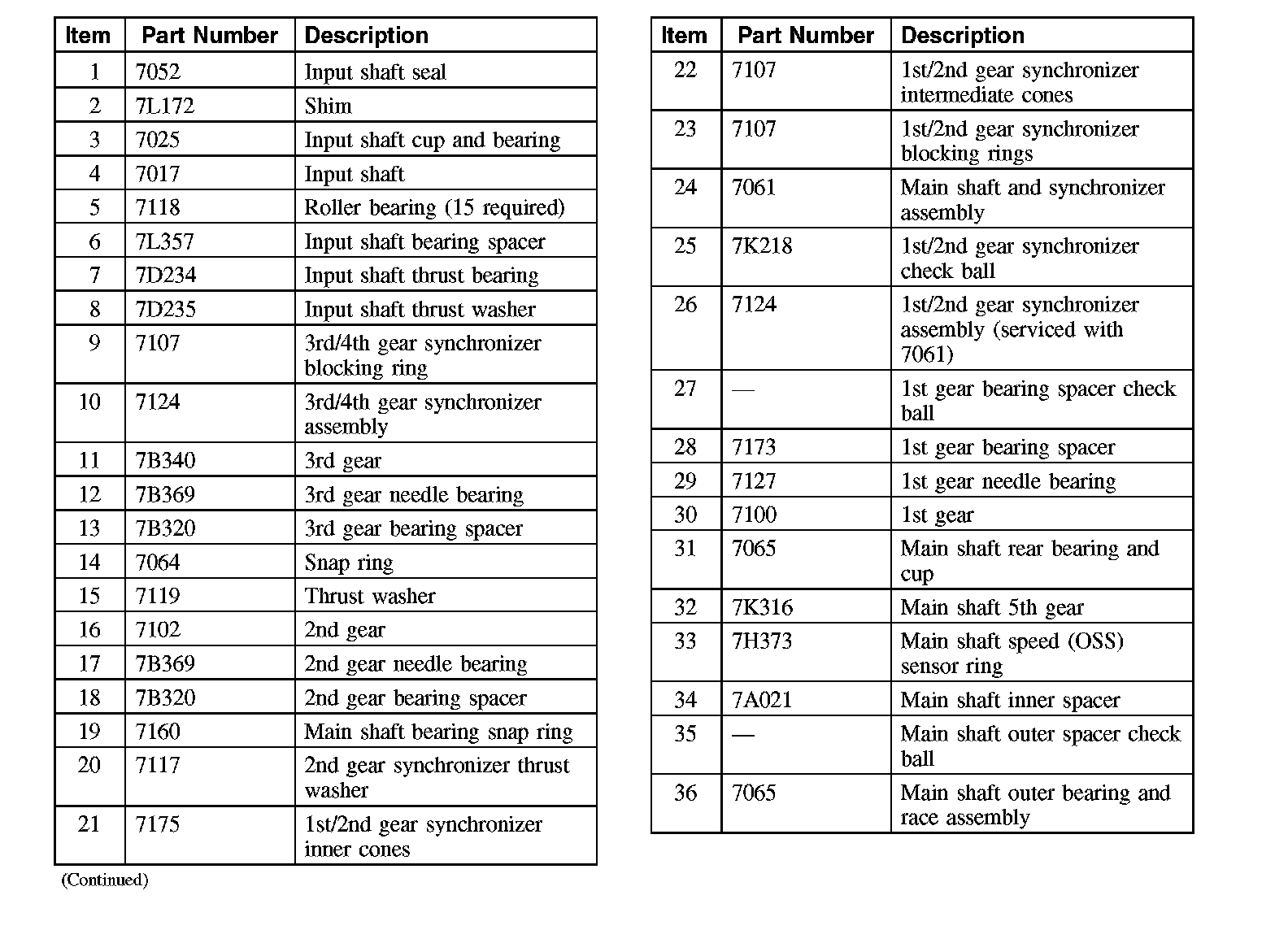

Transmission Internal Components - Input and Output Shaft Disassembled View (Part 1):

Transmission Internal Components - Input and Output Shaft Disassembled View (Part 2):

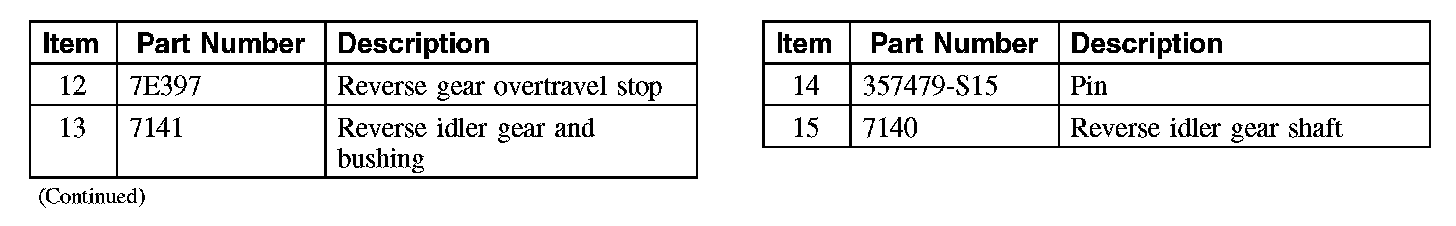

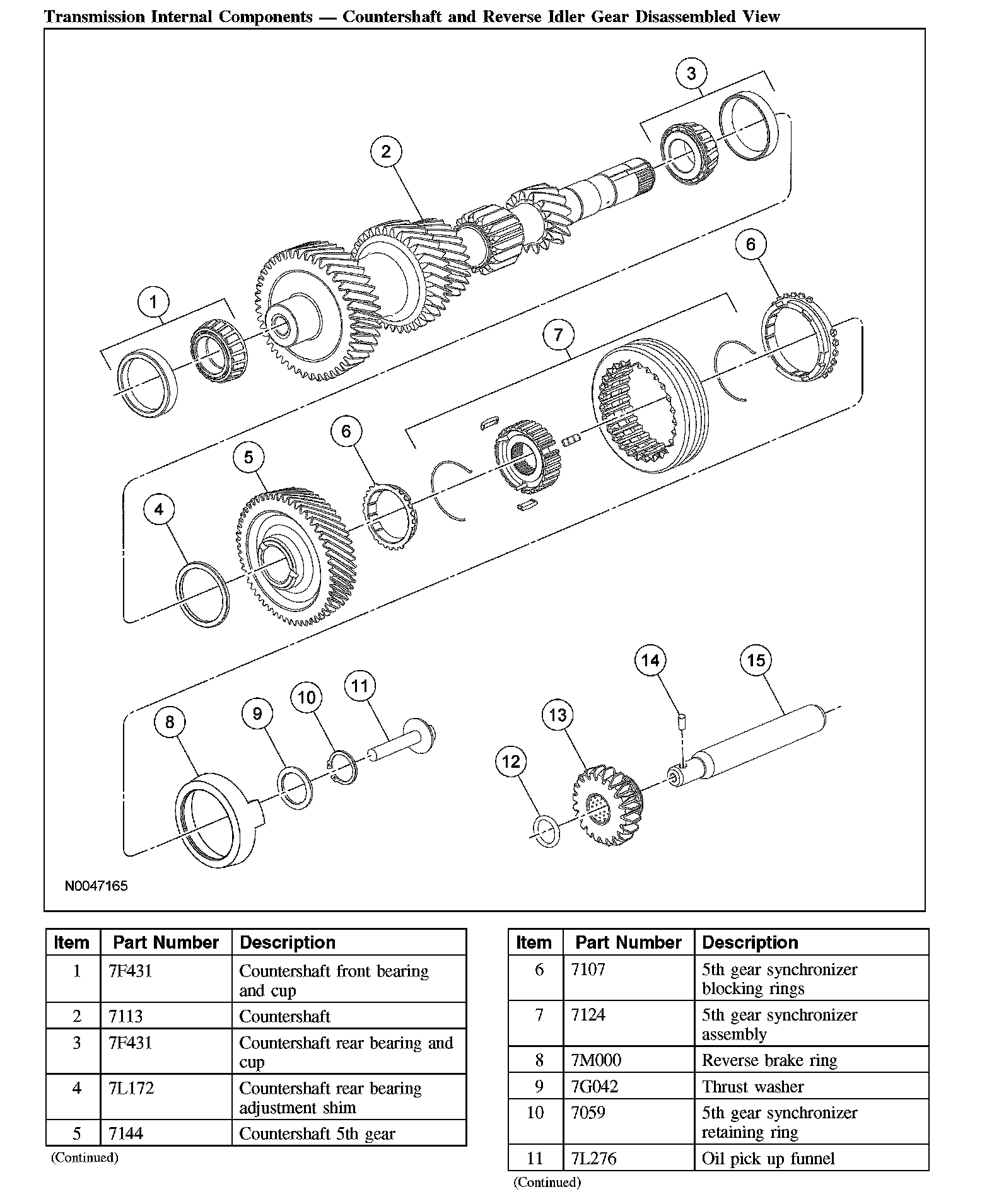

Transmission Internal Components - Countershaft and Reverse Idler Gear Disassembled View (Part 1):

Transmission Internal Components - Countershaft and Reverse Idler Gear Disassembled View (Part 2):

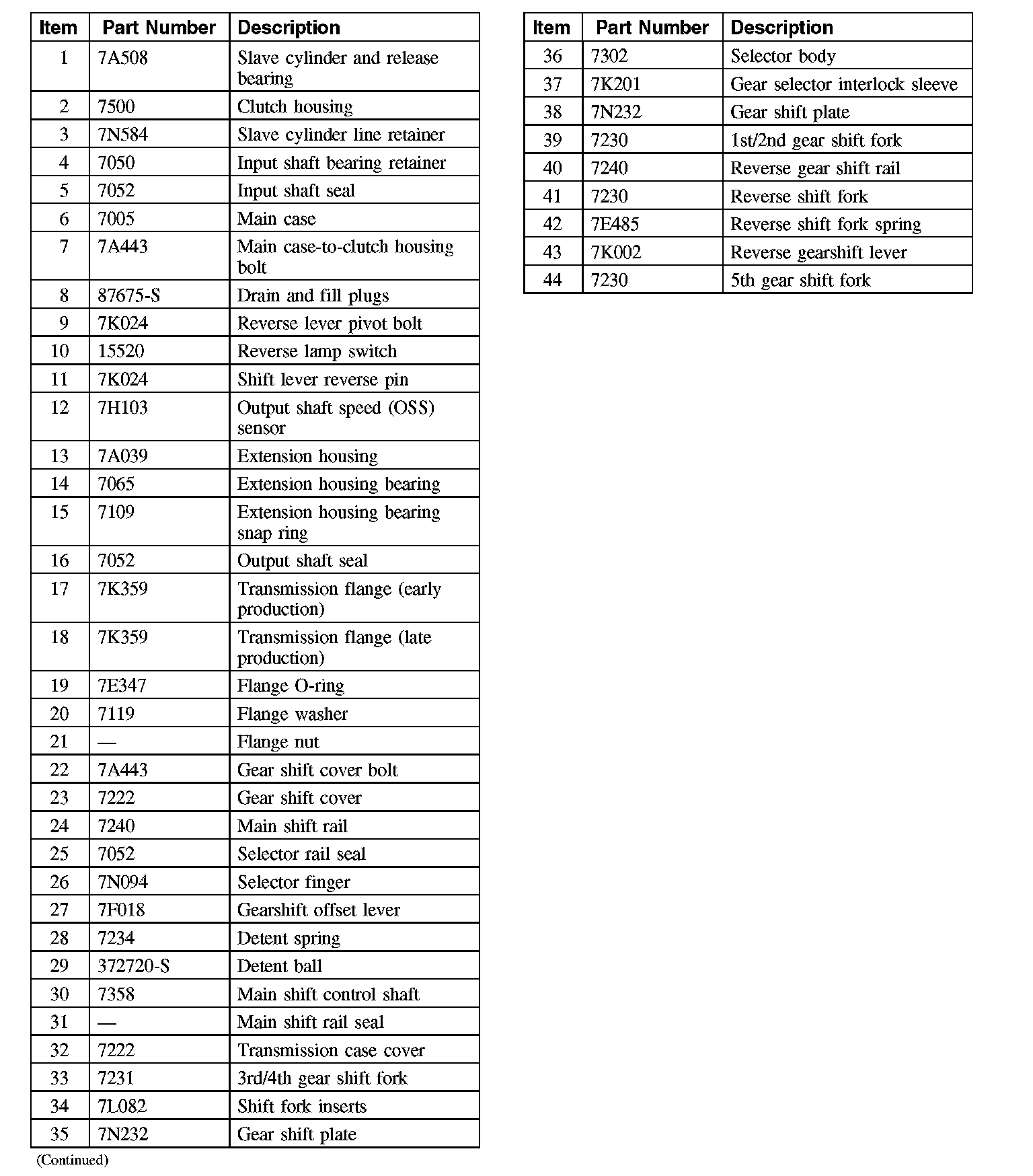

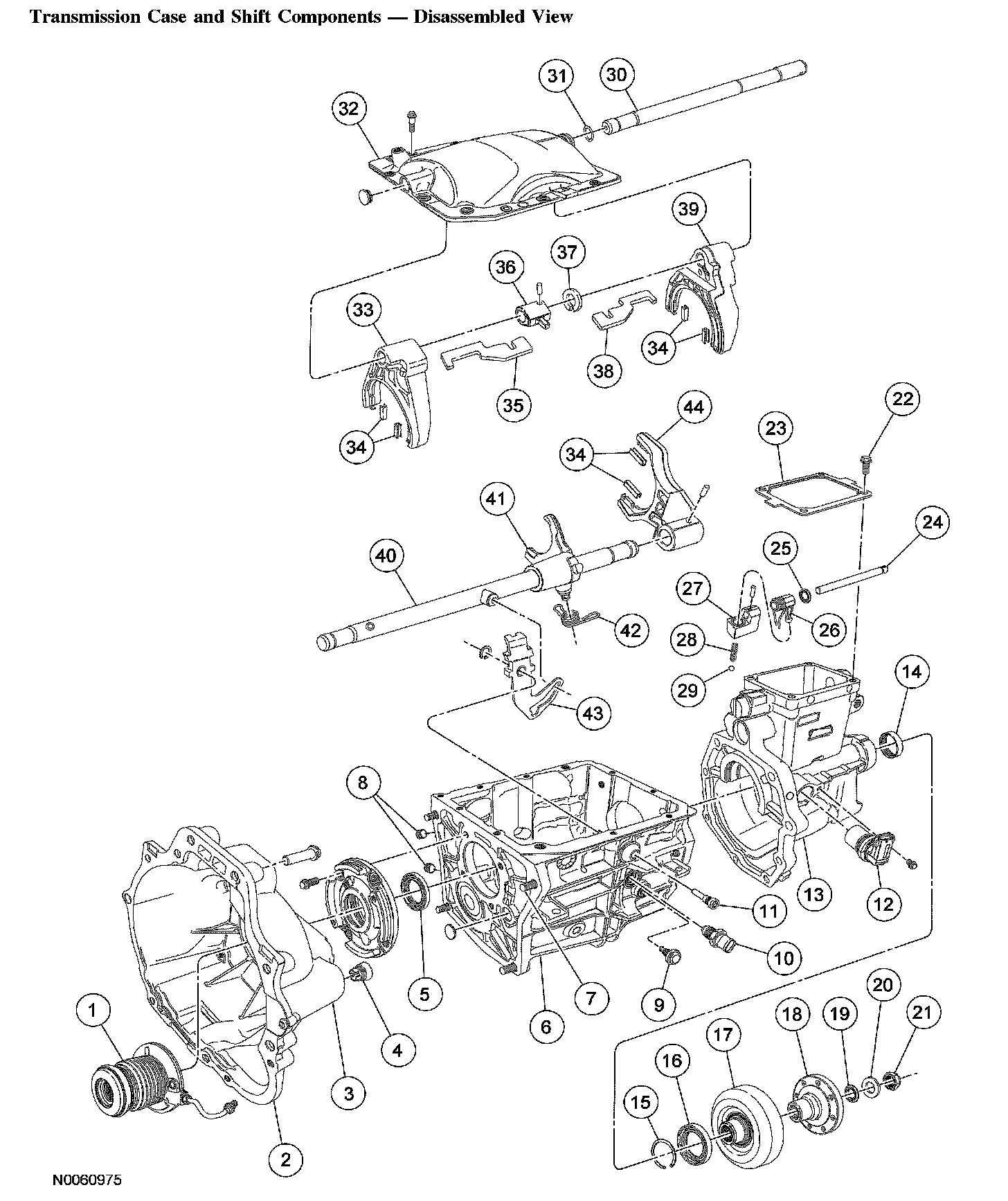

Transmission Case and Shift Components - Disassembled View (Part 1):

Transmission Case and Shift Components - Disassembled View (Part 2):

Transmission Identification
The transmission identification tag is located under the lower left bolt that retains the extension housing to the case.

The T5OD transmission is available for the Mustang 4.0L SOHC.
