Home >> Ford >> 2007 >> Mustang V6-4.0L VIN N >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Routines >> Torque Converter Clutch Operation Concerns 240-242 >> 242, Cycling/Shudder/Chatter

242, Cycling/Shudder/Chatter

Torque Converter Operation Concern: Cycling/Shudder/Chatter

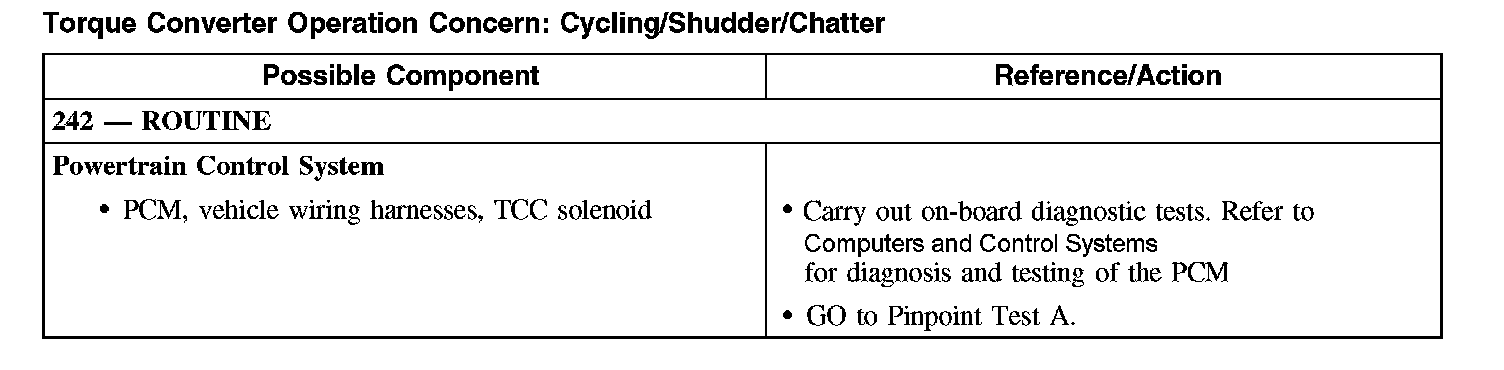

242 Torque Converter Operation Concern: Cycling/Shudder/Chatter (Part 1):

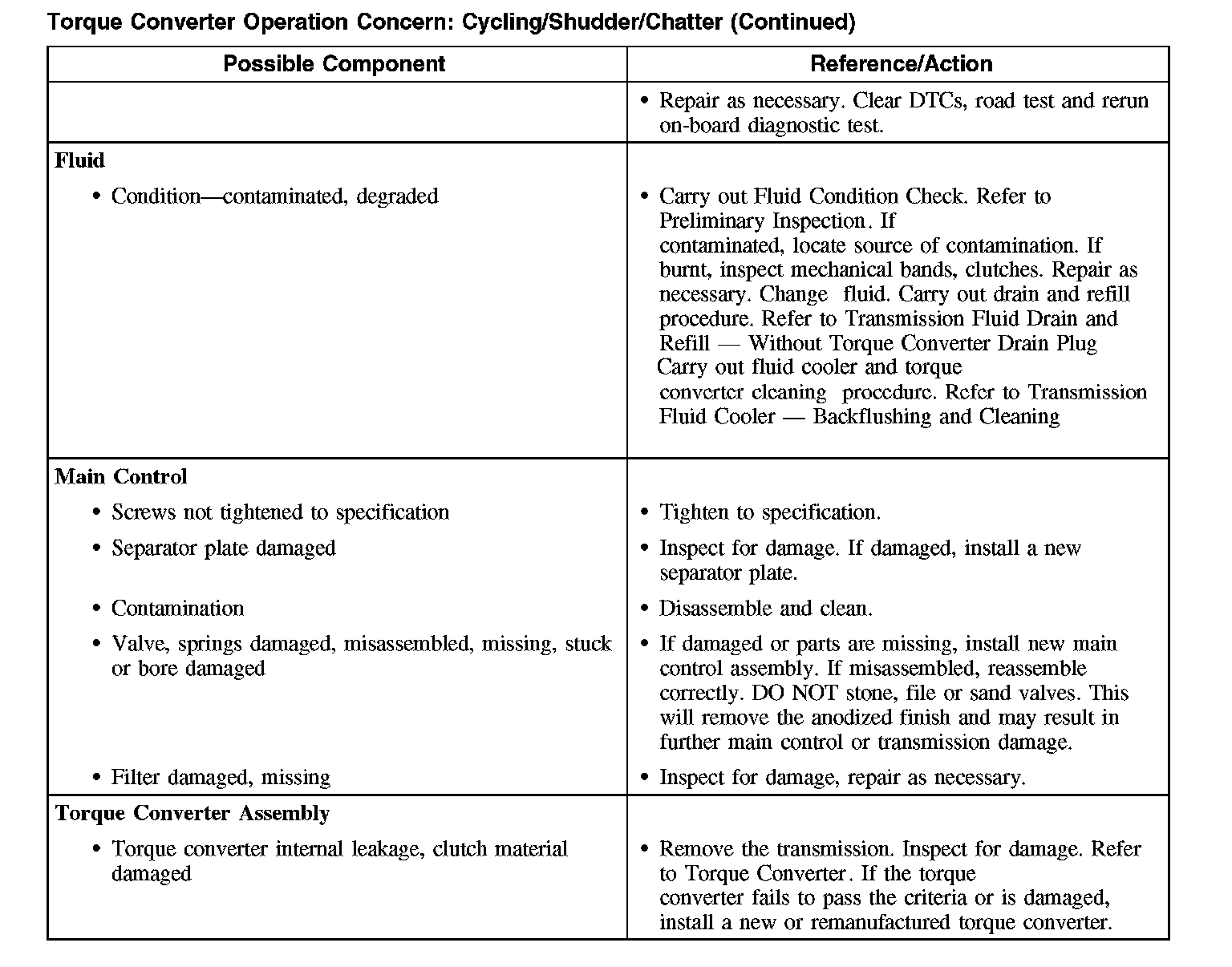

242 Torque Converter Operation Concern: Cycling/Shudder/Chatter (Part 2):
