Suspension - Front Suspension Rattle/Chuckle Sounds
TSB 07-18-209/17/07
4.0L AND 4.6L COUPE - FRONT END NOISE OVER BUMPS
FORD:
2005-2007 Mustang
ISSUE
Some 2005-2007 Mustang Coupe vehicles equipped with 4.0L or 4.6L (excludes GI 500 and convertibles) may exhibit a "loose lumber", rattle, or chuckle sound from the front end over bumps and rough roads.
ACTION
Follow the Service Procedure steps to correct the condition.
SERVICE PROCEDURE
The concern is caused by a body resonance and will not get worse over time nor affect function. A new strut mount has been designed to dampen the vibration.
Replace both Upper Mount Assemblies per Workshop Manual (WSM), Section 204-01.
NOTE
ALIGNMENT IS NOT REQUIRED.
NOTE
DISCARD AND REPLACE ALL FASTENERS.

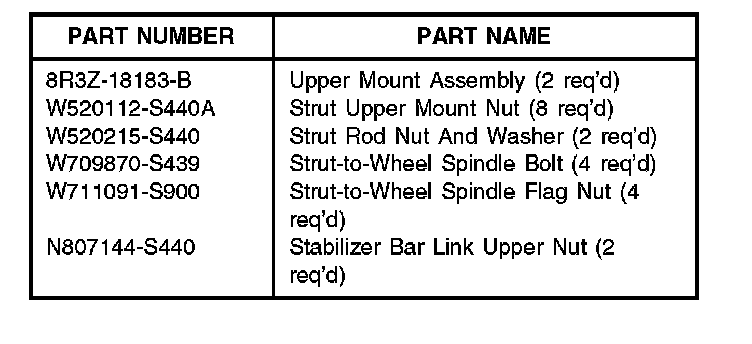

Parts Block
WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage
IMPORTANT: Warranty coverage limits/policies are not altered by a TSB. Warranty coverage limits are determined by the identified causal part.
OPERATION DESCRIPTION TIME
071802A 2005-2007 Mustang 4.0L, 1.2 Hrs.
4.6L: Replace Both Upper
Mount Assemblies,
Includes Time To Remove
And Install Strut
Assemblies (Do Not Use
With 18124A, 18124AT,
5310A, 5310AT)
DEALER CODING
CONDITION
BASIC PART NO. CODE
18183 D4
