Wiper/Washer Switch

WIPER/WASHER SWITCH

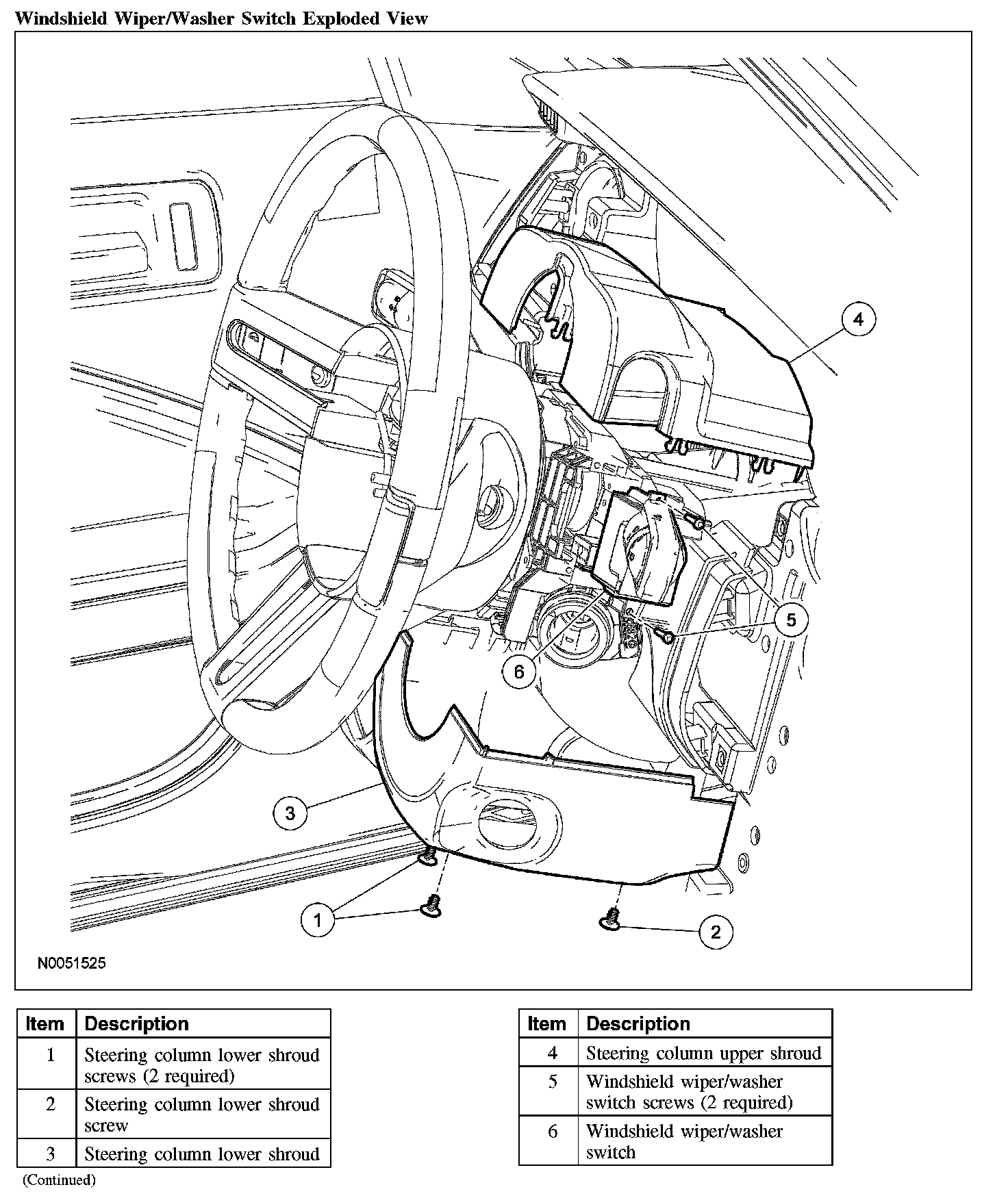

Windshield Wiper/Washer Switch Exploded View:






Removal and Installation
1. Remove the 3 screws and the steering column upper and lower shrouds.
2. Remove the 2 windshield wiper/washer switch screws.
3. Disconnect the electrical connector and remove the windshield wiper/washer switch.
4. To install, reverse the removal procedure.
