Turn Signal Switch: Service and Repair

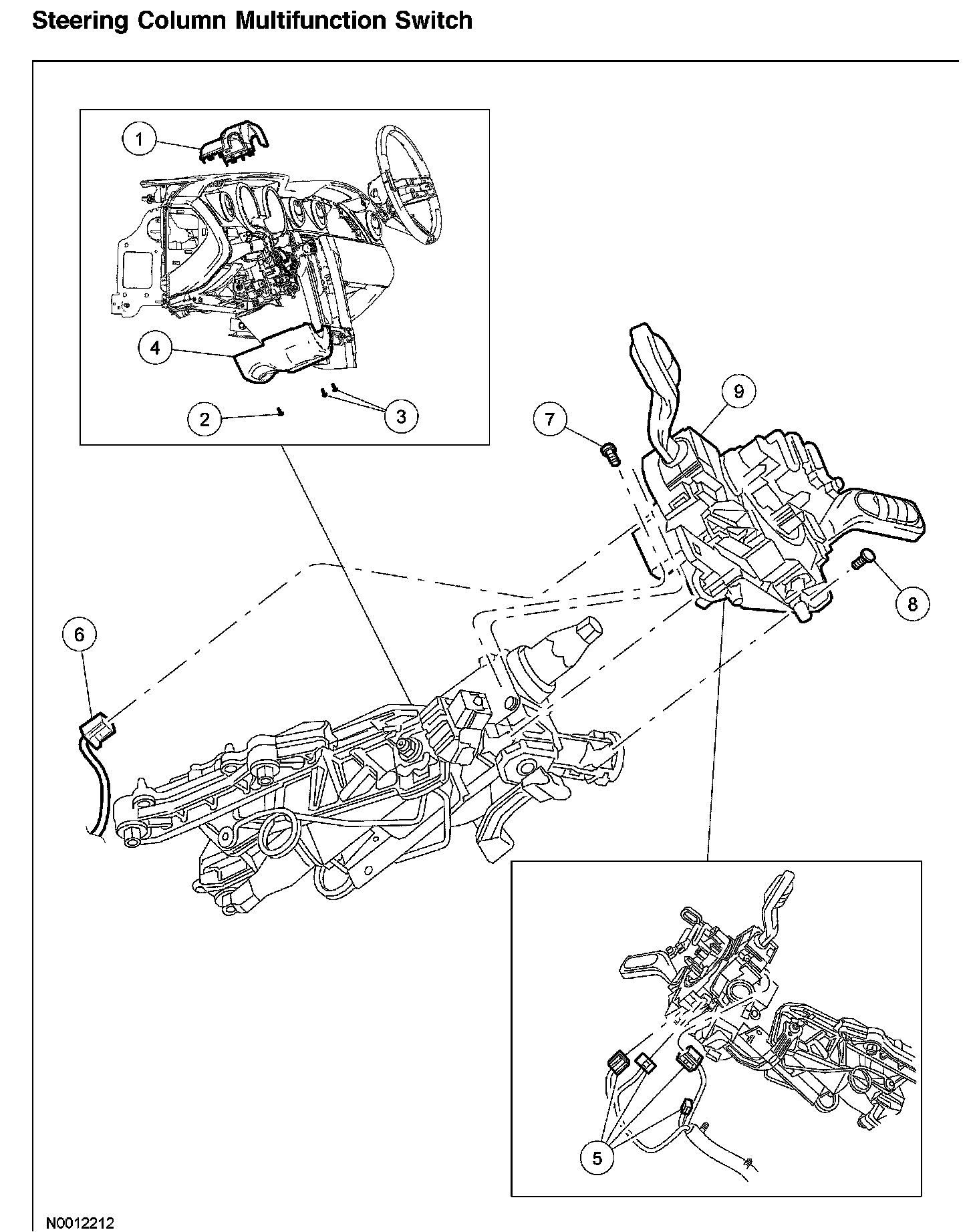

Steering Column Multifunction Switch

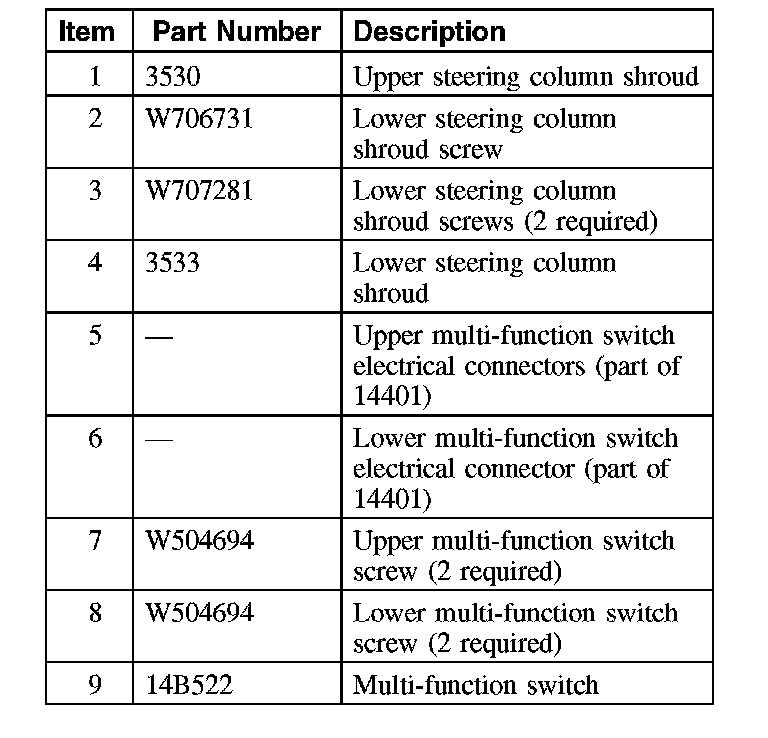

Steering Column Multifunction Switch (Part 1):

Steering Column Multifunction Switch (Part 2):

Removal and Installation
1. Remove the steering wheel.
2. Remove the upper steering column shroud by carefully pressing the sides inward.
3. Remove the 3 lower steering column shroud screws and the shroud.
4. Disconnect the 4 lower multi-function switch electrical connectors.
5. Disconnect the upper multi-function switch electrical connector.
6. Remove the 4 screws and the multi-function switch.
7. To install, reverse the removal procedure.
