Backup Lamp Switch: Service and Repair

REVERSING LAMP SWITCH

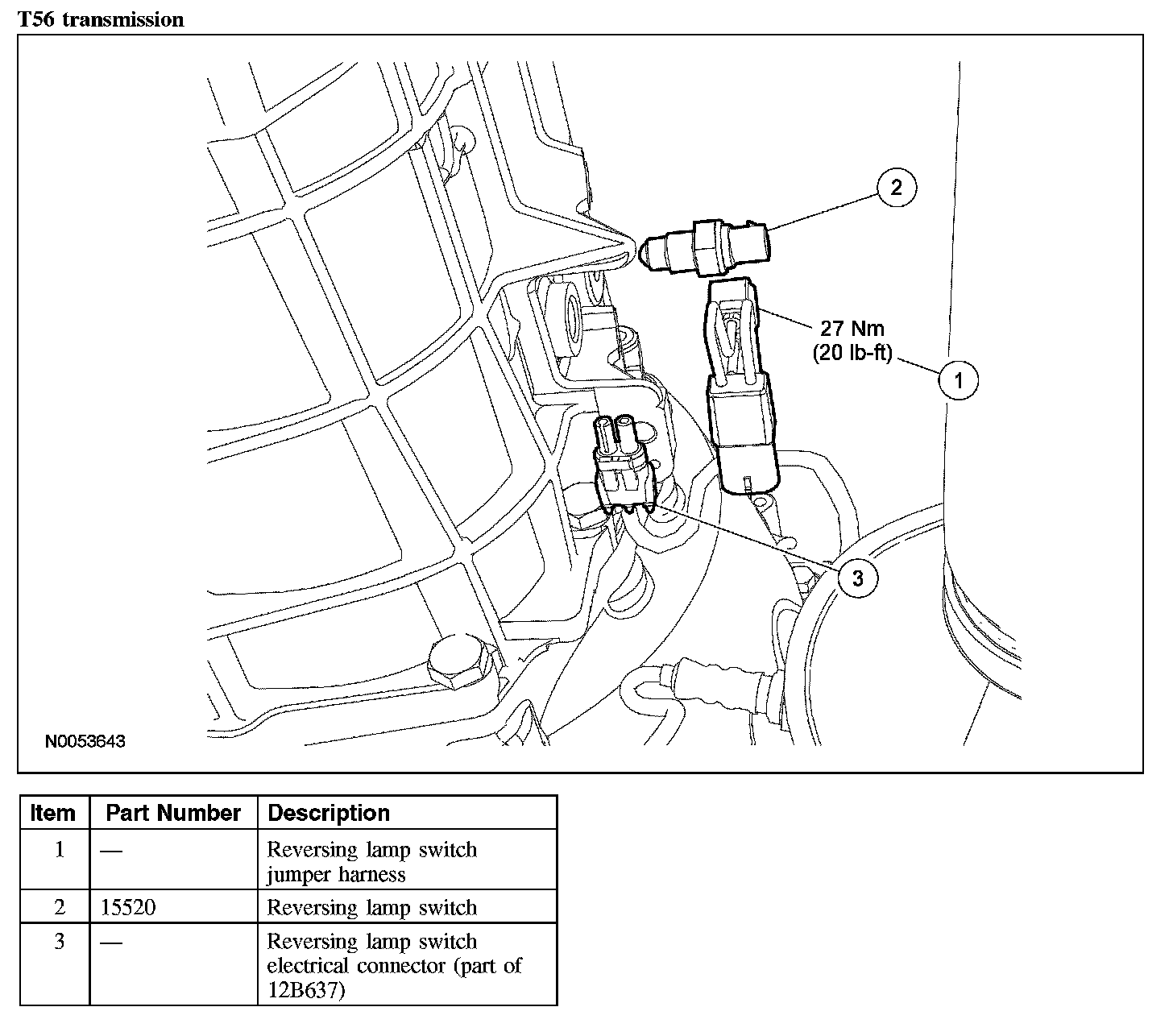

T56 Transmission:

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the electrical connector and remove the reversing lamp switch.

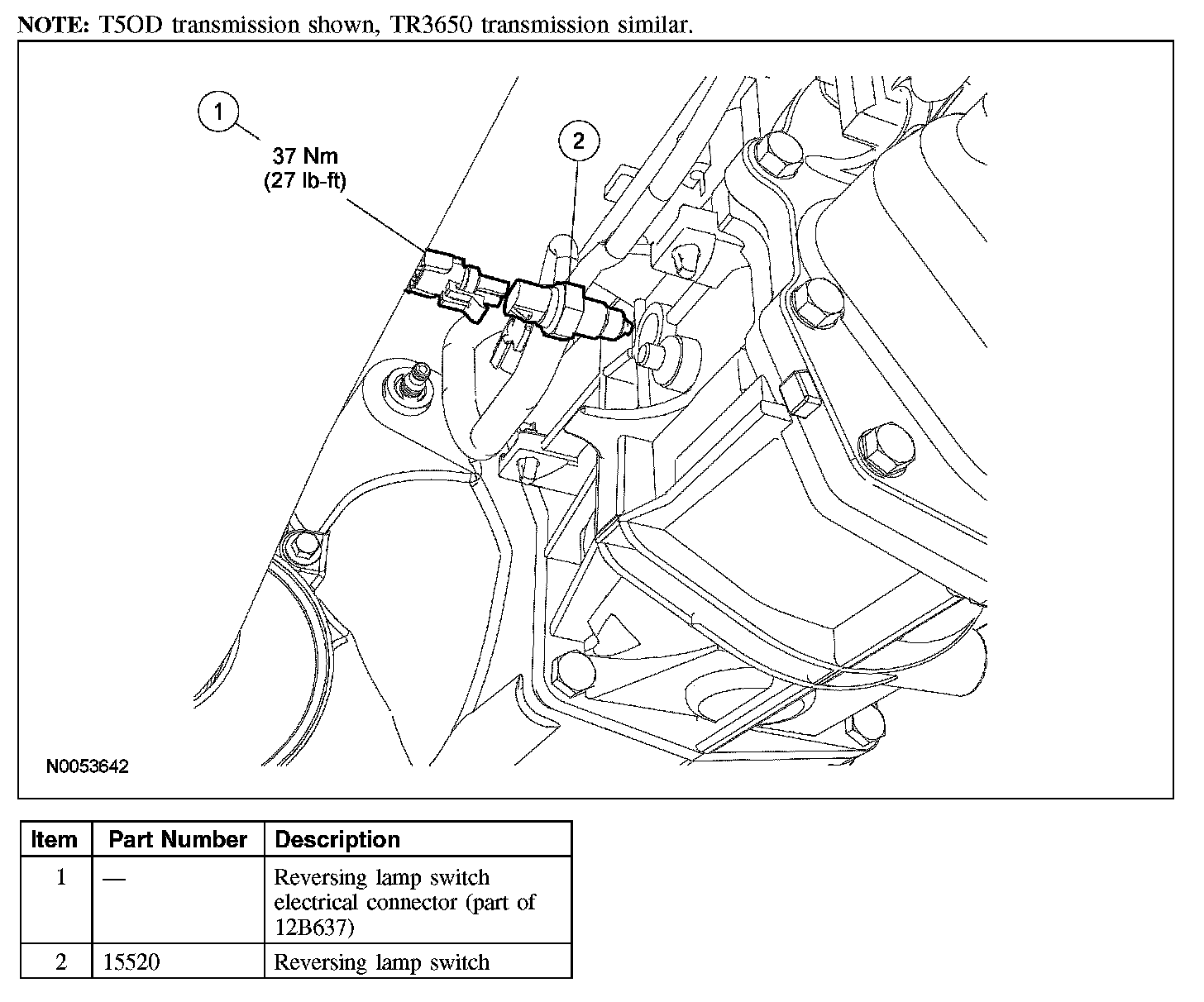

- To install, tighten to 37 Nm (27 lb-ft) (T5OD transmission).
- To install, tighten to 27 Nm (20 lb-ft) (TR3650 or T56 transmission).

3. To install, reverse the removal procedure.
