Home >> Ford >> 2007 >> Mustang V6-4.0L VIN N >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Backup Lamp Switch >> Locations >> Reversing Lamps Switch

Reversing Lamps Switch

View 151-11 (Manual Transmission - T5):

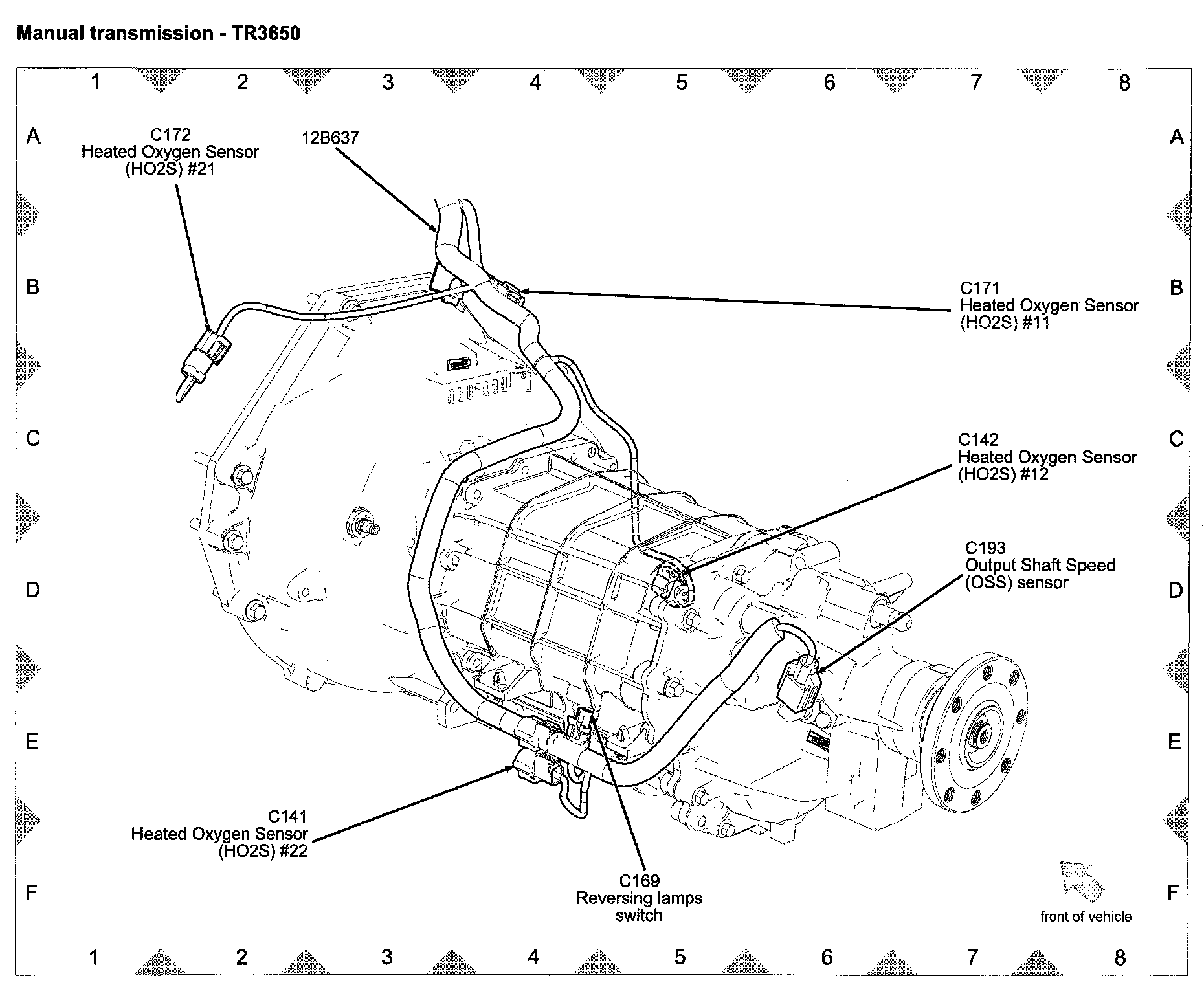

View 151-12 (Manual Transmission - TR3650):
