Brake Switch (Cruise Control): Service and Repair

SPEED CONTROL DEACTIVATOR SWITCH

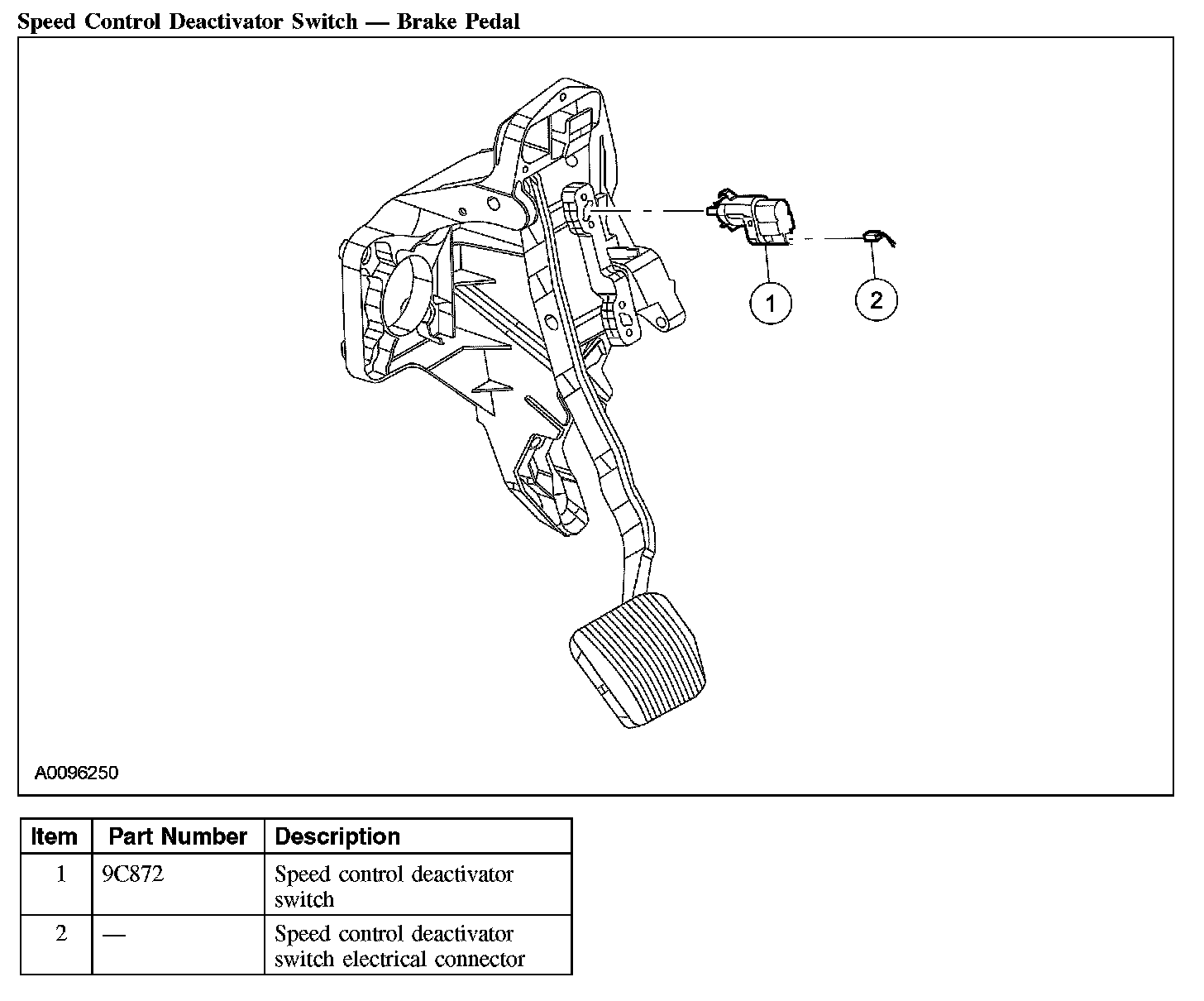

Speed Control Deactivator Switch - Brake Pedal:

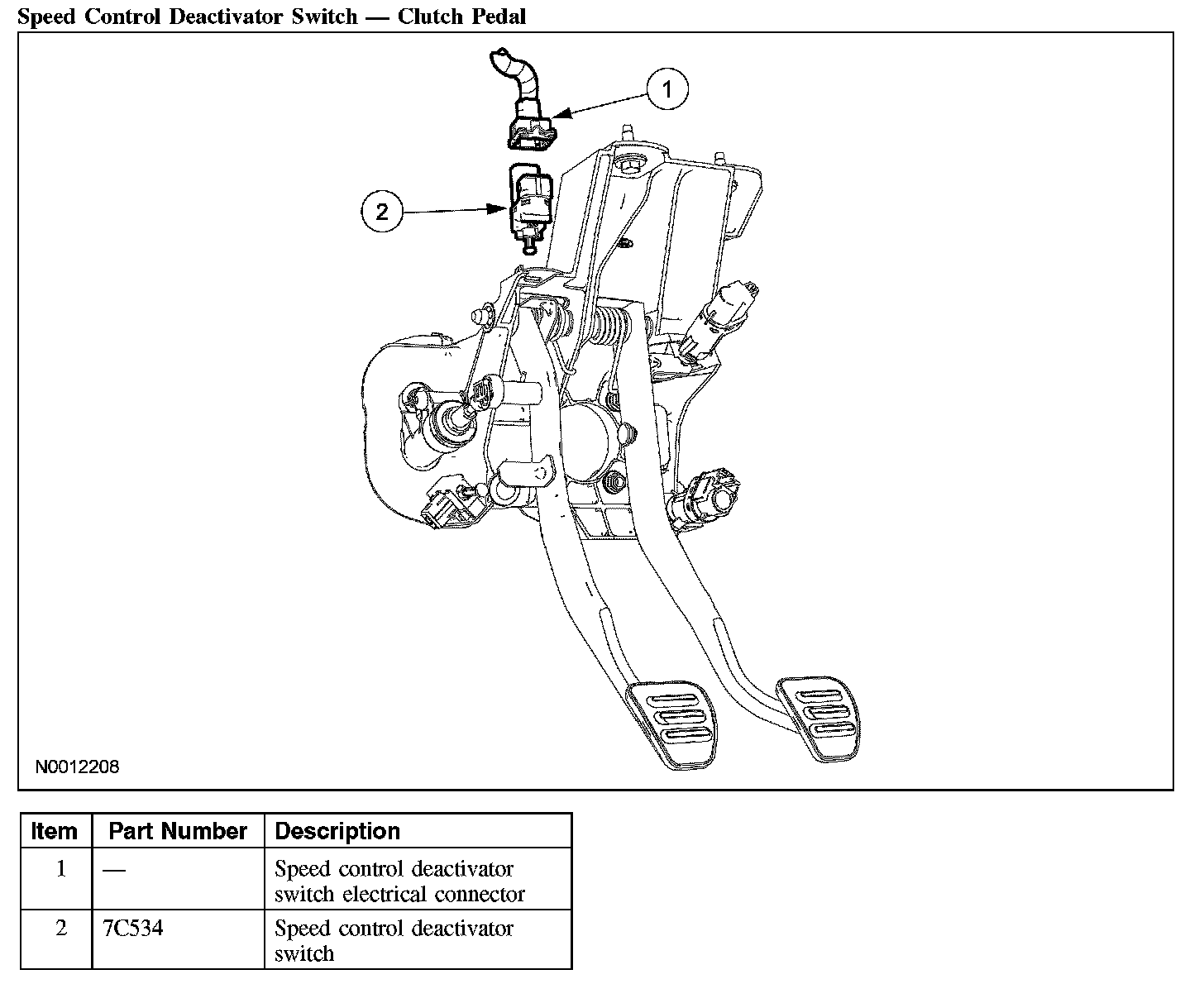

Speed Control Deactivator Switch - Clutch Pedal:

Removal and Installation

CAUTION: Do not service the brake pedal, brake booster, or master cylinder without first removing the stoplamp switch. Do not install the stoplamp switch without the brake pedal arm secured to the brake booster push rod. Do not press or pull on the brake pedal when installing or removing the stoplamp switch otherwise misadjustment or damage to the stoplamp switch could occur.

NOTE: This procedure is for both speed control deactivator switches.

1. CAUTION: Do not press the pedal when removing or installing the speed control deactivator switch, as the switch will be damaged.

Remove the speed control deactivator switch.
- Disconnect the electrical connector.
- Rotate the speed control deactivator switch counterclockwise 45 degrees and remove the deactivator switch.

2. NOTE: When installing the speed control deactivator switch, it is automatically self-adjusting to the proper position. Do not pull up or push down on the pedal during installation. Initial installation of the speed control deactivator switch allows for one adjustment. If additional adjustments are necessary, install a new switch.

To install, reverse the removal procedure.
