Wheel Speed Sensor Ring - Front

Wheel Speed Sensor Ring - Front

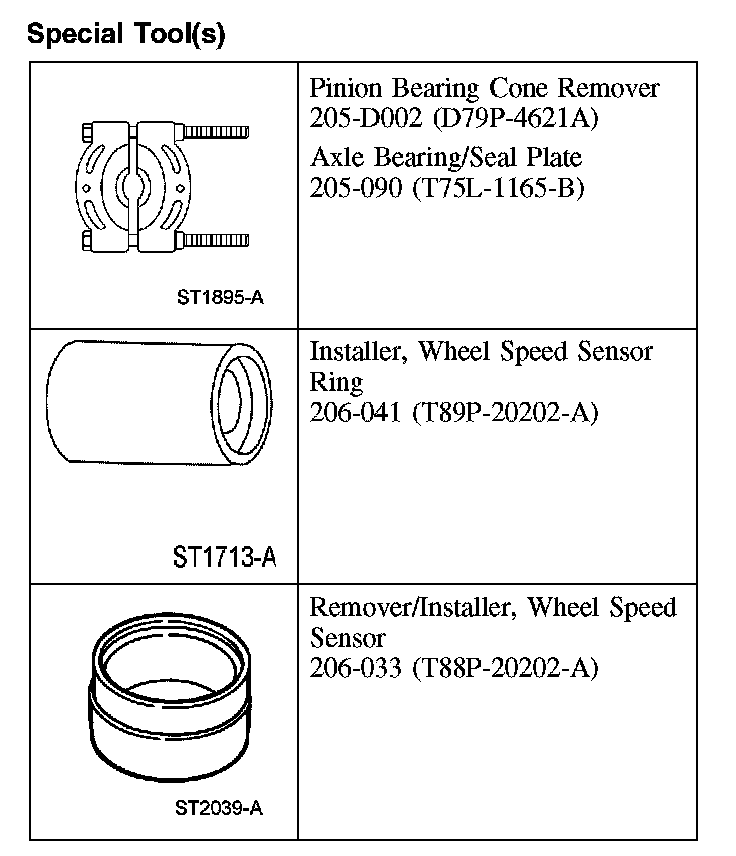

Special Tool(s):

Removal
1. Remove the front hub and bearing assembly.

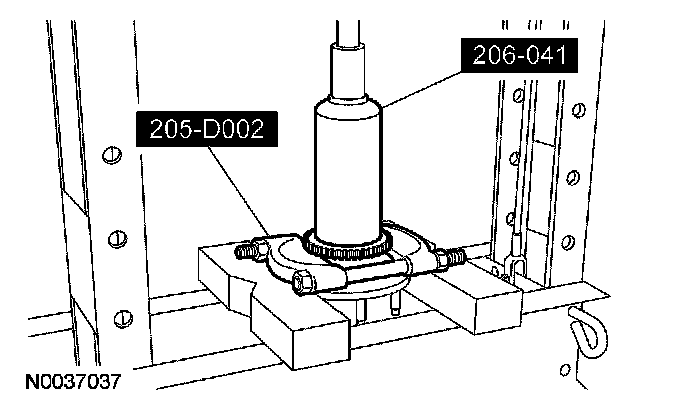

2. Using the special tools, remove the front wheel speed sensor ring from the front hub.





Installation

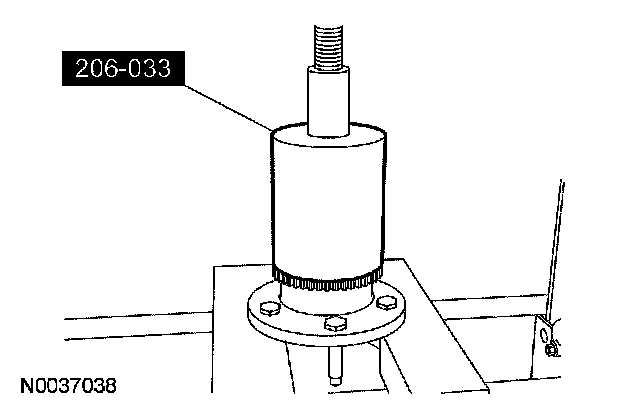

1. Using the special tool, install the front wheel speed sensor ring to the front hub.





2. Install the front hub and bearing assembly.
