Wheel Speed Sensor - Front

Wheel Speed Sensor - Front

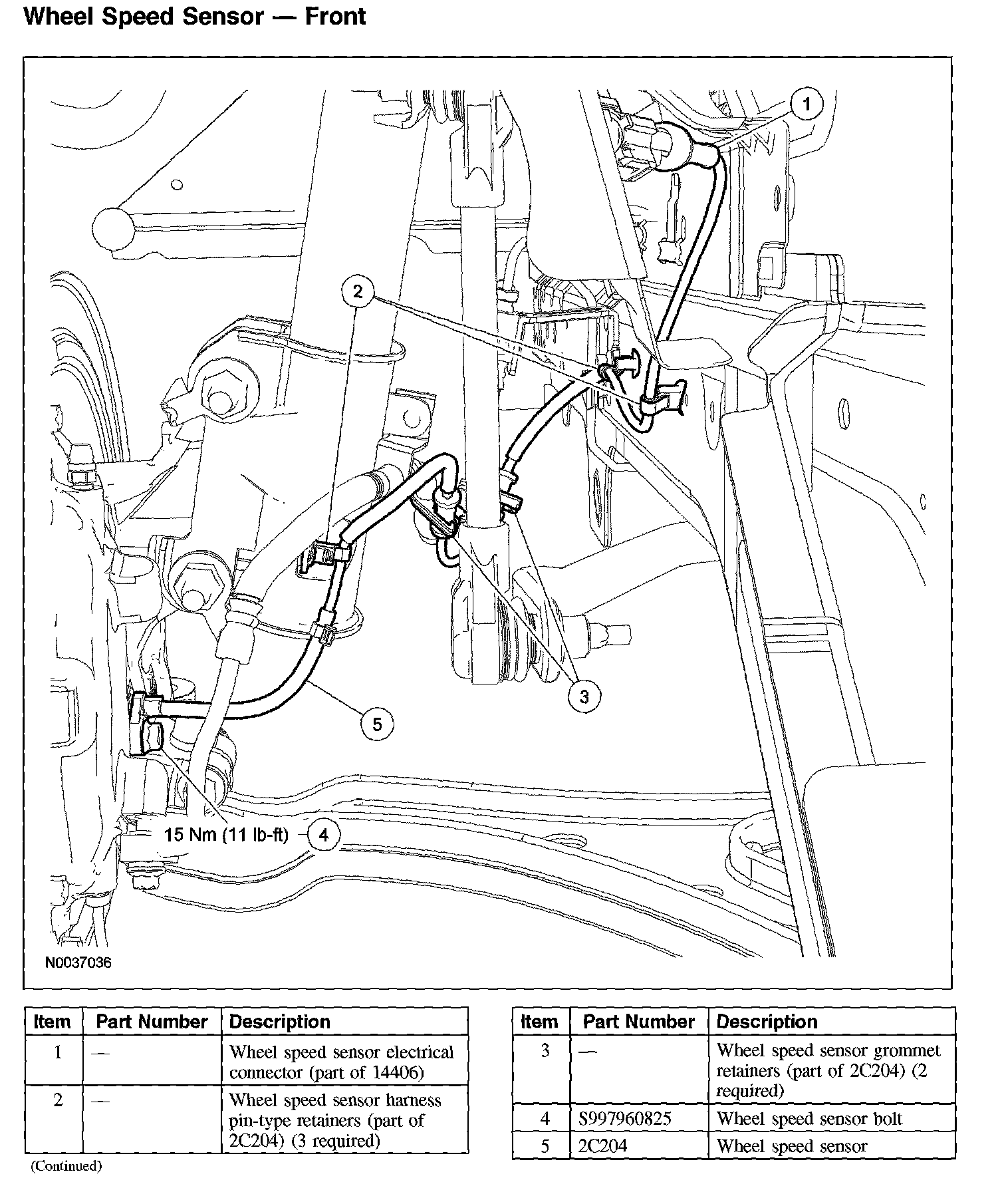

Wheel Speed Sensor - Front:

Removal and Installation
1. Disconnect the battery ground cable.
2. With the vehicle in NEUTRAL, position it on a hoist.
3. Disconnect the wheel speed sensor electrical connector.
4. Disconnect the 3 wheel speed sensor harness pin-type retainers.
5. Disconnect the 2 wheel speed sensor grommet retainers from the brake hose clips.
6. Remove the wheel speed sensor bolt.
- To install, tighten to 15 Nm (11 ft. lbs.).
7. Remove the wheel speed sensor and harness assembly.
8. To install, reverse the removal procedure.
