Bussed Electrical Center (BEC) / Power Distribution Box

ALLDATA Editor's Note: Ford identifies this one component by 2 different names. Users have reported success comparing these images to determine Application/ID or Location of Fuses and Relays with the Power Distribution Box / Bussed Electrical Center (BEC).

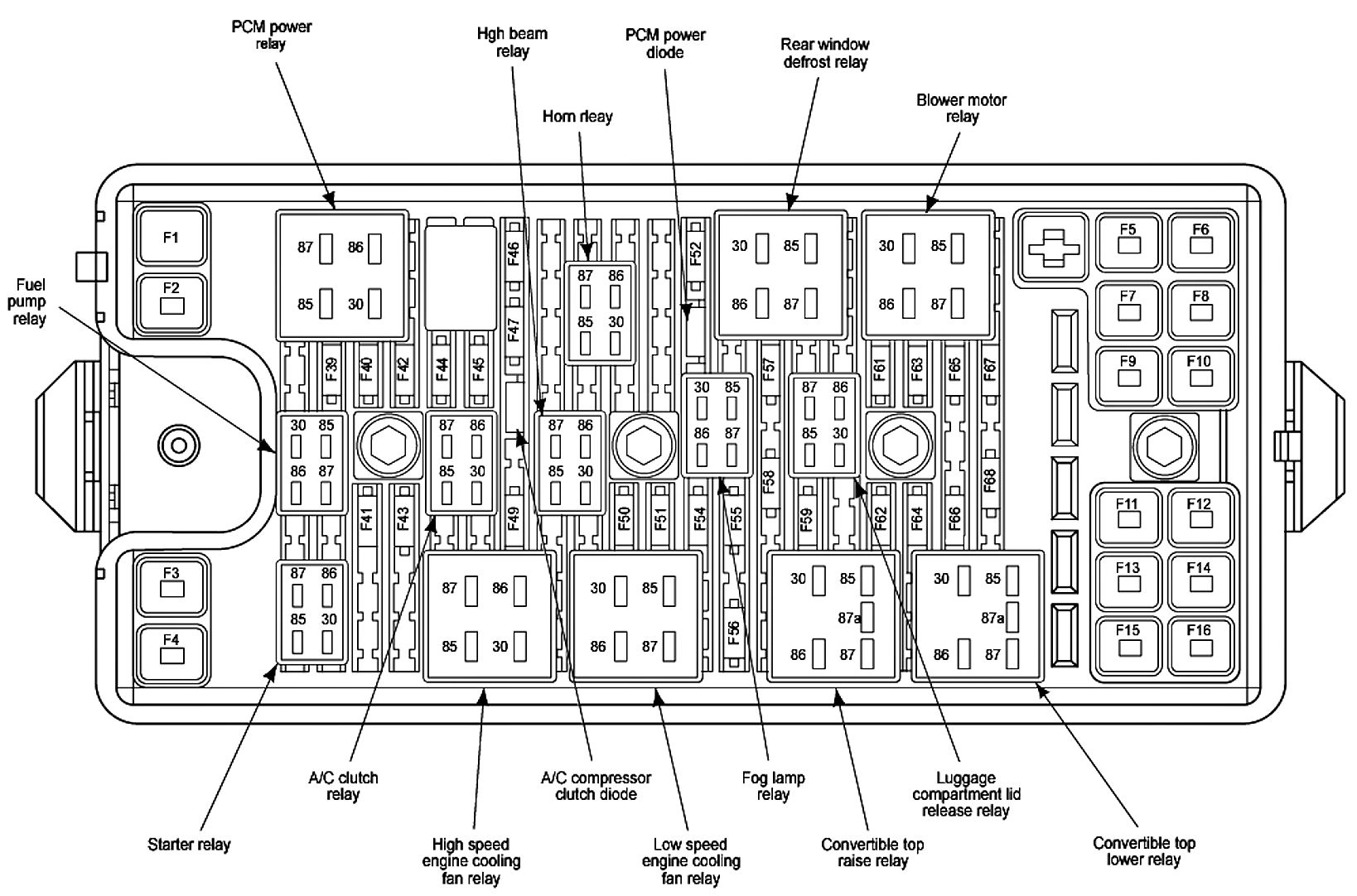

Bussed Electrical Center (BEC) / Power Distribution Box:





Bussed Electrical Center (BEC) / Power Distribution Box:

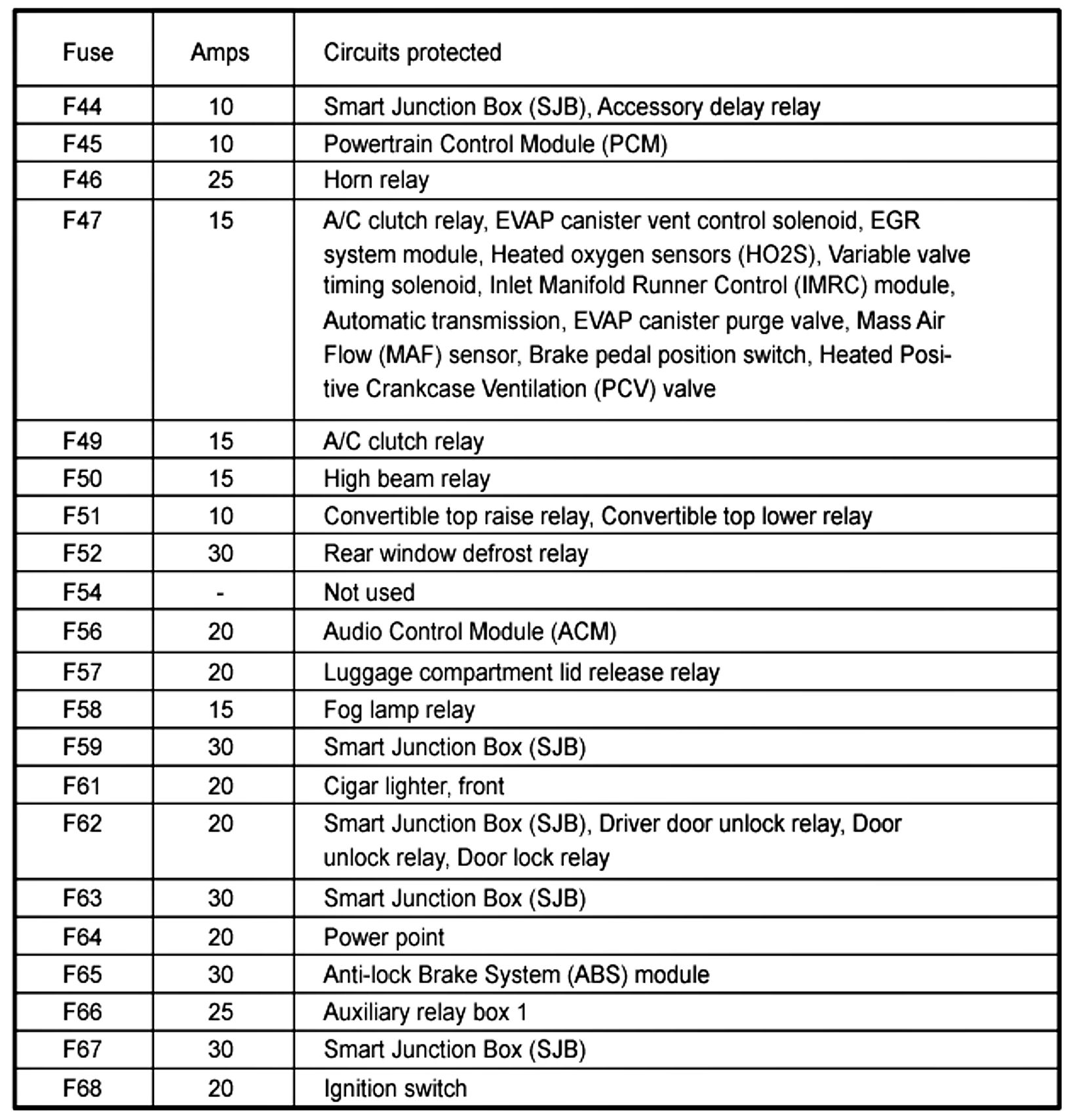

Fuse:

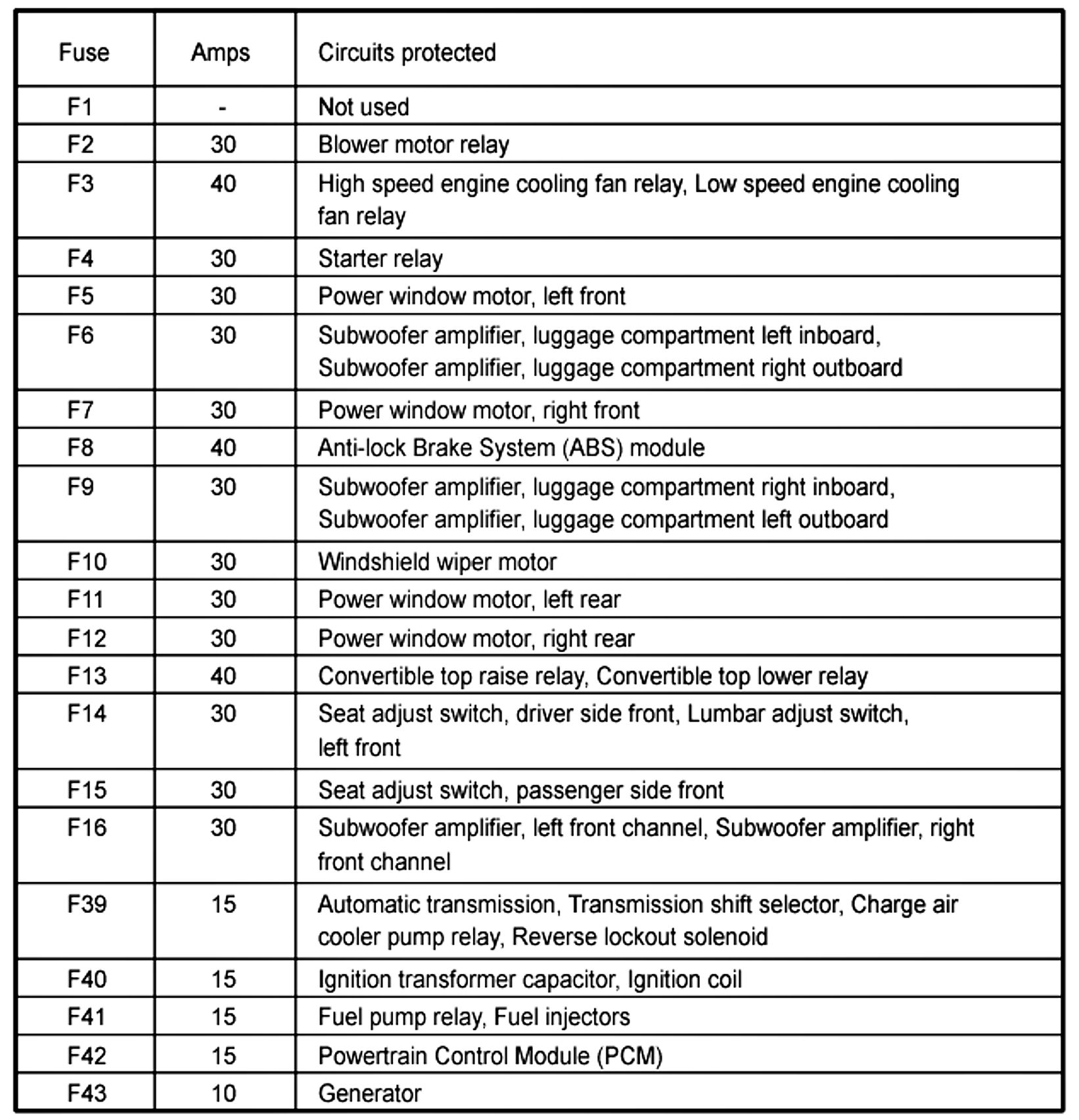

Fuse:
