Electronic Brake Control Module: Service and Repair

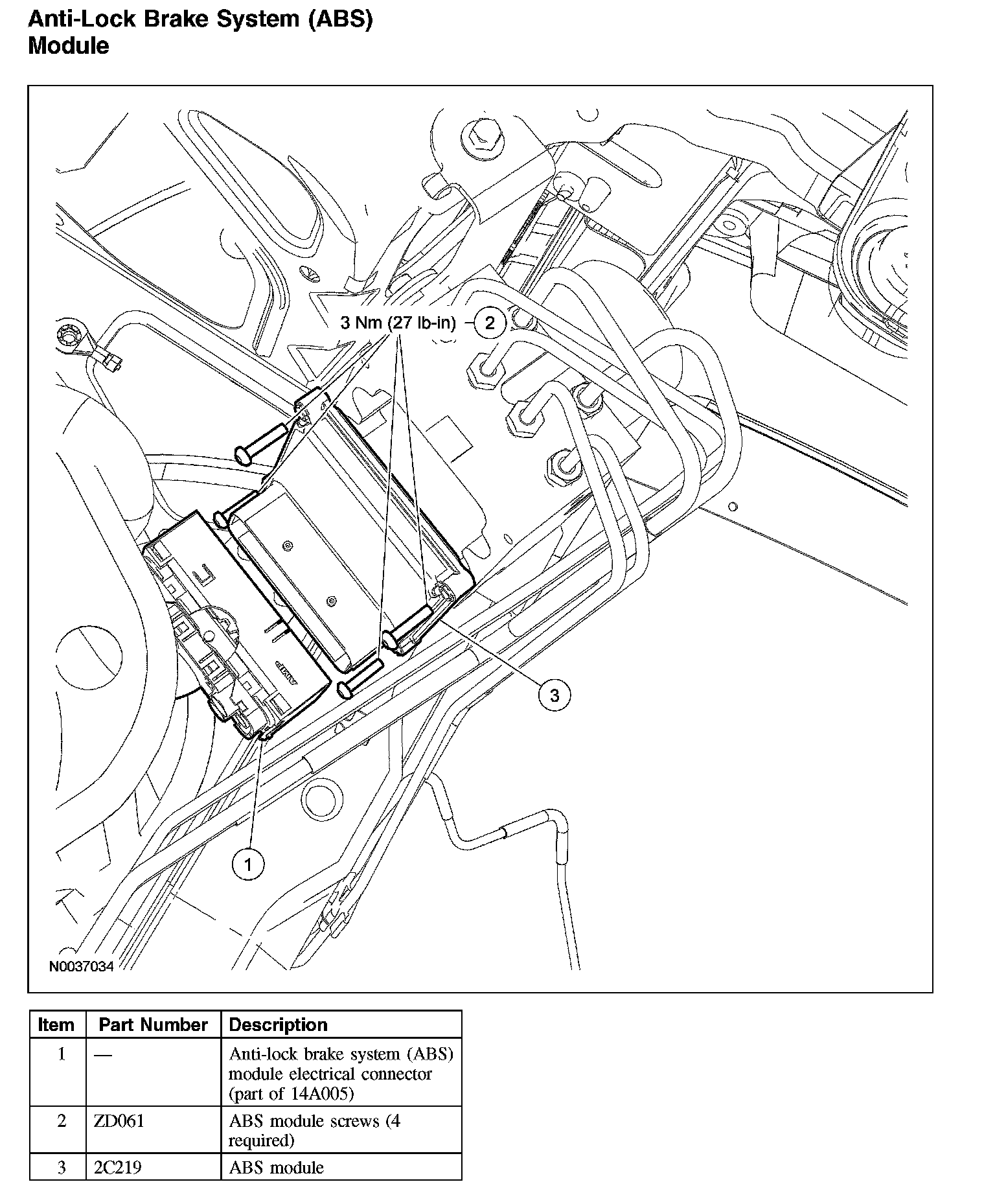

Anti-Lock Brake System (ABS) ModuleAnti-Lock Brake System (ABS) Module:
Removal and Installation
CAUTION: Electronic modules are sensitive to electrical charges. The anti-lock brake system (ABS) module can be damaged if exposed to these charges.
1. Disconnect the battery ground cable.
2. Remove the air cleaner assembly.
3. Disconnect the ABS module electrical connector.
4. Remove the 4 screws and the ABS module.

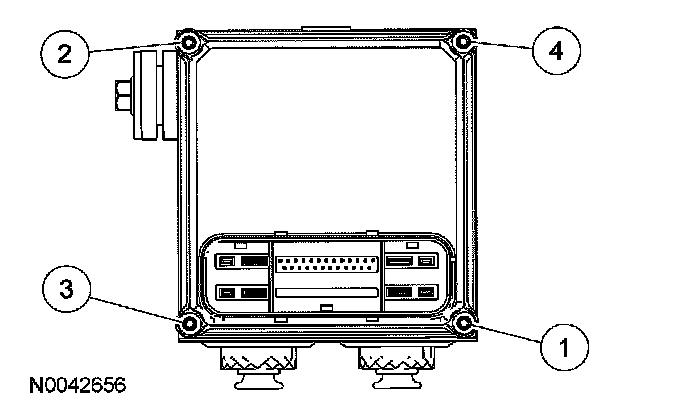

- To install, tighten to 3 Nm (27 inch lbs.) in the sequence shown.
5. To install, reverse the removal procedure.
