Quick Connect Coupling

QUICK CONNECT COUPLING

Disconnect - Type I

WARNING:
- Do not carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable vapors are always present and can ignite. Failure to follow these instructions can result in personal injury.
- Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions can result in personal injury.

CAUTION:
- If the liquid or vapor tube is damaged (torn, holes or delaminated), the affected tube assembly must be replaced with a new tube assembly. Do not use aftermarket sleeving. Do not re-adhere loose sleeving material.
- When reusing liquid or vapor tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube. Apply clean engine oil to the end of the tube before inserting the tube into the connector.
- Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is therefore essential that absolute cleanliness is observed when working with these components. Always install blanking plugs to any open orifices or tubes.

1. If servicing a liquid fuel tube, release the fuel system pressure.
2. Disconnect the battery ground cable.

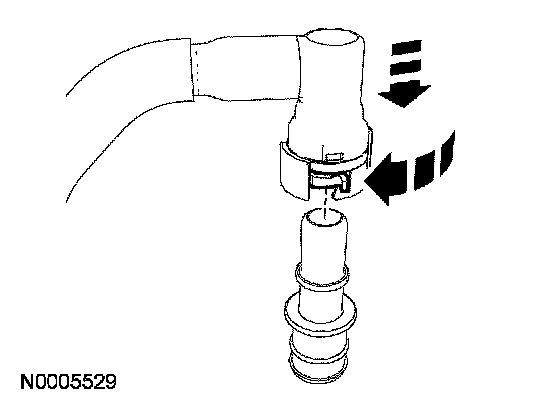

3. Disconnect the quick connect coupling from the tube.
- Press the quick connect coupling release tab and pull the tube to disconnect.

Connect - Type I







1. CAUTION: Make sure the tube clicks into place upon installation. To make sure that the tube is fully seated, pull on the tube.

NOTE: Apply clean engine oil to O-ring seals.

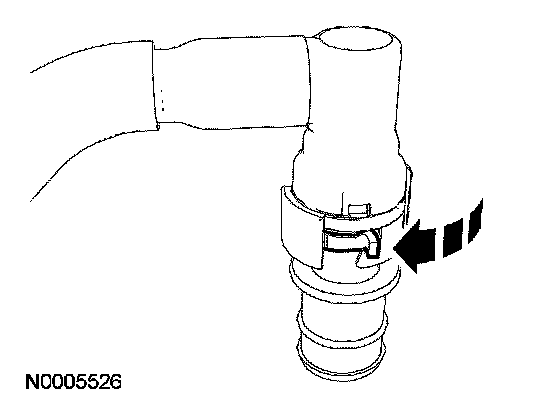

Install the quick connect coupling onto the tube until it is fully seated.

Disconnect - Type II

WARNING:
- Do not carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable vapors are always present and can ignite. Failure to follow these instructions can result in personal injury.
- Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions can result in personal injury.

CAUTION:
- If the liquid or vapor tube is damaged (torn, holes or delaminated), the affected tube assembly must be replaced with a new tube assembly. Do not use aftermarket sleeving. Do not re-adhere loose sleeving material.
- When reusing liquid or vapor tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube. Apply clean engine oil to the end of the tube before inserting the tube into the connector.
- Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is therefore essential that absolute cleanliness is observed when working with these components. Always install blanking plugs to any open orifices or tubes.

1. Disconnect the battery ground cable.

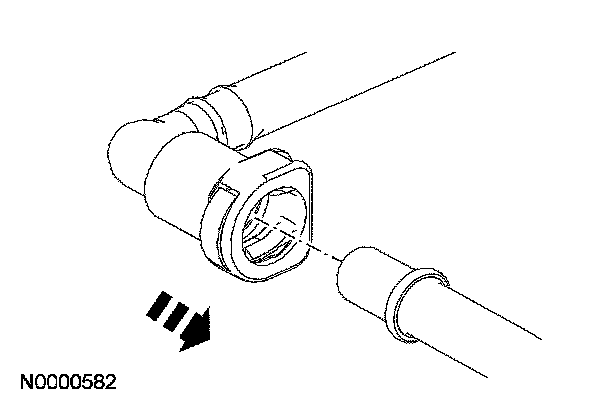

2. Release the lock tab on the quick connect coupling.







3. Separate the quick connect coupling from the fitting.

Connect - Type II







1. CAUTION: Make sure the tube clicks into place upon installation. To make sure that the tube is fully seated, pull on the tube.

NOTE: Apply clean engine oil to O-ring seals.

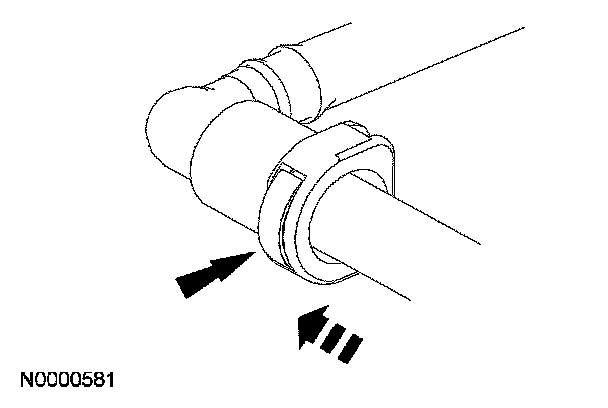

Release the lock tab and install the quick connect coupling onto the fitting.







2. Apply lock tab into the latched position.

Disconnect - Type III

WARNING:
- Do not carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable vapors are always present and can ignite. Failure to follow these instructions can result in personal injury.
- Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions can result in personal injury.

CAUTION:
- If the liquid or vapor tube is damaged (torn, holes or delaminated), the affected tube assembly must be replaced with a new tube assembly. Do not use aftermarket sleeving. Do not re-adhere loose sleeving material.
- When reusing liquid or vapor tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube. Apply clean engine oil to the end of the tube before inserting the tube into the connector.
- Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is therefore essential that absolute cleanliness is observed when working with these components. Always install blanking plugs to any open orifices or tubes.

1. If servicing a liquid fuel tube, release the fuel system pressure.
2. Disconnect the battery ground cable.

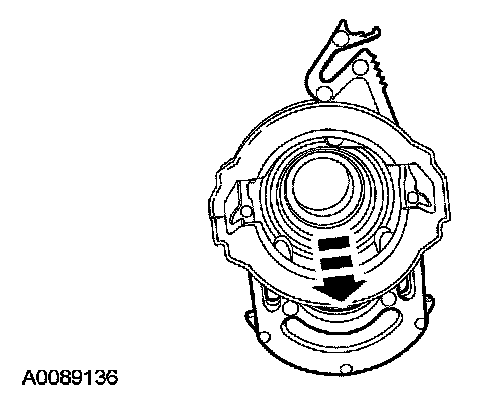

3. Release the quick connect coupling primary lock tab.







4. Rotate the primary locking tab to the fully opened position and squeeze the secondary locking tabs to release the locking mechanism.







5. Push the locking mechanism outward and release the tube.

Connect - Type III

1. NOTE: Apply clean engine oil to O-ring seals.

Install the tube into the quick connect coupling until it is fully seated.







2. CAUTION: Make sure the retainer clip clicks into place when installing.

Depress the retainer clip until it is flush with the quick connect coupler housing and it is fully seated on the tube.







3. CAUTION: To make sure that the tube is fully seated, pull on the tube.

Rotate the primary locking tab on the retainer clip to the closed position.
