Test K: No Power To The Scan Tool

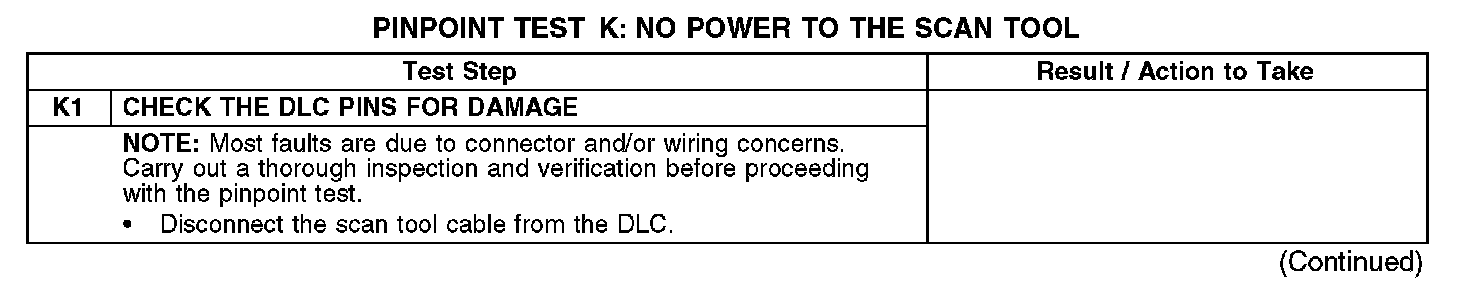

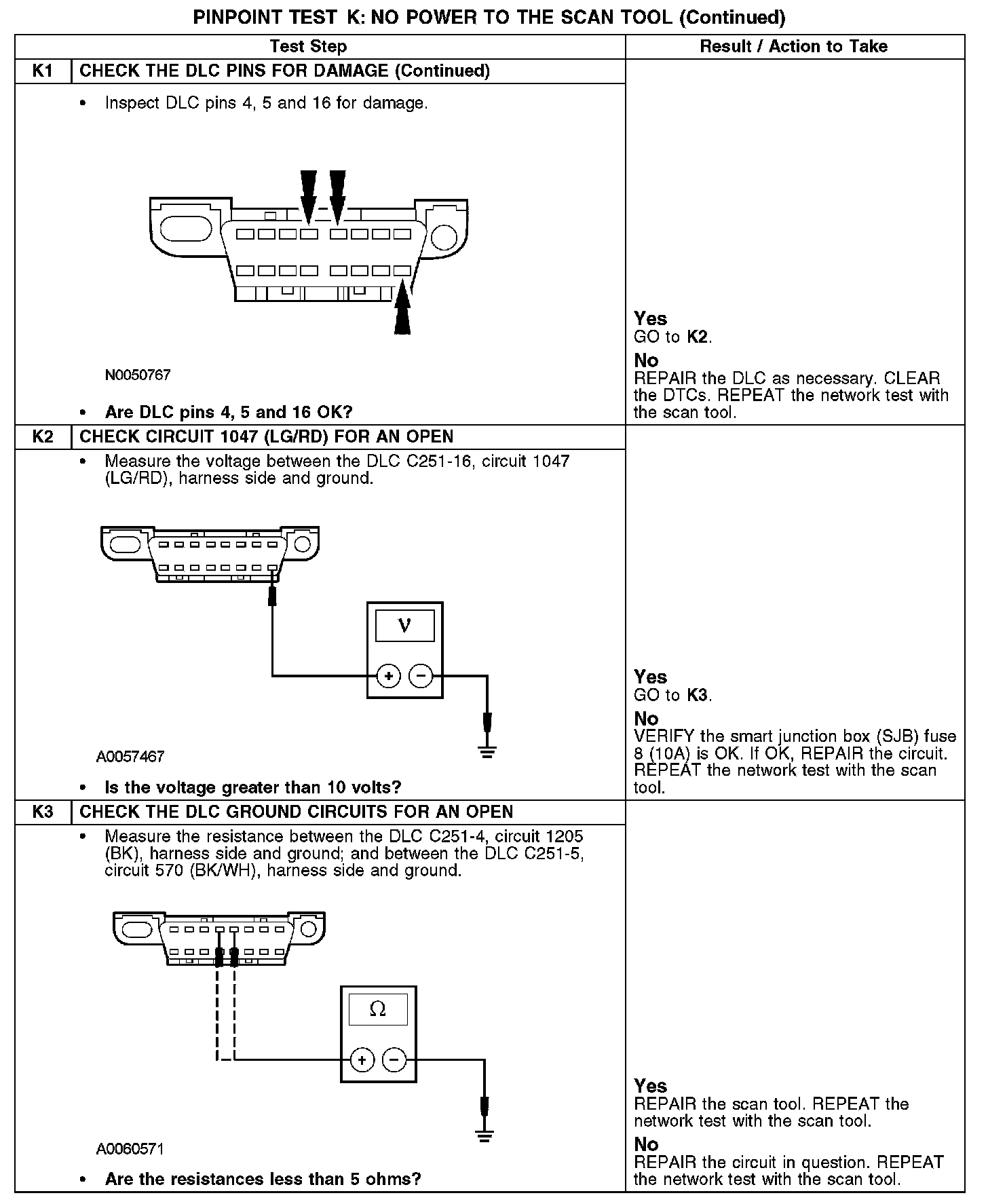

PINPOINT TEST K: NO POWER TO THE SCAN TOOL

K1:

K1-K3:

Normal Operation
The scan tool is connected to the data link connector (DLC) to communicate with the high speed controller area network (HS-CAN), medium speed controller area network (MS-CAN), and International Standards Organization (ISO) 9141 communications network. Voltage for the scan tool is provided by circuit 1047 (LG/RD). Ground is provided by circuits 570 (BK/WH) and 1205 (BK).

Possible Causes
- Fuse
- Circuit 570 (BK/WH) open
- Circuit 1047 (LG/RD) open
- Circuit 1205 (BK) open
- Scan tool
