Home >> Ford >> 2007 >> Mustang V6-4.0L VIN N >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Module Communications Network

Module Communications Network

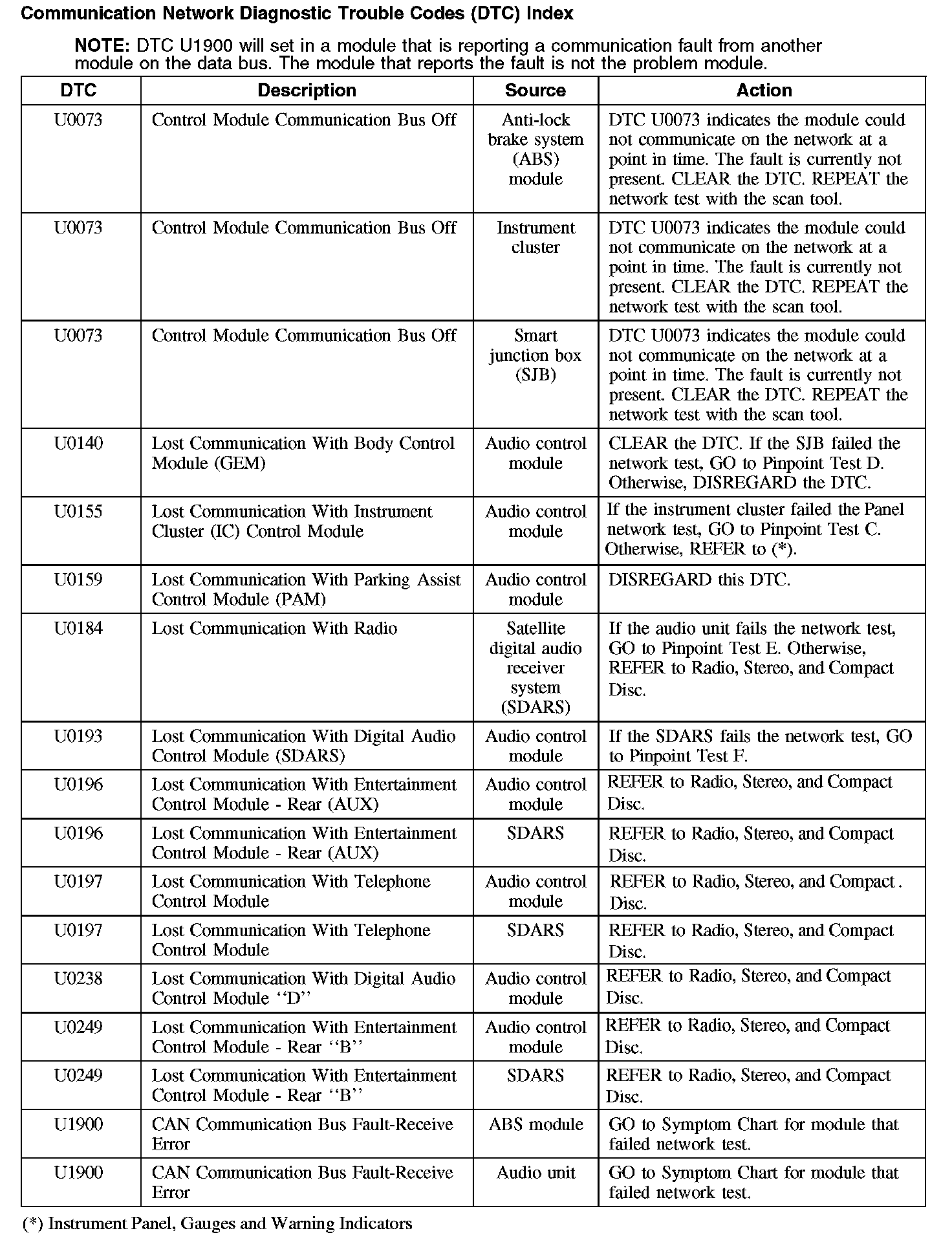

U0073-U1900:

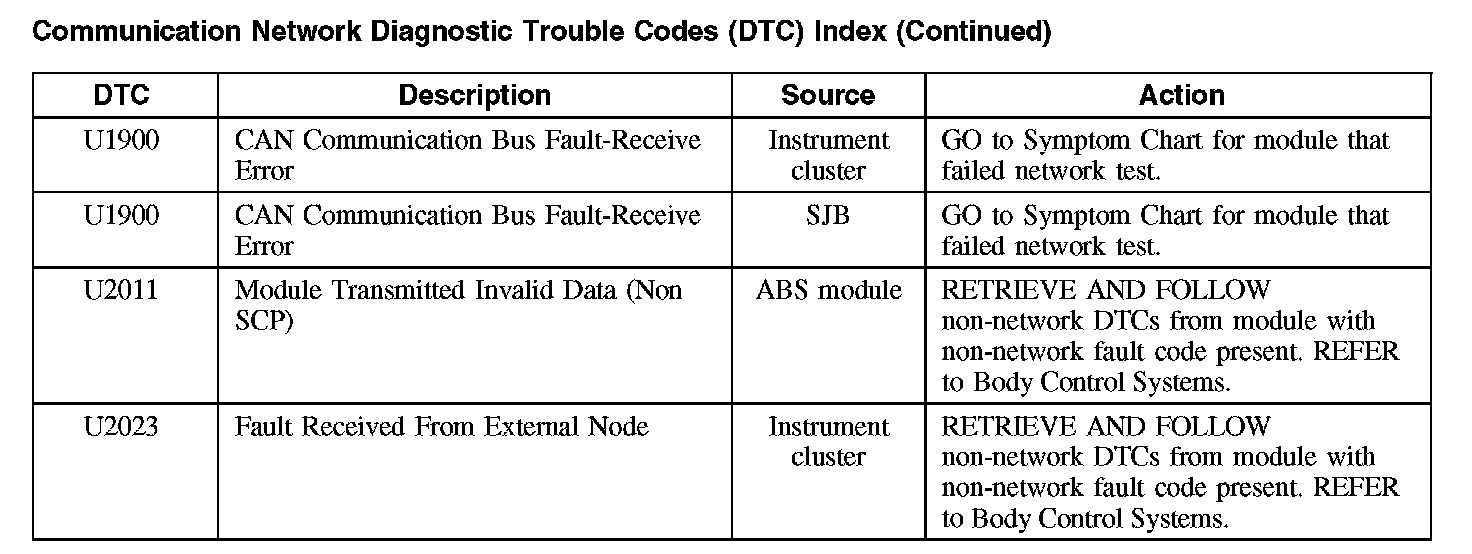

U1900-U2023:
