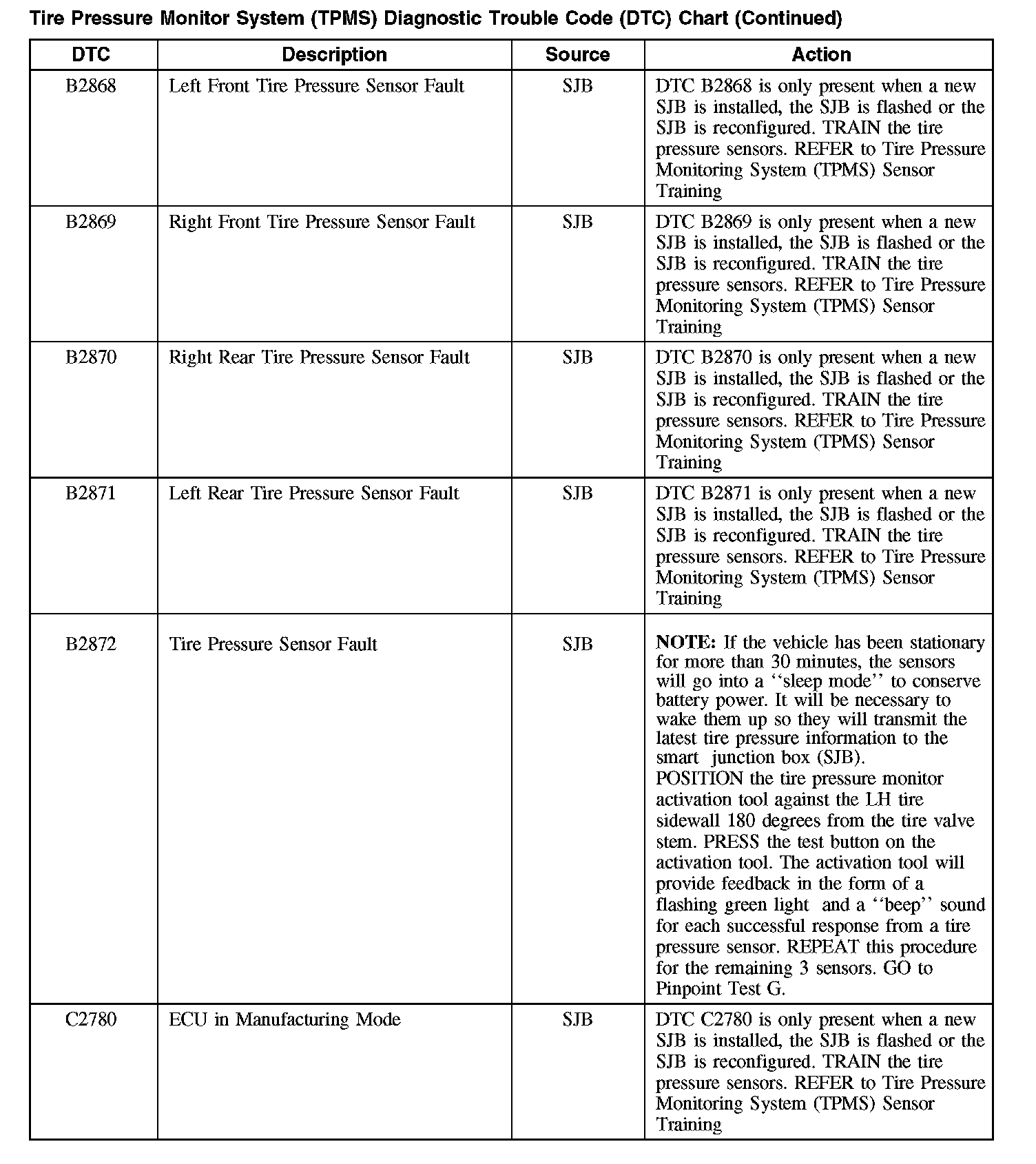

Tire Pressure Monitor System (TPMS) Diagnostic Trouble Code (DTC) Chart
B106A-B2477:
B2868-B2872 / C2780:
