Test H: The Illuminated Entry Is Inoperative When Using The Remote Keyless Entry (RKE) Transmitter

PINPOINT TEST H: THE ILLUMINATED ENTRY IS INOPERATIVE WHEN USING THE REMOTE KEYLESS ENTRY (RKE) TRANSMITTER

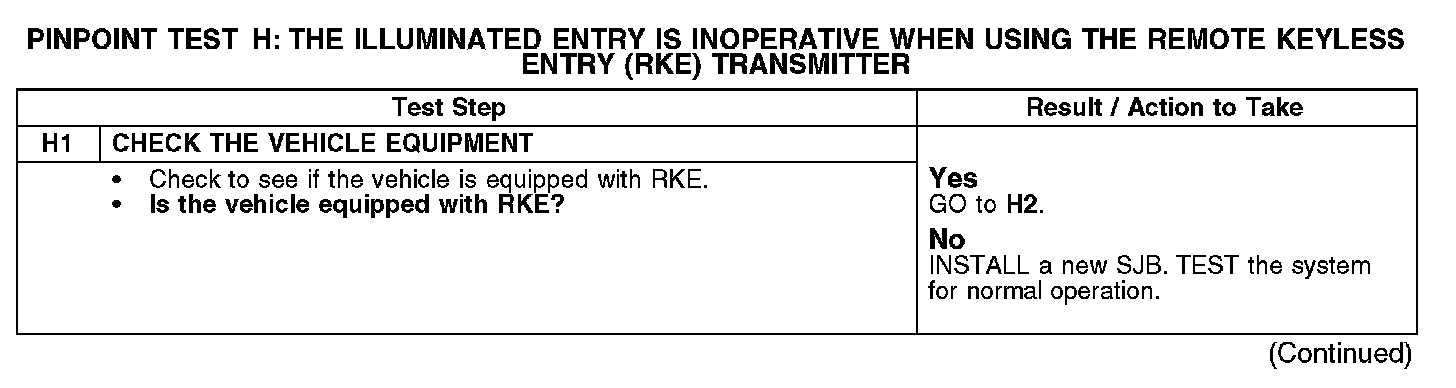

H1:

H2:

Normal Operation
The illuminated entry provides courtesy lighting whenever the smart junction box (SJB) receives a doors unlock request from the RKE transmitter. The SJB provides voltage on circuit 53 (BK/LB) for the courtesy lamps.

Possible Causes
- RKE system
- SJB
