Exhaust Manifold - RH

Exhaust Manifold - RH

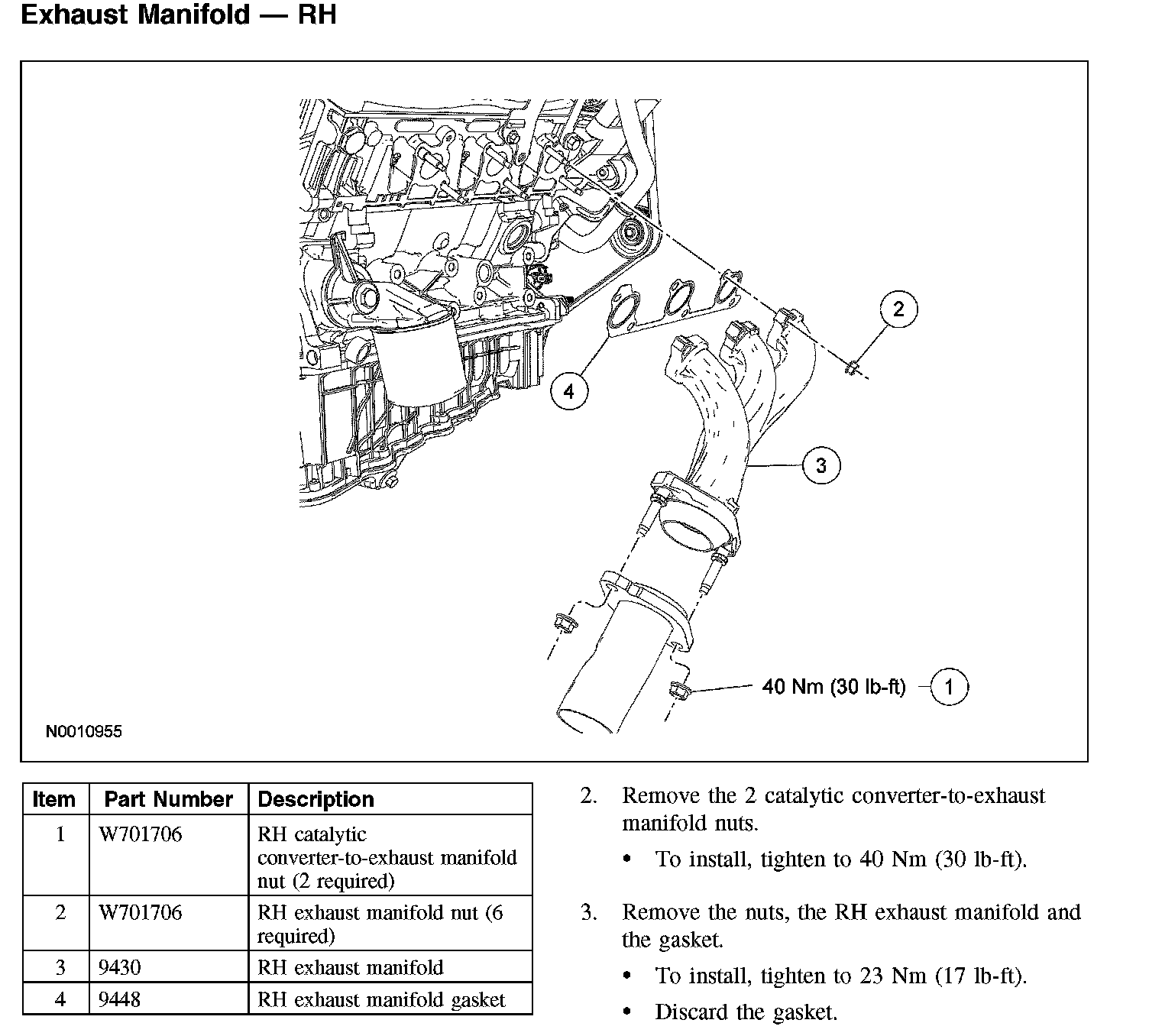

Exhaust Manifold - RH:

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the 2 catalytic converter-to-exhaust manifold nuts.
- To install, tighten to 40 Nm (30 ft. lbs.).
3. Remove the nuts, the RH exhaust manifold and the gasket.
- To install, tighten to 23 Nm (17 ft. lbs.).
- Discard the gasket.

4. NOTE: Install a new RH exhaust manifold gasket.

To install, reverse the removal procedure.
