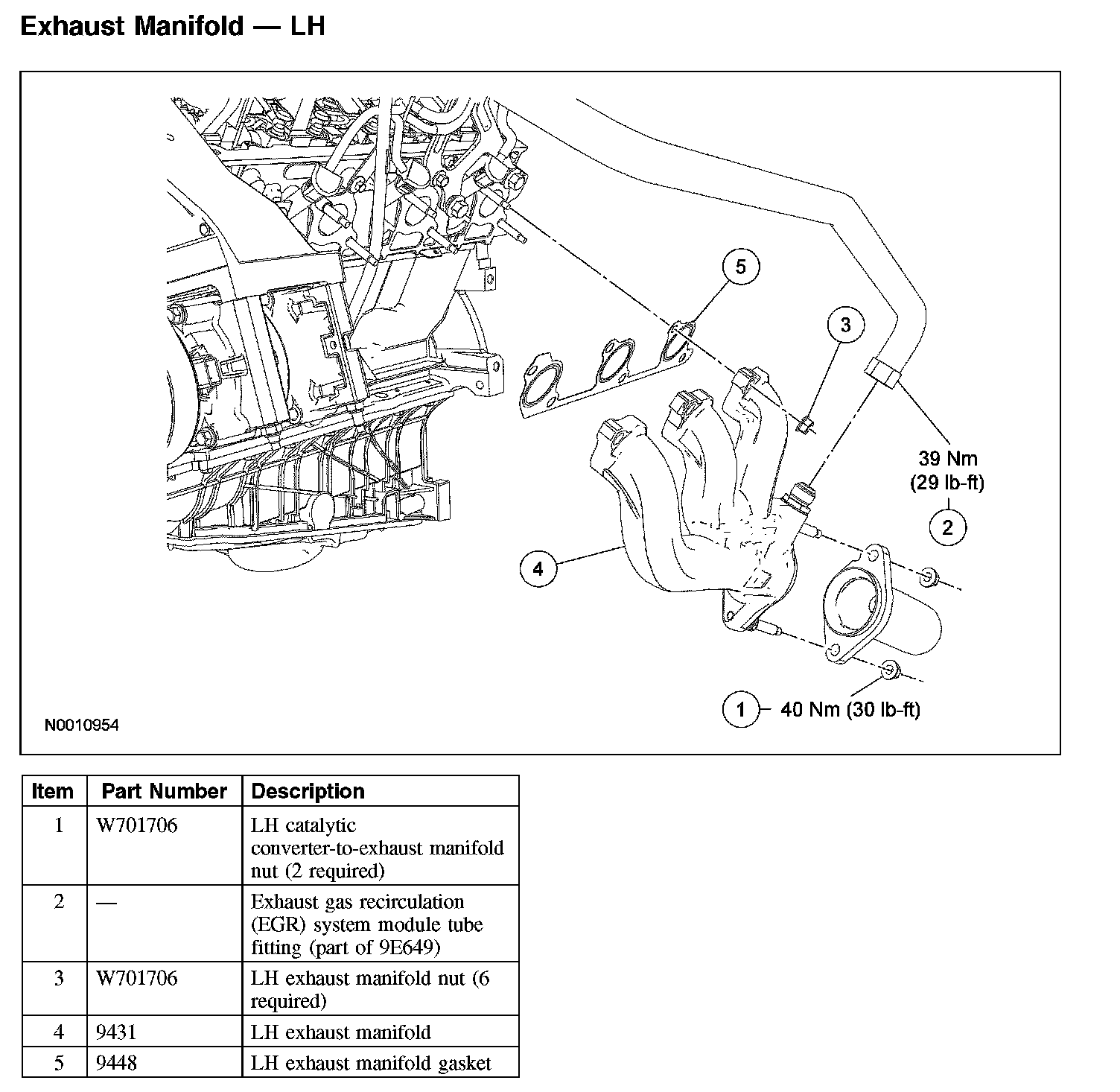

Exhaust Manifold - LH:

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the 2 catalytic converter-to-exhaust manifold nuts.
- To install, tighten to 40 Nm (30 ft. lbs.).
3. Disconnect the exhaust gas recirculation (EGR) system module tube from the exhaust manifold.
- To install, tighten to 39 Nm (29 ft. lbs.).
4. Remove the 6 nuts, the LH exhaust manifold and the gasket.
- Remove and discard the gasket.
- To install, tighten to 23 Nm (17 ft. lbs.).

5. NOTE: Install a new LH exhaust manifold gasket.

To install, reverse the removal procedure.
