Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

Oil Level Indicator and Tube

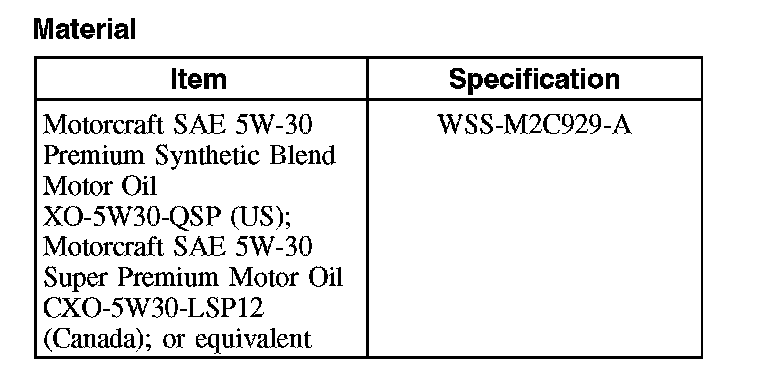

Material:

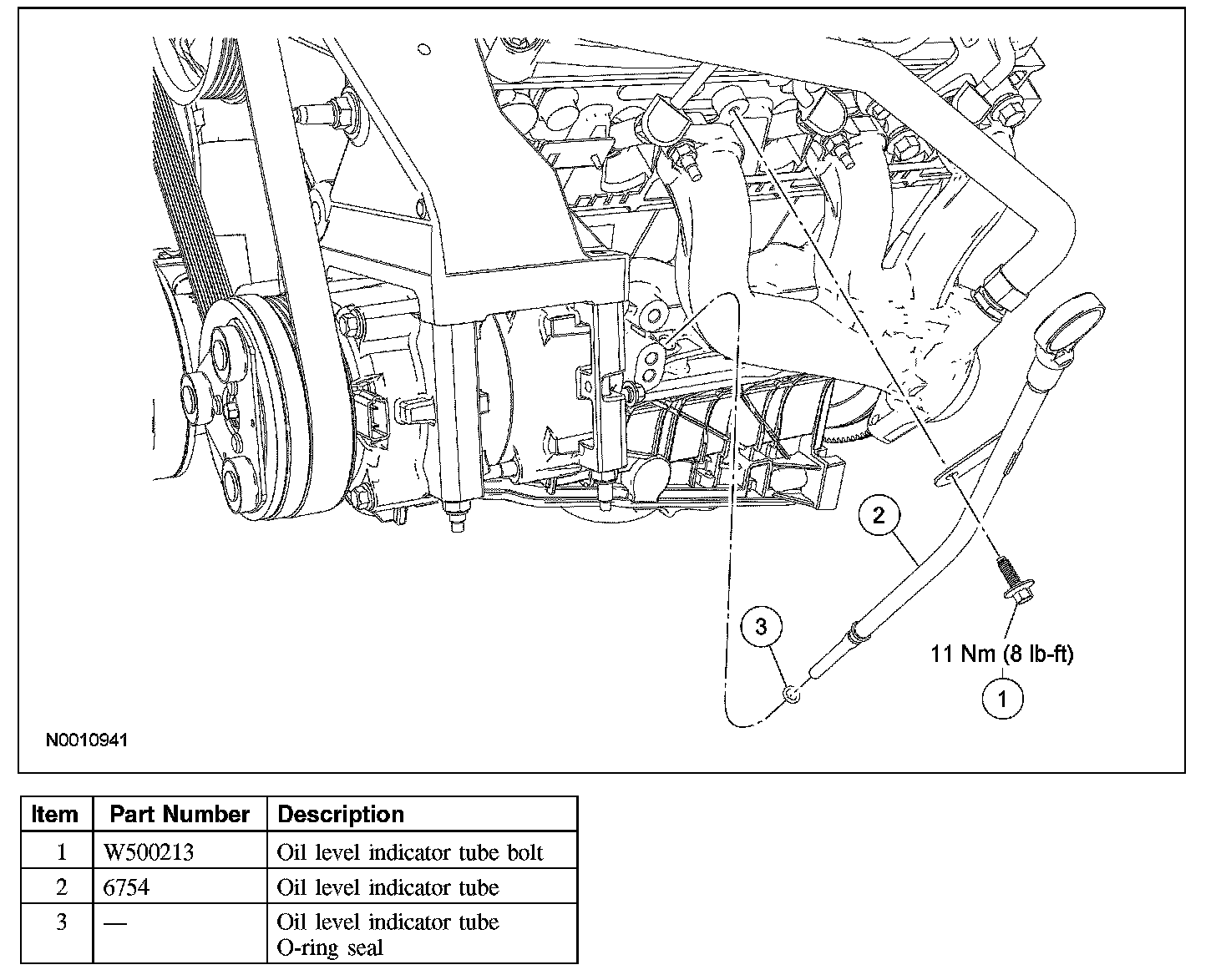

Removal and Installation
1. Remove the bolt and the oil level indicator tube.
- To install, tighten to 11 Nm (8 ft. lbs.).
- Remove and discard the O-ring seal.

2. NOTE: Lubricate the O-ring seal with clean engine oil.

To install, reverse the removal procedure.
