Rocker Arm Assembly: Service and Repair

Camshaft Roller Follower

Special Tool(s):

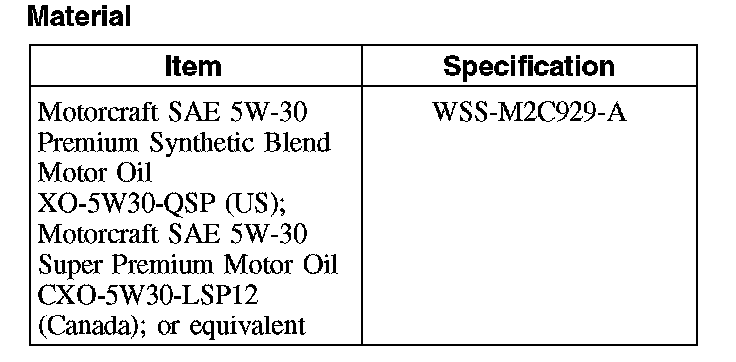

Material:

Removal and Installation
1. Remove the fuel rail.
2. Remove the LH and RH valve covers.
3. Rotate the crankshaft until the camshaft for the cylinder being serviced is at base circle.





4. NOTE: Mark the position of the camshaft roller followers so they can be installed in their original positions.

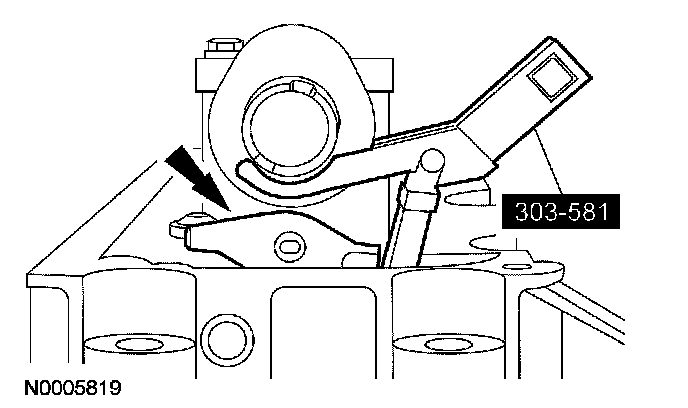

Using the special tool, remove the camshaft roller followers.





5. NOTE: The camshaft roller followers must be installed in their original positions.

NOTE: Lubricate the camshaft roller followers with clean engine oil.

To install, reverse the removal procedure.
