Lifter / Lash Adjuster: Service and Repair

Hydraulic Lash Adjuster

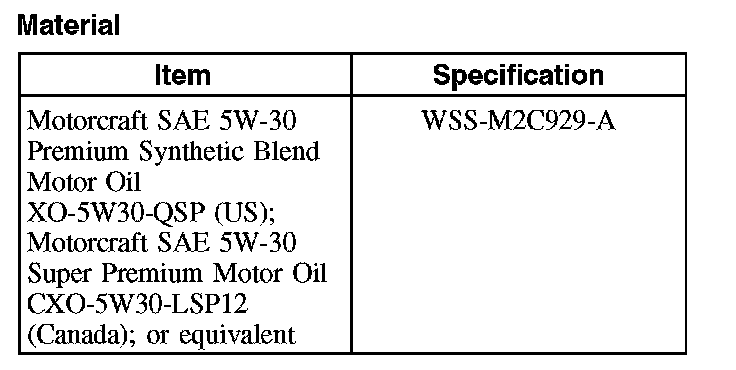

Material:

Removal and Installation
1. Remove the camshaft roller followers.

2. NOTE: Mark the position of the hydraulic lash adjusters so they can be installed in their original positions.

Remove the hydraulic lash adjusters.

3. NOTE: The hydraulic lash adjusters must be installed in their original positions.

NOTE: Lubricate the hydraulic lash adjusters with clean engine oil.

To install, reverse the removal procedure.
