Thermostat Housing, Engine Cooling
Thermostat Housing, Engine Cooling

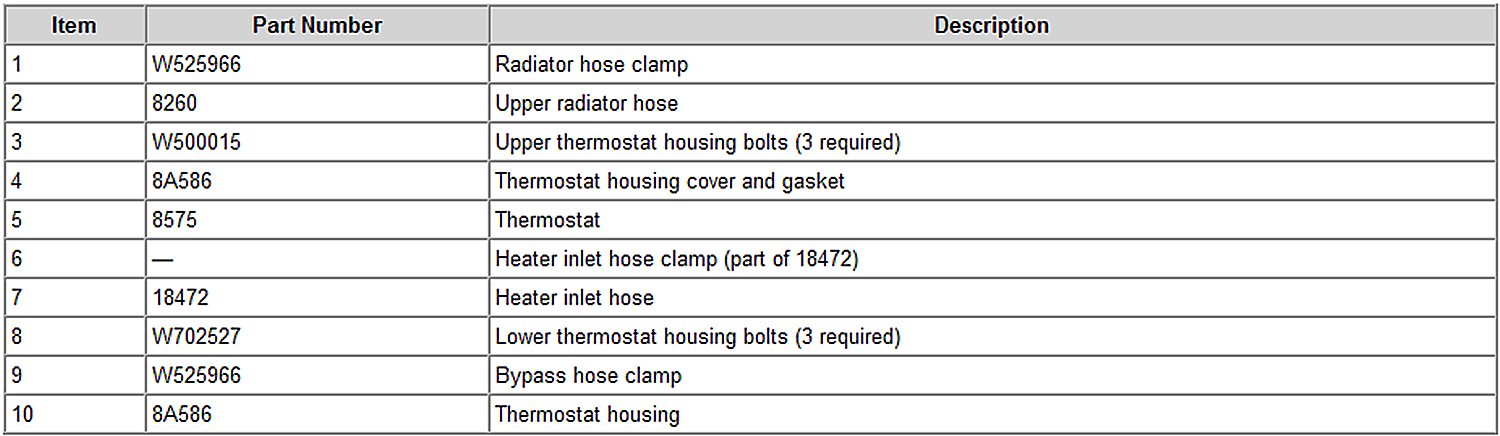

4.0L (SOHC) Exploded View (1 Of 2):

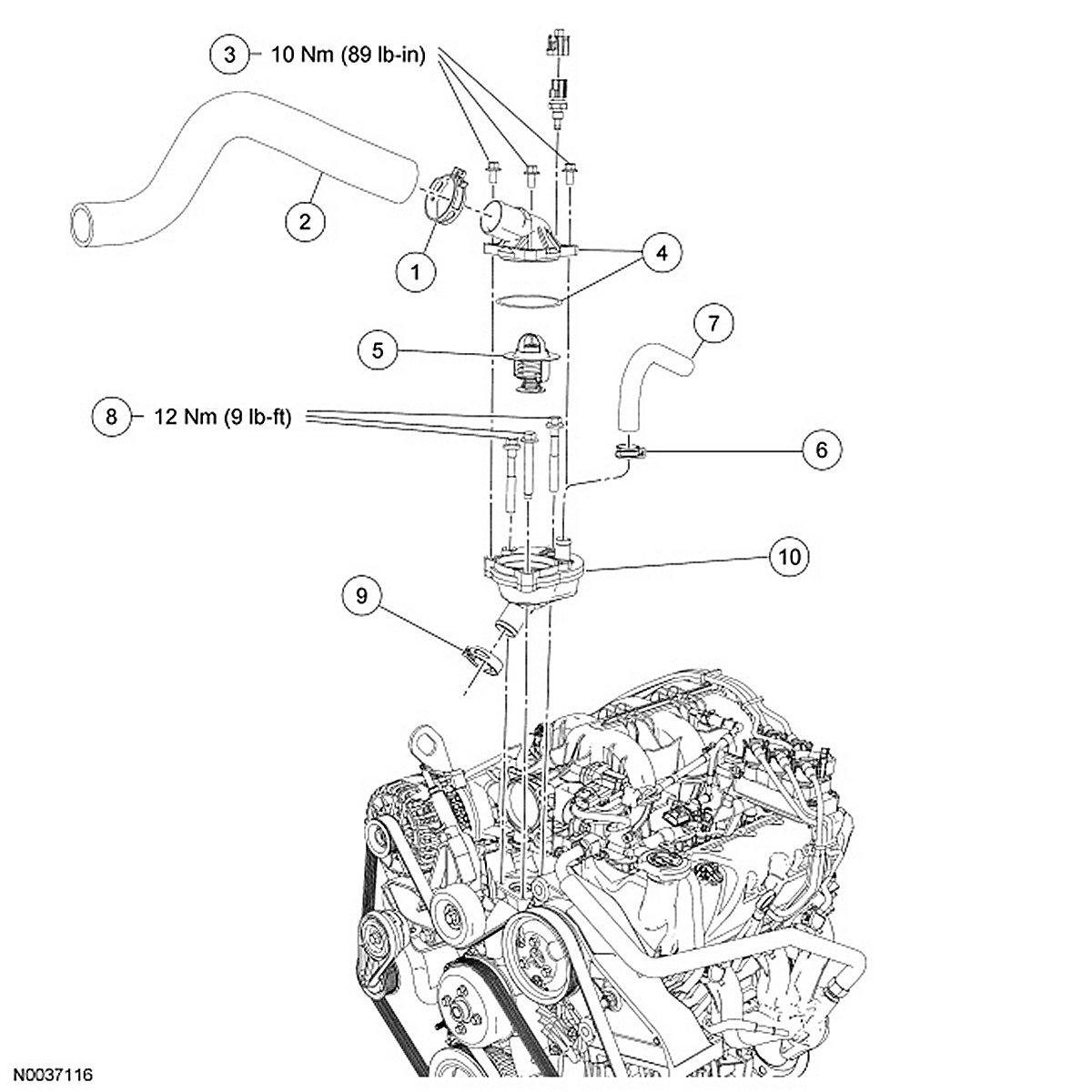

4.0L (SOHC) Exploded View (2 Of 2):
