Brake Caliper Anchor Plate - 4.0L SOHC and 4.6L (3V), Front

Brake Caliper Anchor Plate - 4.0L SOHC and 4.6L (3V)

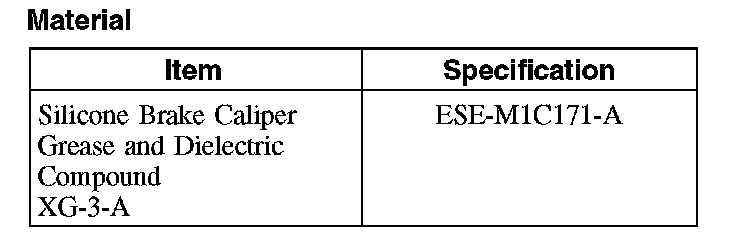

Material:

Disc Brake System - Exploded View:

Removal and Installation
1. Remove the brake pads.

2. NOTE: Clean any residual thread lock compound from the anchor plate threads before installing the bolts.

Remove and discard the 2 anchor plate bolts and remove the brake caliper anchor plate.
- To install, tighten to 115 Nm (85 ft. lbs.).
3. Inspect the brake caliper anchor plate assembly.
- Check the guide pins and boots for binding and damage.
- Replace worn or damaged pins. Lubricate the pins with the specified grease.
- Install a new brake caliper anchor plate if it is worn or damaged.
4. To install, reverse the removal procedure.
