Removal and Replacement

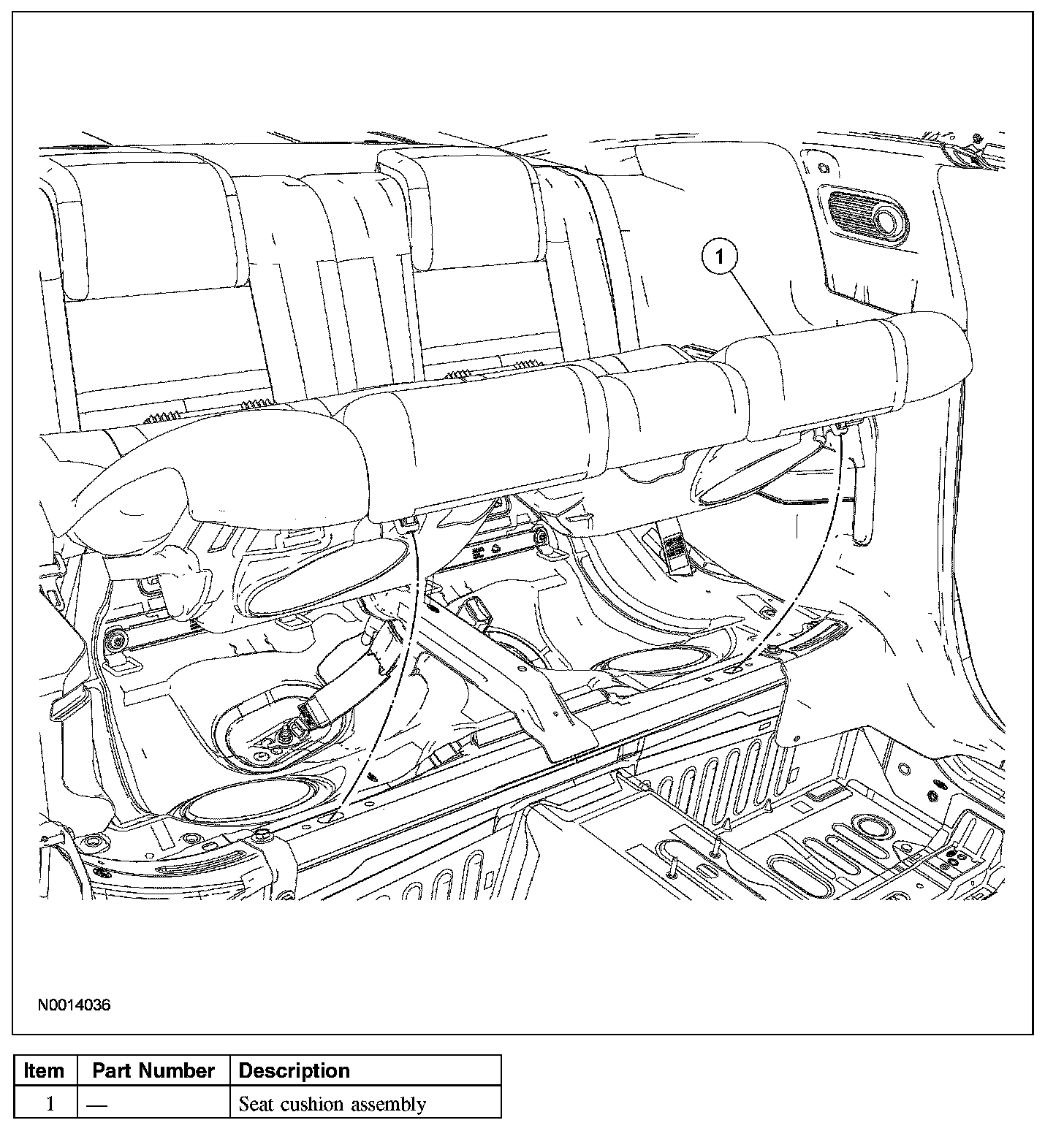

SEAT CUSHION - REAR

Hard Top 50 Percent Backrest:

Removal
1. From under the front of the rear cushion assembly, push each of the 2 seat cushion release tabs in, lift up at the front and remove the rear cushion assembly.

Installation
1. Align the cushion assembly and push down, engaging the retainer tabs.
- Make sure the safety belts and buckles are accessible to the occupants after installation.
