Body - Premature Convertible Top Wear
TSB 07-19-110/01/07
CONVERTIBLE TOP WEAR - BUILT BEFORE
10/11/2006
FORD:
2005-2007 Mustang
This article supersedes TSB 06-22-16 to update the Parts List.
ISSUE
Some 2005-2007 Mustang vehicles built before 10/11/2006 and equipped with a convertible top could develop wear or a hole near the 4th bow and/or number 1 bow area. This is caused by the number 1 and number 4 bow wearing or pinching through the vinyl or cloth top.
ACTION
Follow the Service Procedure steps to correct the condition.
SERVICE PROCEDURE
1. Install a new convertible top cover.
2. Install two (2) tether straps.
3. Add tape to the number 1 bow panel following the instruction sheet provided in the Convertible Top Kit.

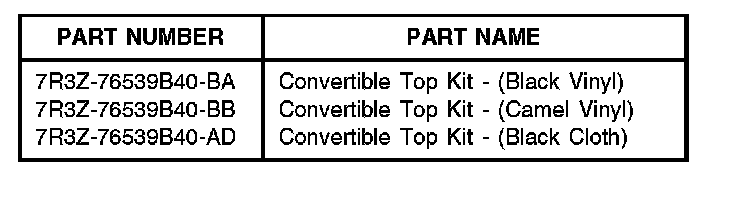

Parts Block
WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage
IMPORTANT: Warranty coverage limits/policies are not altered by a TSB. Warranty coverage limits are determined by the identified causal part.
OPERATION DESCRIPTION TIME
071901A 2005-2007 Mustang 4.4 Hrs.
Convertible: Replace
Convertible Top Cover
Includes Time To Install
Tether Straps, And To
Remove And Install Top
Assembly (Do Not Use
With 52700A, 53000A)
DEALER CODING
CONDITION
BASIC PART NO. CODE
7652700 30
