Body - Spoiler Contacts Deck Lid
TSB 07-6-704/02/07
SPOILER/DECK LID CONTACT
FORD:
2007 Mustang
ISSUE
Some 2007 Mustang vehicles equipped with a 4.0L engine may exhibit the spoilers in contact with the deck lid causing paint damage.
ACTION
Follow the Service Procedure to add Urethane tape between the spoiler and the deck lid.
SERVICE PROCEDURE
1. Cut a piece of Urethane Tape (Hard Foam Part Number 164-R4902) 5/8" X 2" from the Rotunda Squeak And Rattle Kit (Part Number 164-R4900).

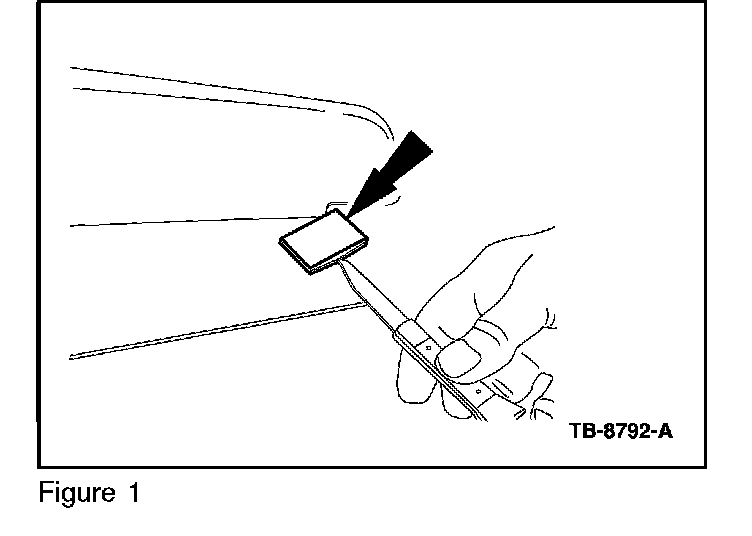

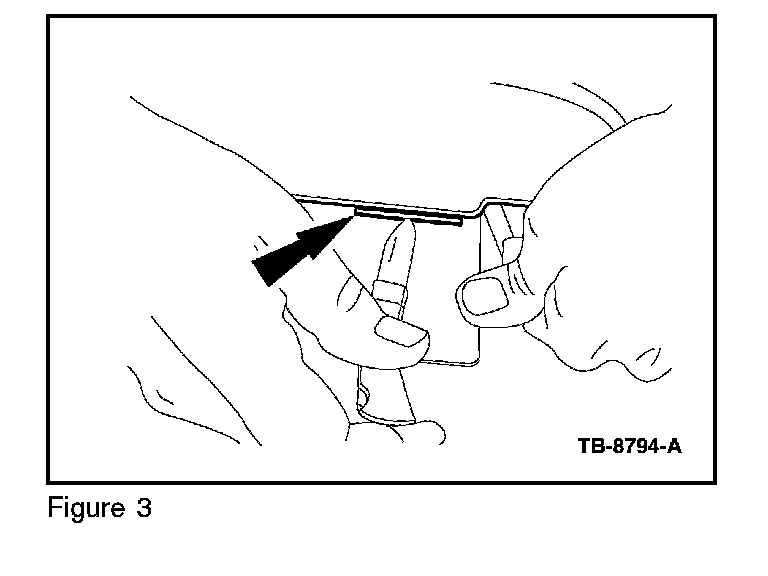

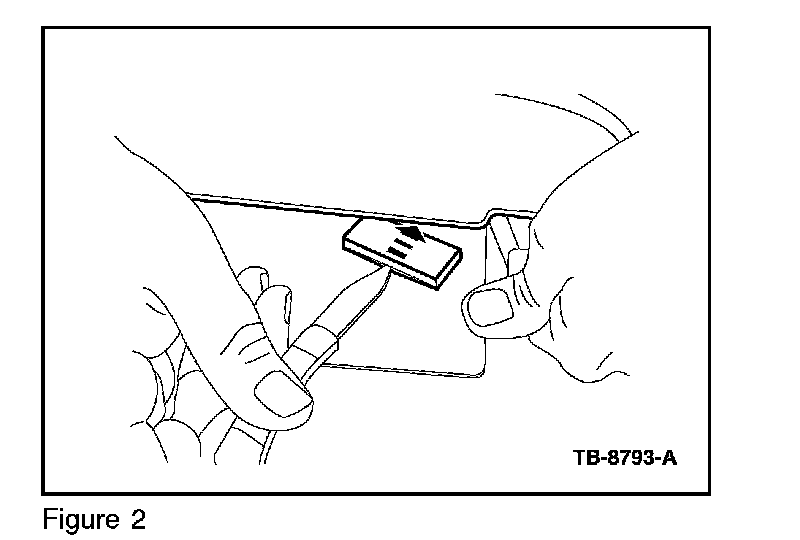

2. Remove the backing on the Urethane tape and slide in-between the spoiler and the deck lid on both left and right sides of the deck lid/spoiler. Use a thin, flathead screwdriver or knife to aid in installation. (Figures 1, 2, and 3)
NOTE
YOU MAY HAVE TO APPLY A LIGHT AMOUNT OF PRESSURE TO THE DECK LID TO CREATE A SLIGHTLY LARGER GAP TO SLIDE IN THE TAPE.
WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage
IMPORTANT: Warranty coverage limits/policies are not altered by a TSB. Warranty coverage limits are determined by the identified causal part.
OPERATION DESCRIPTION TIME
070607A 2007 Mustang 4.0L: Install 0.2 Hr.
Urethane Tape Between
The Spoiler And The Deck
Lid
DEALER CODING
CONDITION
BASIC PART NO. CODE
7040110 70
