Antenna, Navigation: Service and Repair

GLOBAL POSITIONING SYSTEM (GPS) ANTENNA







Removal and Installation

All vehicles
1. Remove the audio unit.

Vehicles with THX(R) sound
2. Remove the instrument panel speaker.

Vehicles without THX(R) sound
3. Remove the instrument panel upper storage bin.

All vehicles

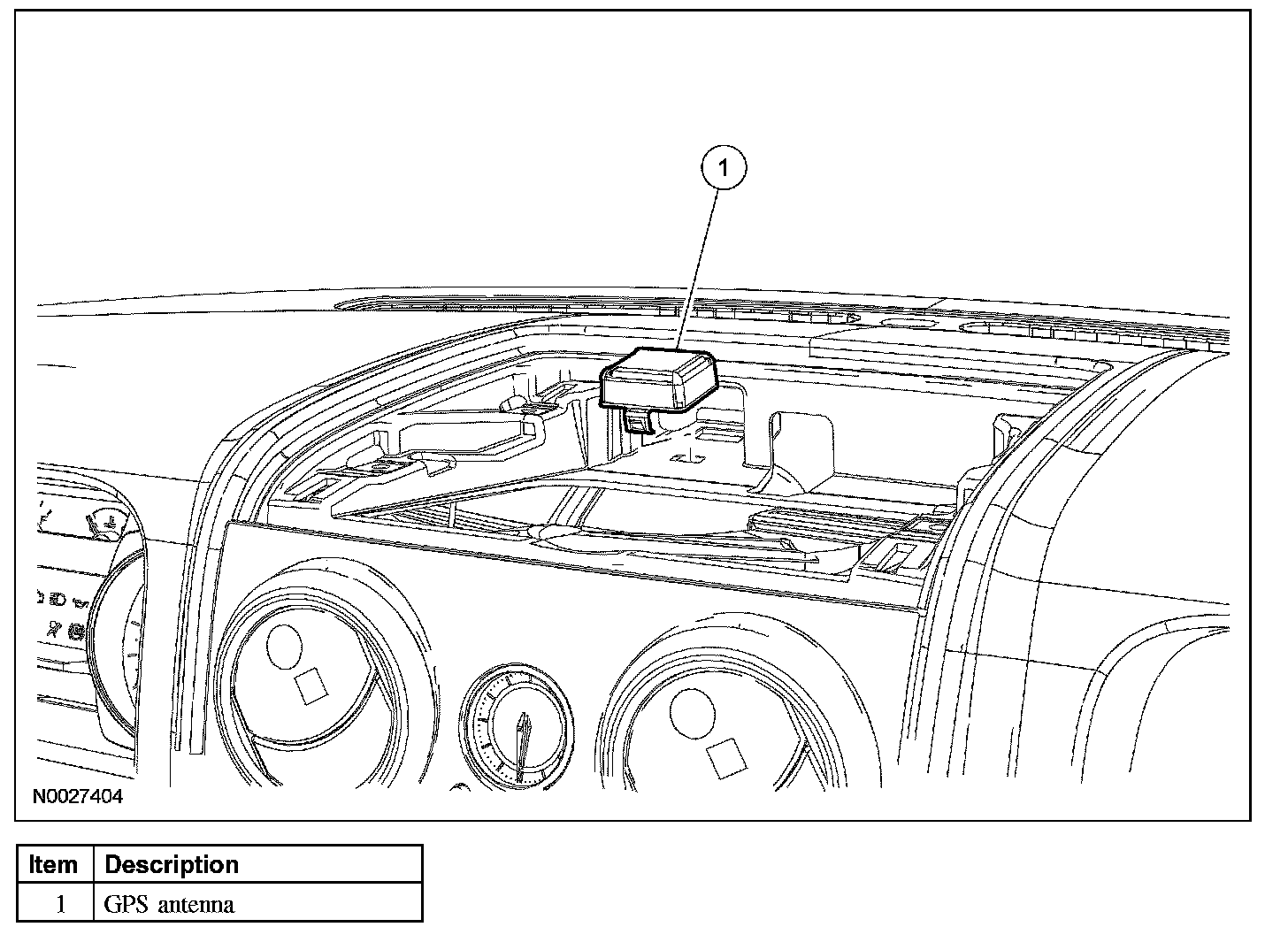

4. Release the clip and remove the GPS antenna.
5. To install, reverse the removal procedure.
