Front Door Window Regulator: Service and Repair
FRONT DOOR WINDOW REGULATORHeavy Duty Riveter:

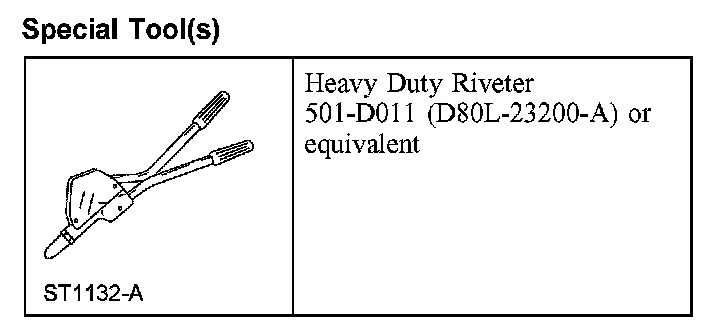

Special Tool(s)
Part 1:
Part 2:

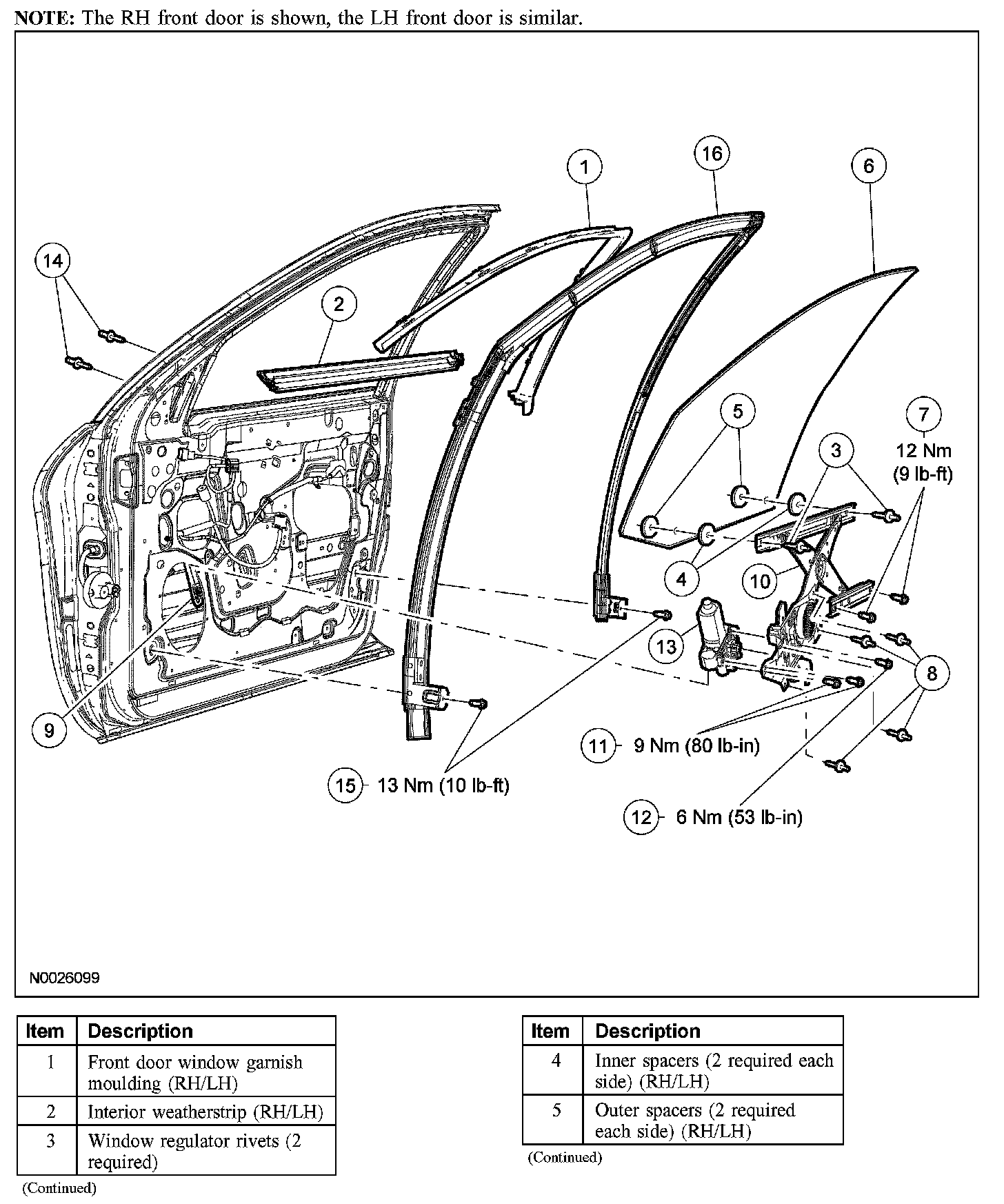

Removal and Installation
1. Remove the front door window glass.
2. Remove the 2 front door window regulator bolts.
- To install, tighten to 12 Nm (9 lb-ft).
3. Disconnect the front door window regulator motor electrical connector.

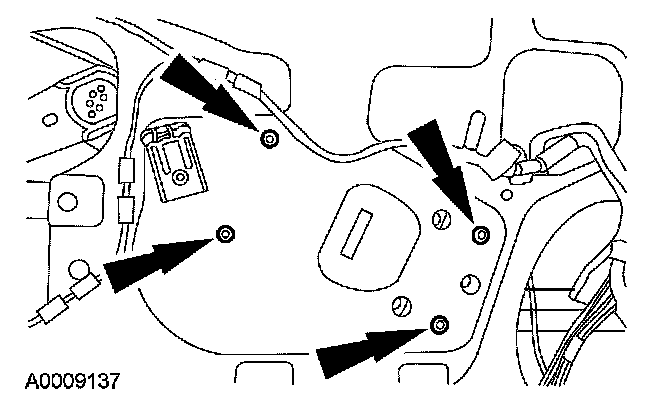

4. Remove the 4 front door window regulator rivets and the front door window regulator.
5. WARNING: If the front door power window regulator counterbalance spring must be removed or replaced for any reason, make sure that the front door power window regulator arms are in a fixed position prior to removal to prevent possible injury during C-spring unwind.
Remove the 2 front door window regulator motor inner bolts.
- To install, tighten to 9 Nm (80 lb-in).
6. Remove the front door window regulator motor outer bolt.
- To install, tighten to 6 Nm (53 lb-in).
7. NOTE: Use the special tool to install the rivets.
To install, reverse the removal procedure.
