Rear Door Glass Top Run
REAR DOOR GLASS TOP RUNHeavy Duty Riveter:

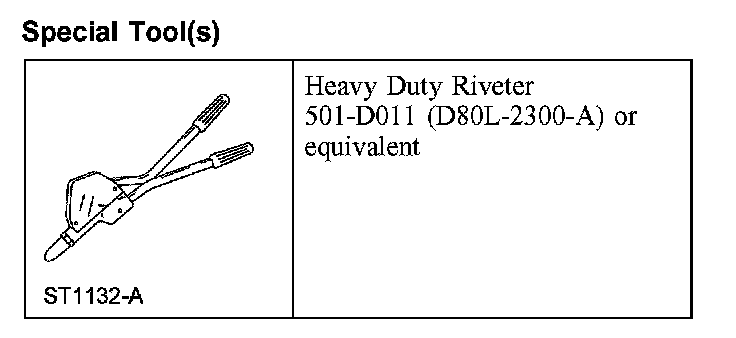

Special Tool(s)
Removal and Installation
1. CAUTION: Due to the fragile make-up of the rear door glass top run, removal is recommended only if the top run is damaged. Unnecessary removal may damage the light-gauge steel carrier insert within the rubber seal of the rear door glass top run.
Remove the rear door window glass.
2. Remove the rear door glass top run bolt.
- To install, tighten to 11 Nm (8 lb-ft).
3. NOTE: When installing be sure to correctly align locator pins.

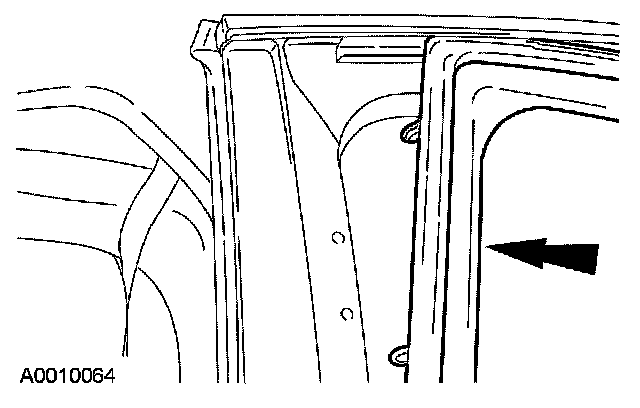

Remove the rear door glass top run.
4. To install, reverse the removal procedure.
