Transaxle Connector Layouts

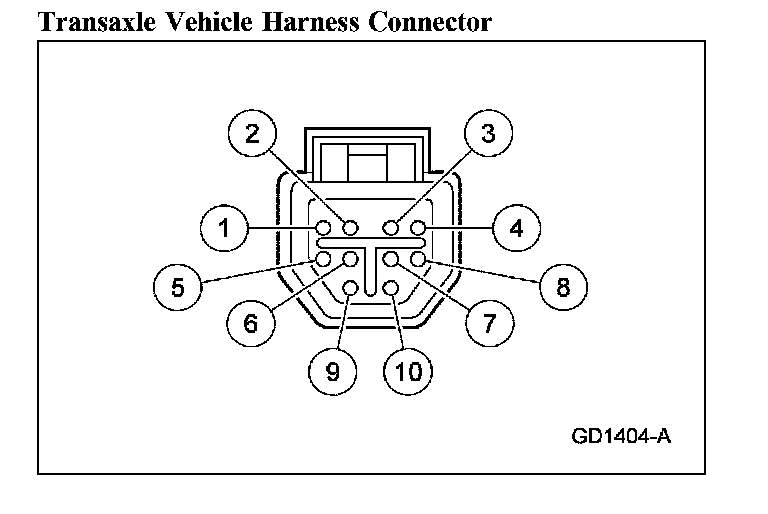

Transaxle Vehicle Harness Connector:

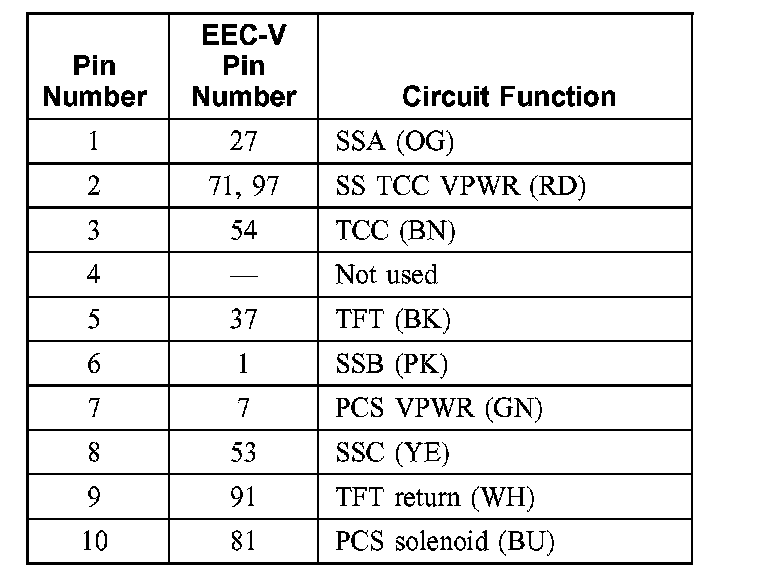

Transaxle Vehicle Harness Connector:

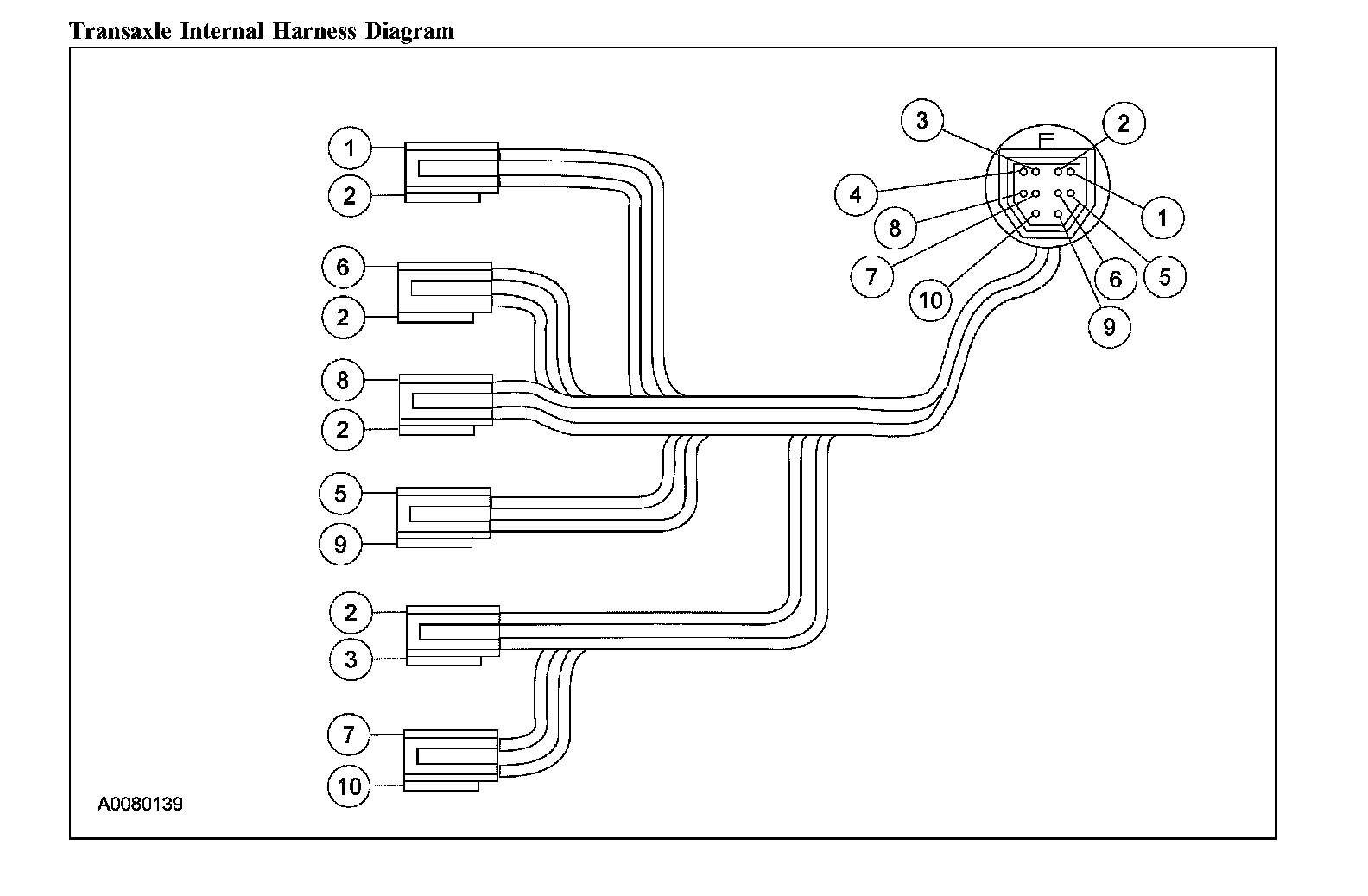

Transaxle Internal Harness Diagram:

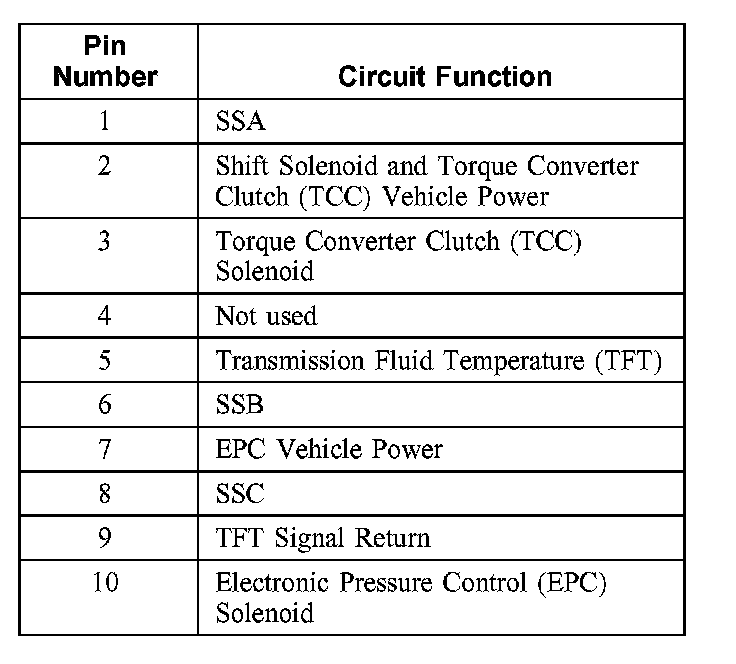

Transaxle Internal Harness Diagram:

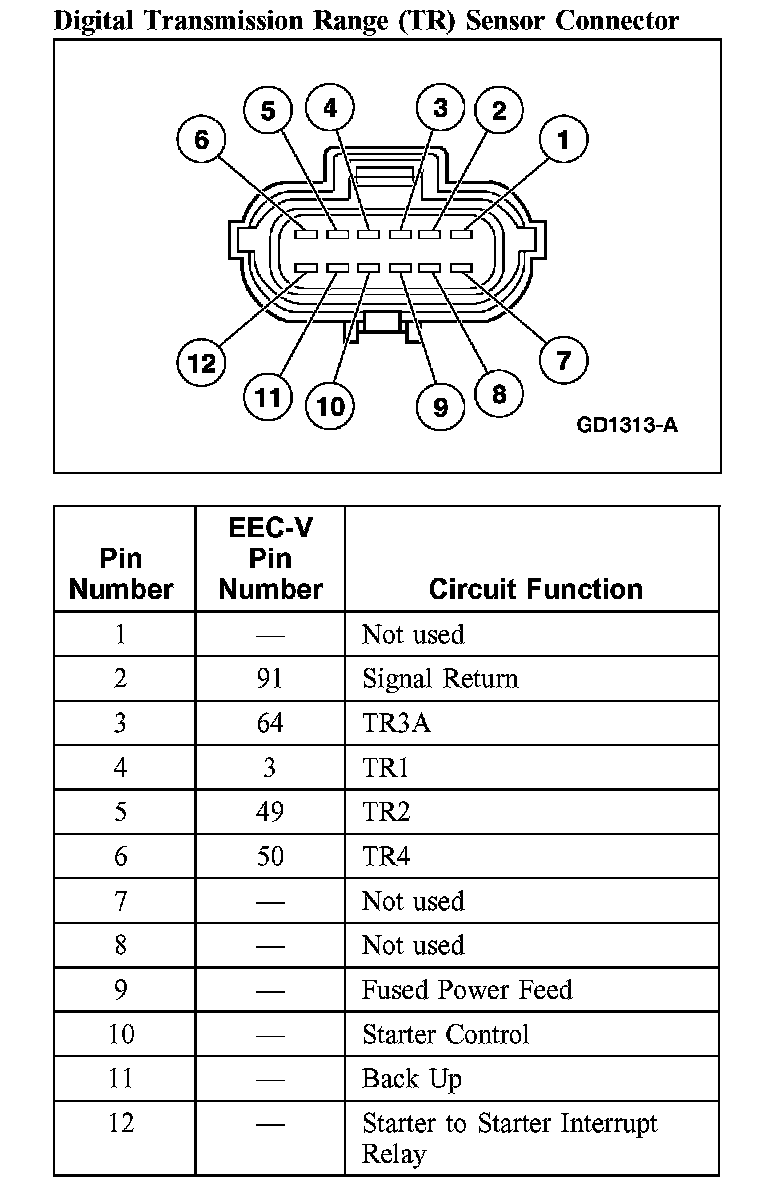

Digital Transmission Range (TR) Sensor Connector:

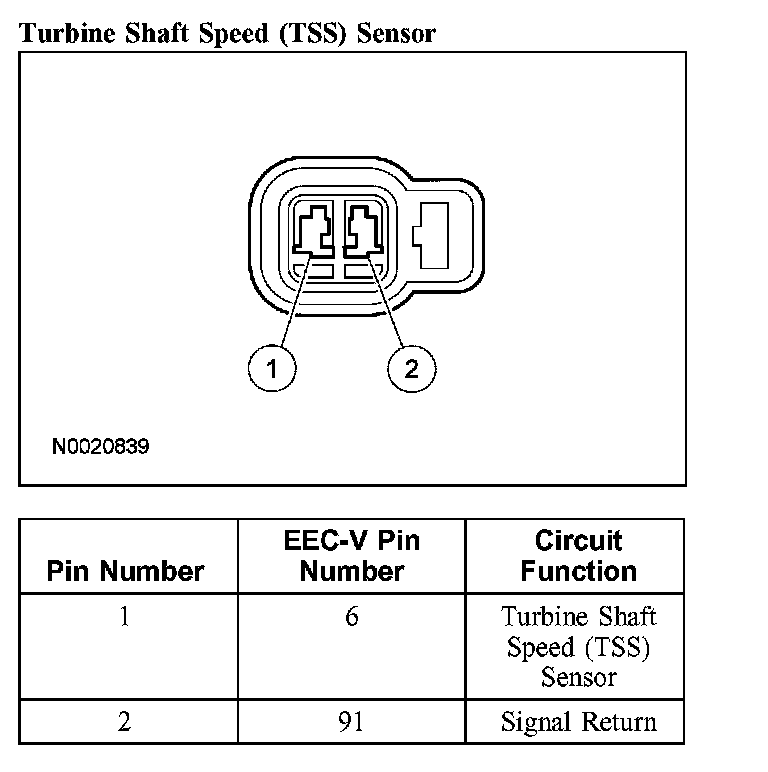

Turbine Shaft Speed (TSS) Sensor:

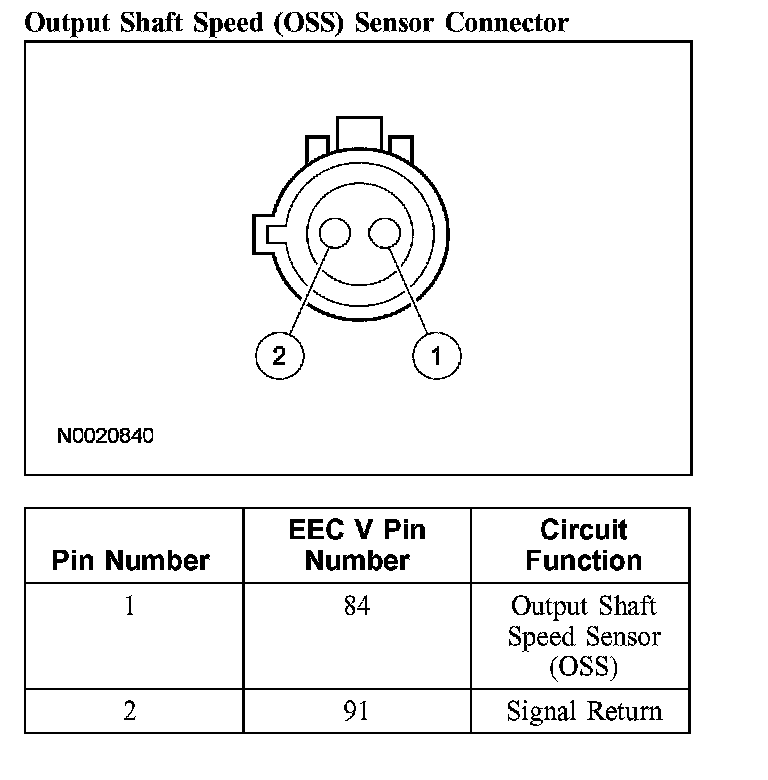

Output Shaft Speed (OSS) Sensor Connector:
