Torque Converter Operation Concern 240/340-242/342
>>
242/342 Cycling/Shudder/Chatter
242/342 Cycling/Shudder/Chatter
TORQUE CONVERTER
OPERATION CONCERN:CYCLING/SHUDDER/CHATTER

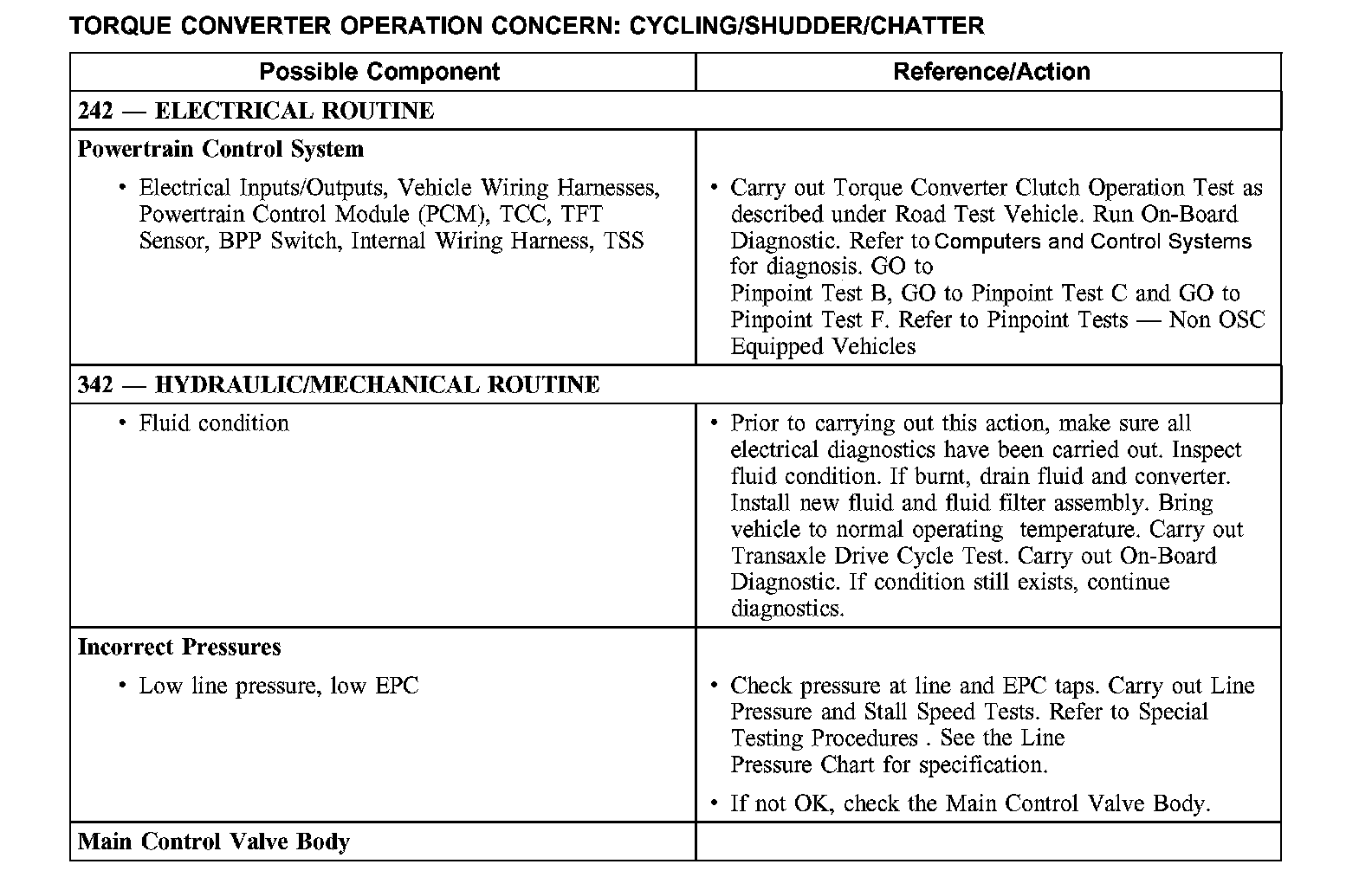

242/342 Cycling/Shudder/Chatter (part 1):

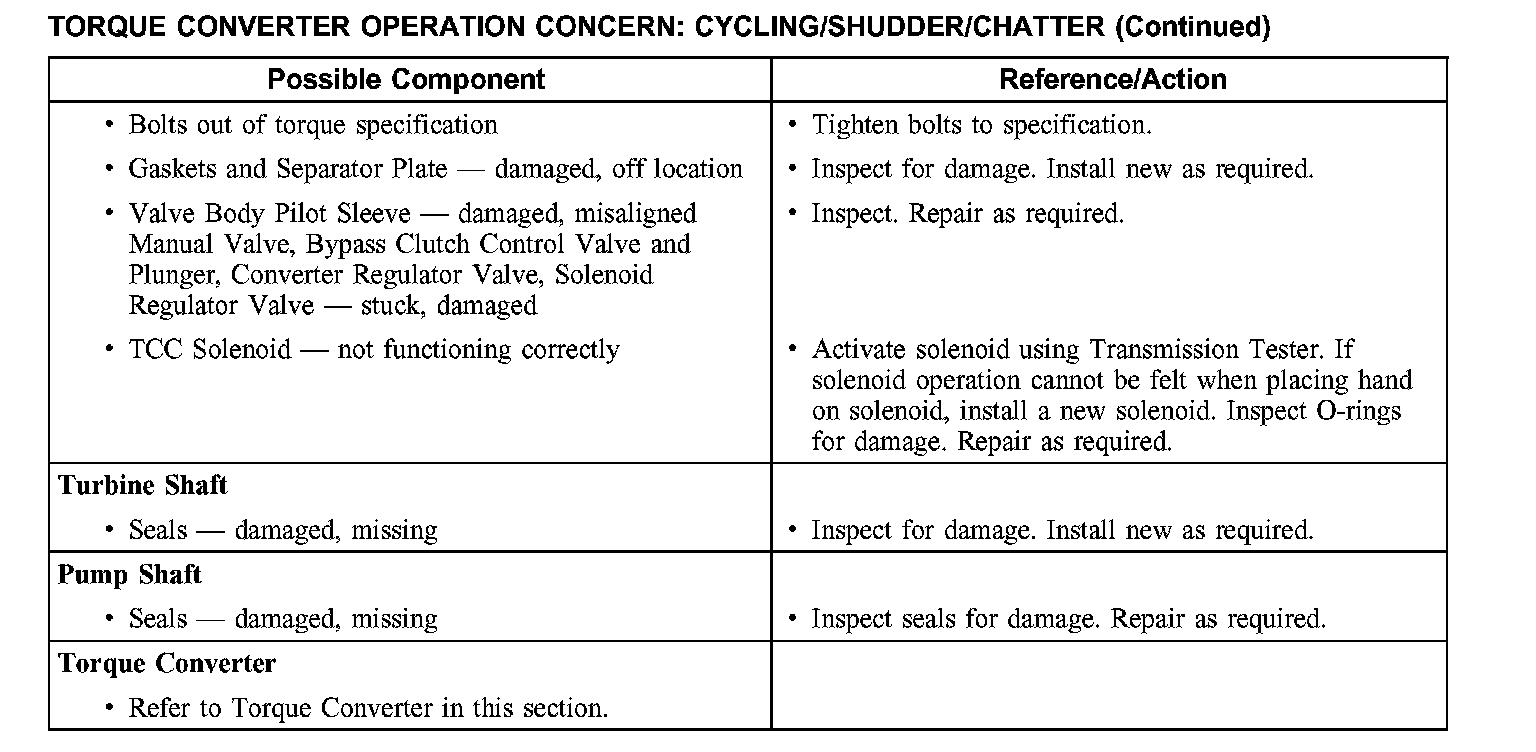

242/342 Cycling/Shudder/Chatter (part 2):
