211/311 Timing - Early/Late

SHIFT CONCERNS: TIMING - EARLY/LATE

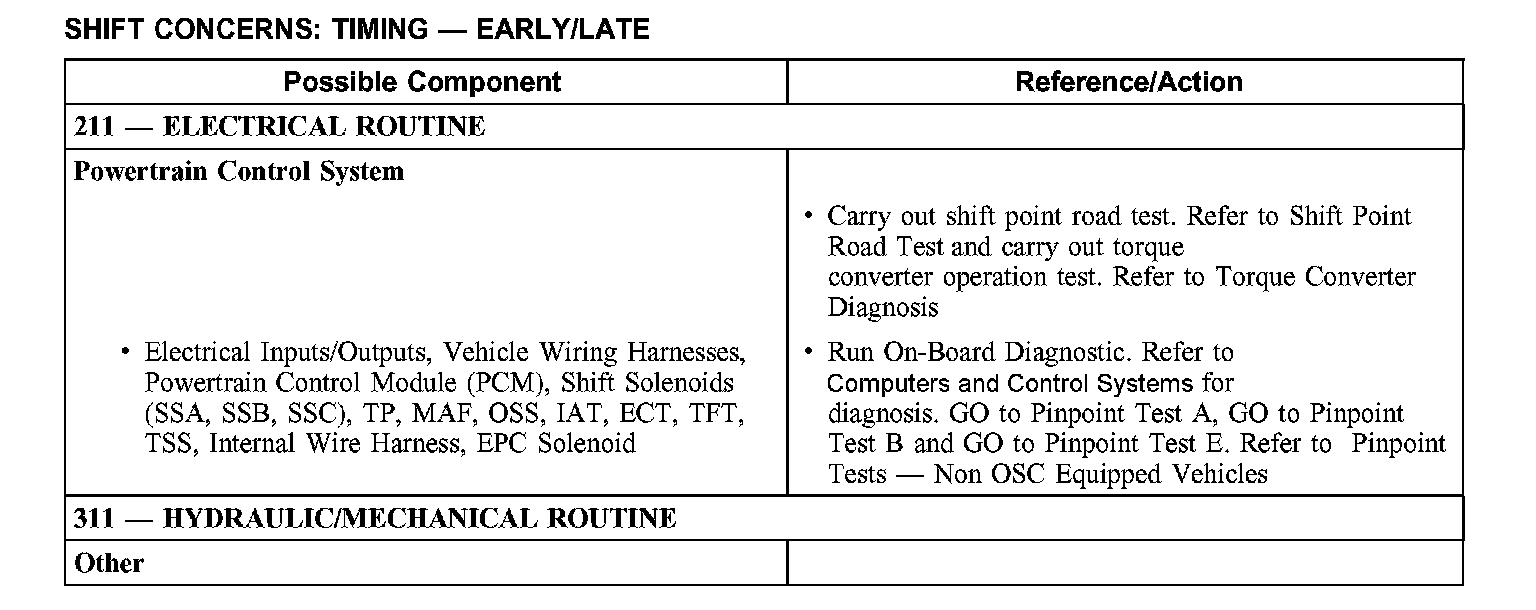

211/311 Timing - Early/Late (part 1):

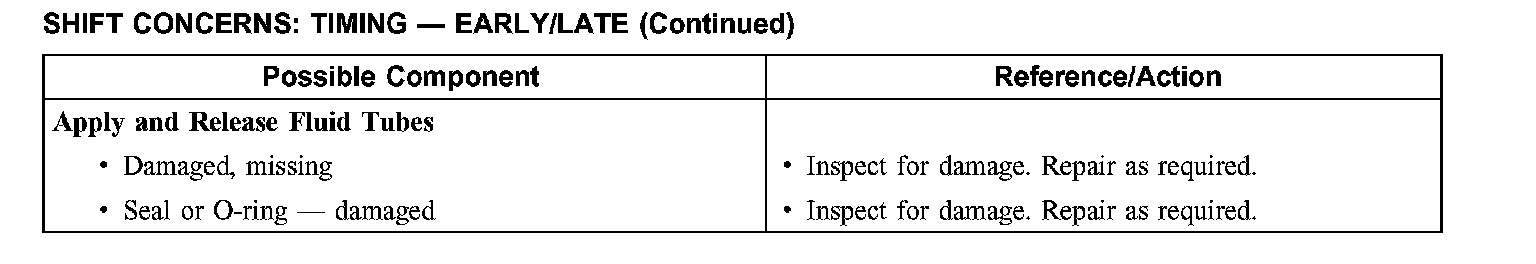

211/311 Timing - Early/Late (part 2):

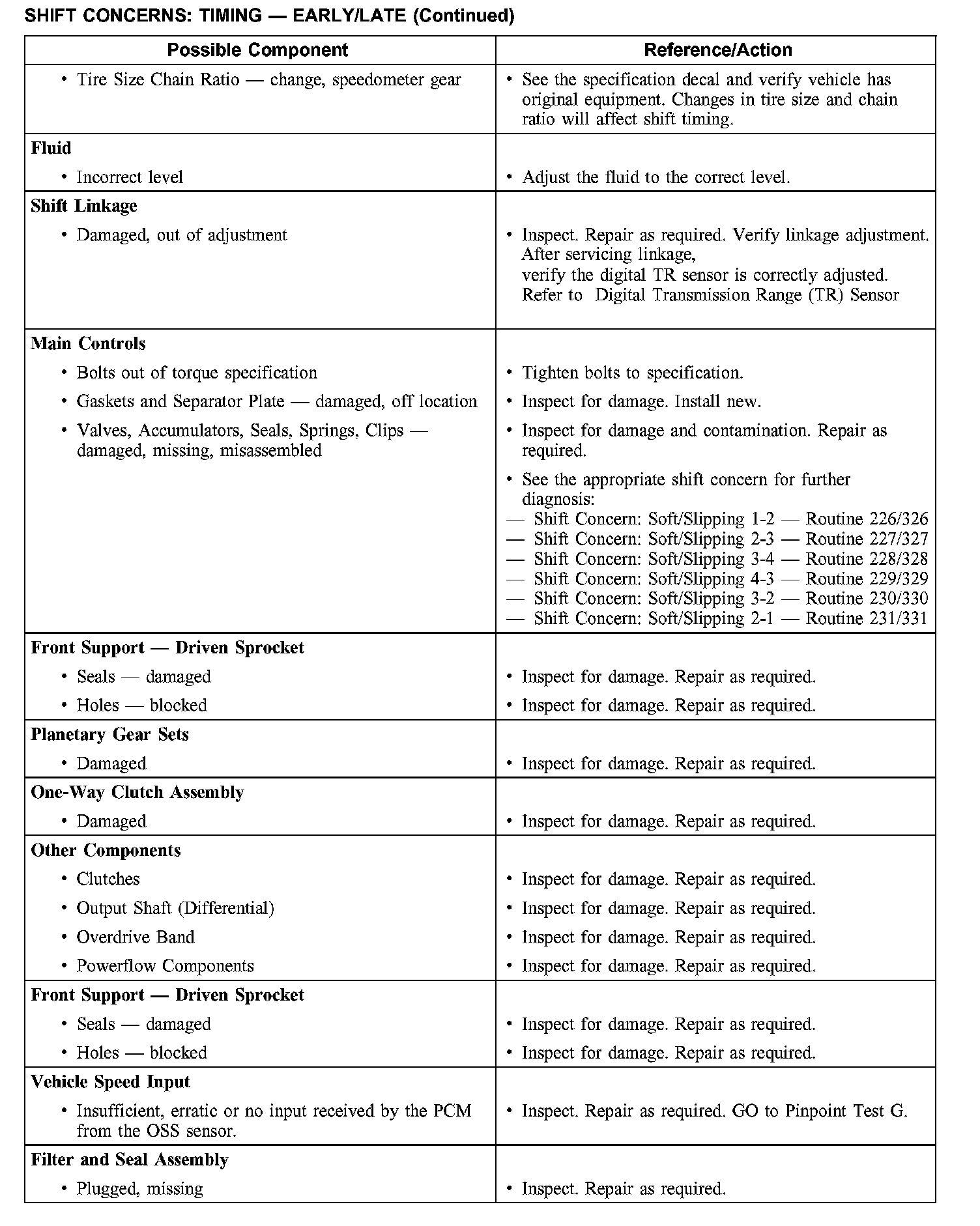

211/311 Timing - Early/Late (part 3):
