Home >> Ford >> 2006 >> Taurus V6-3.0L VIN U >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptoms >> Diagnostic Routines >> Engagement Concerns 201/301-209/309 >> 207/307 No Forward and No Reverse

207/307 No Forward and No Reverse

ENGAGEMENT CONCERN: NO FORWARD AND NO REVERSE

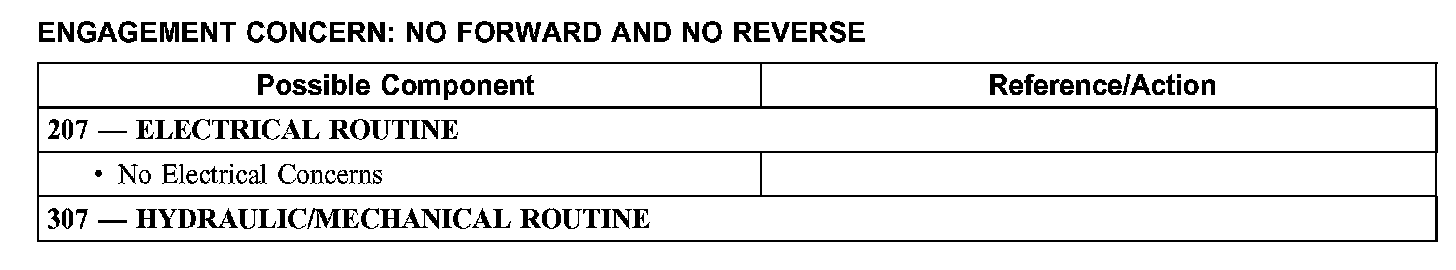

207/307 No Forward and No Reverse (part 1):




207/307 No Forward and No Reverse (part 2):

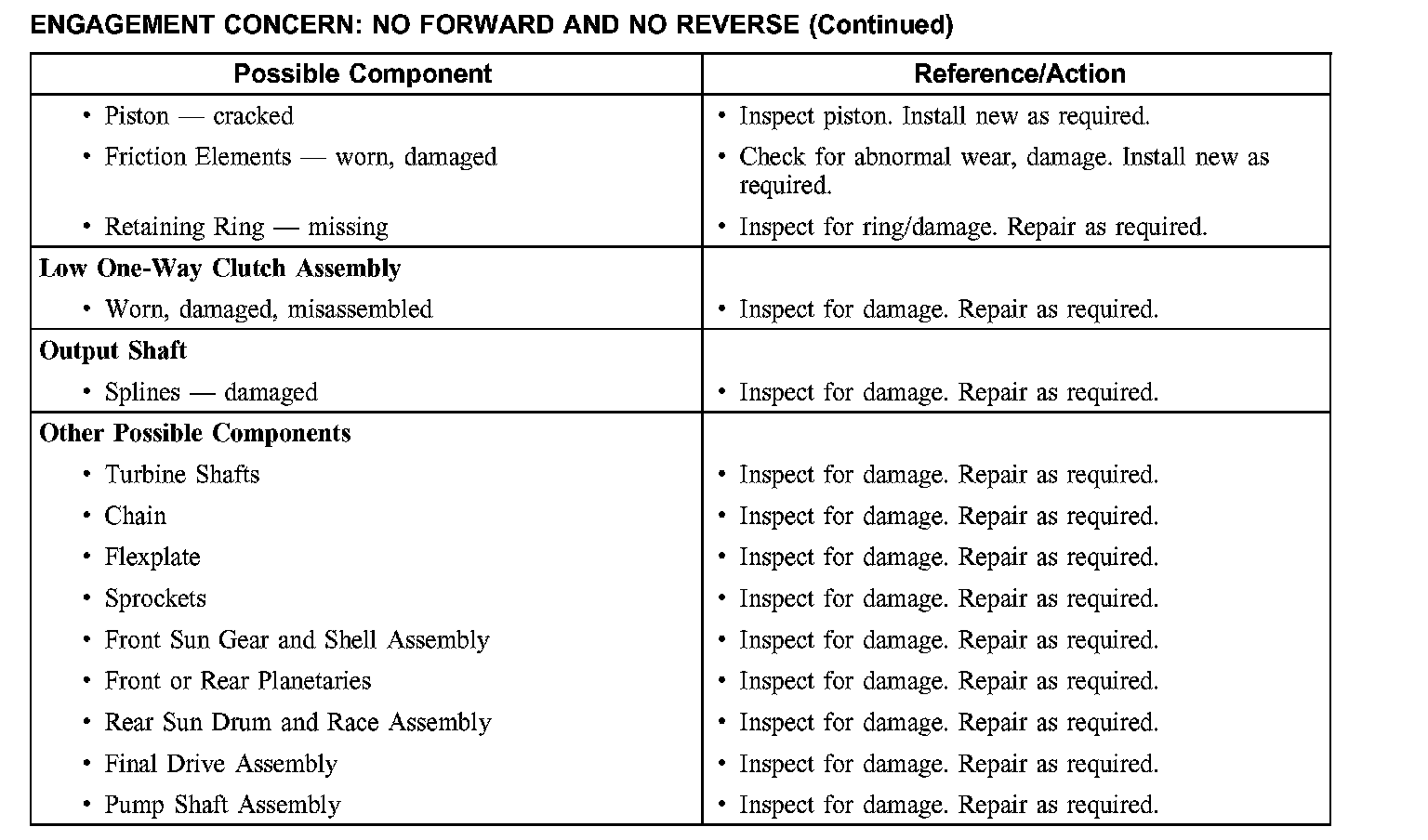

207/307 No Forward and No Reverse (part 3):
