202/302 No Reverse

ENGAGEMENT CONCERN: NO REVERSE

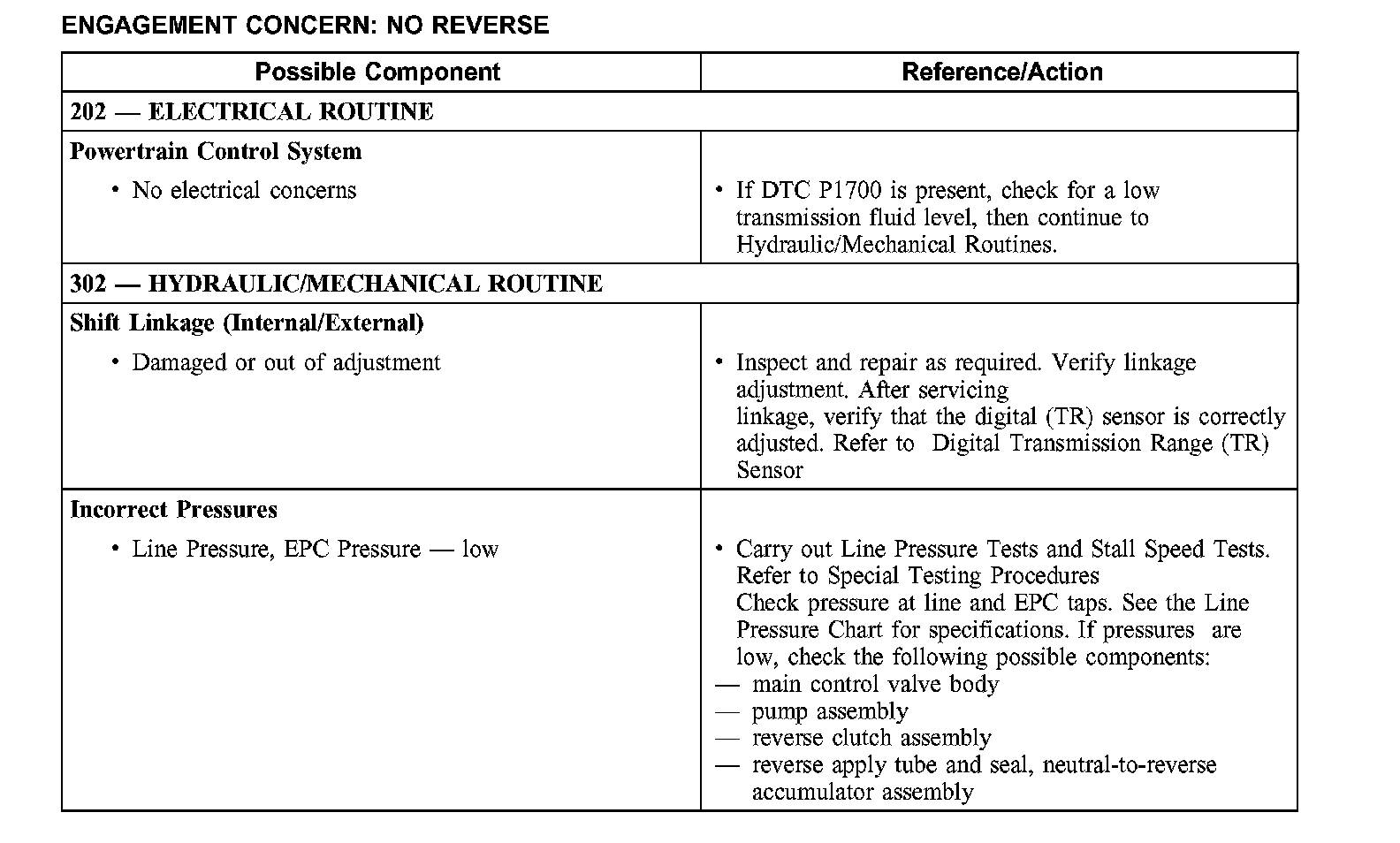

202/302 No Reverse (part 1):

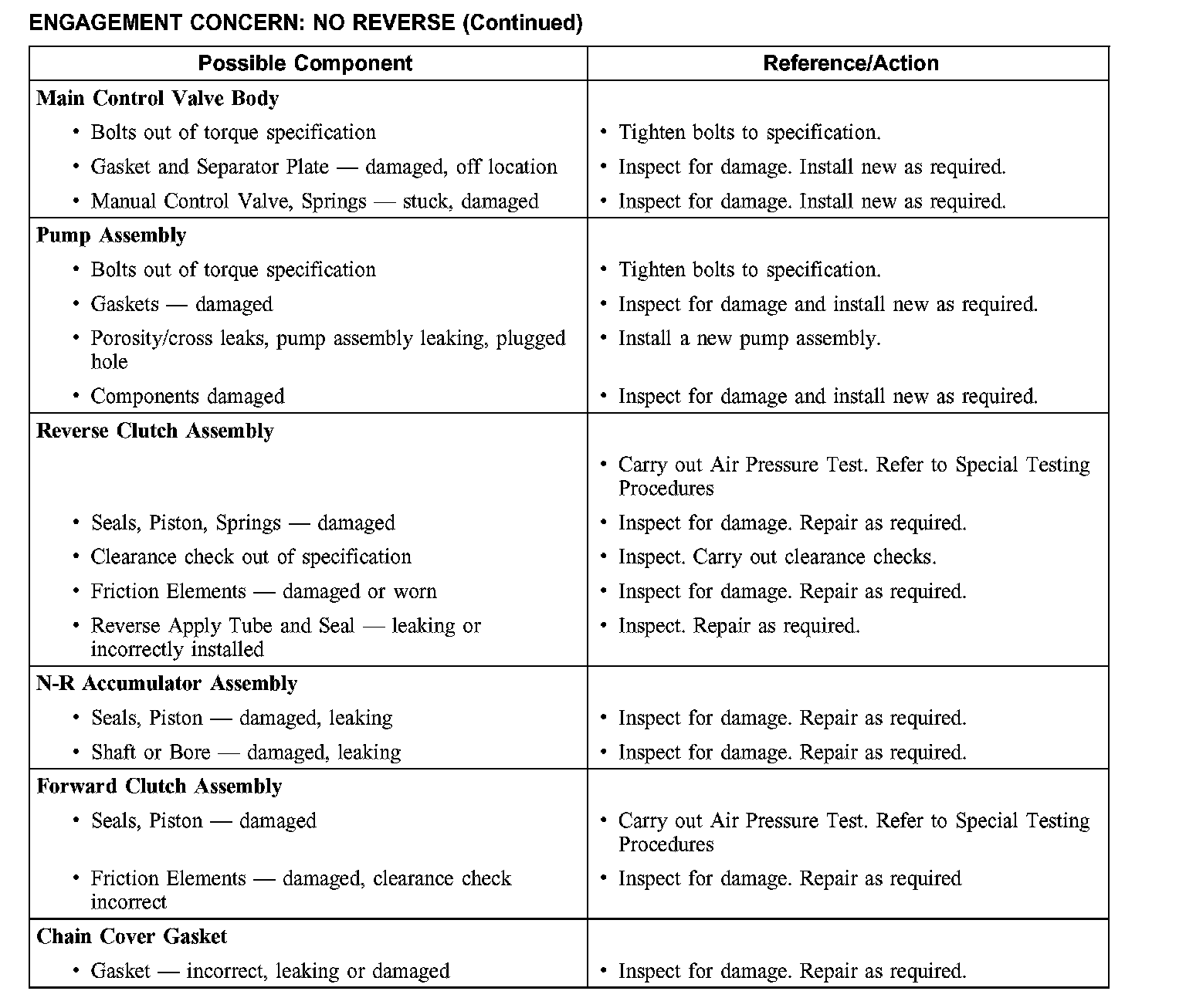

202/302 No Reverse (part 2):
