Test A: the Shift Interlock System Does Not Release/Lock Correctly
Test A: the Shift Interlock System Does Not Release/Lock Correctly
TEST A: THE SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK CORRECTLY

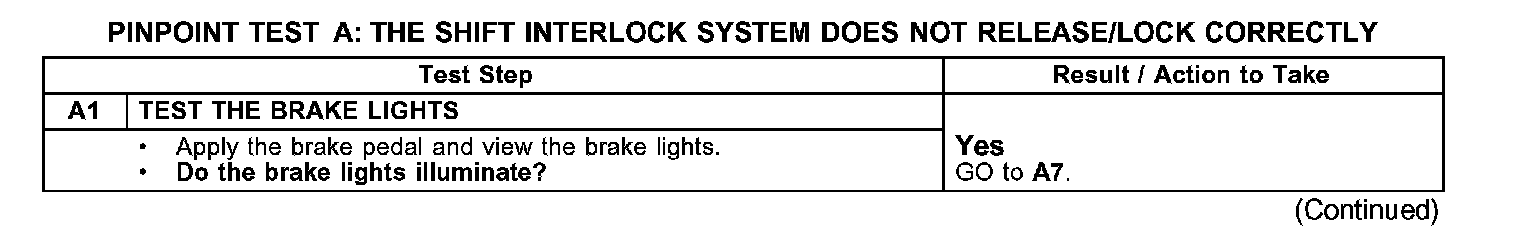

A1:

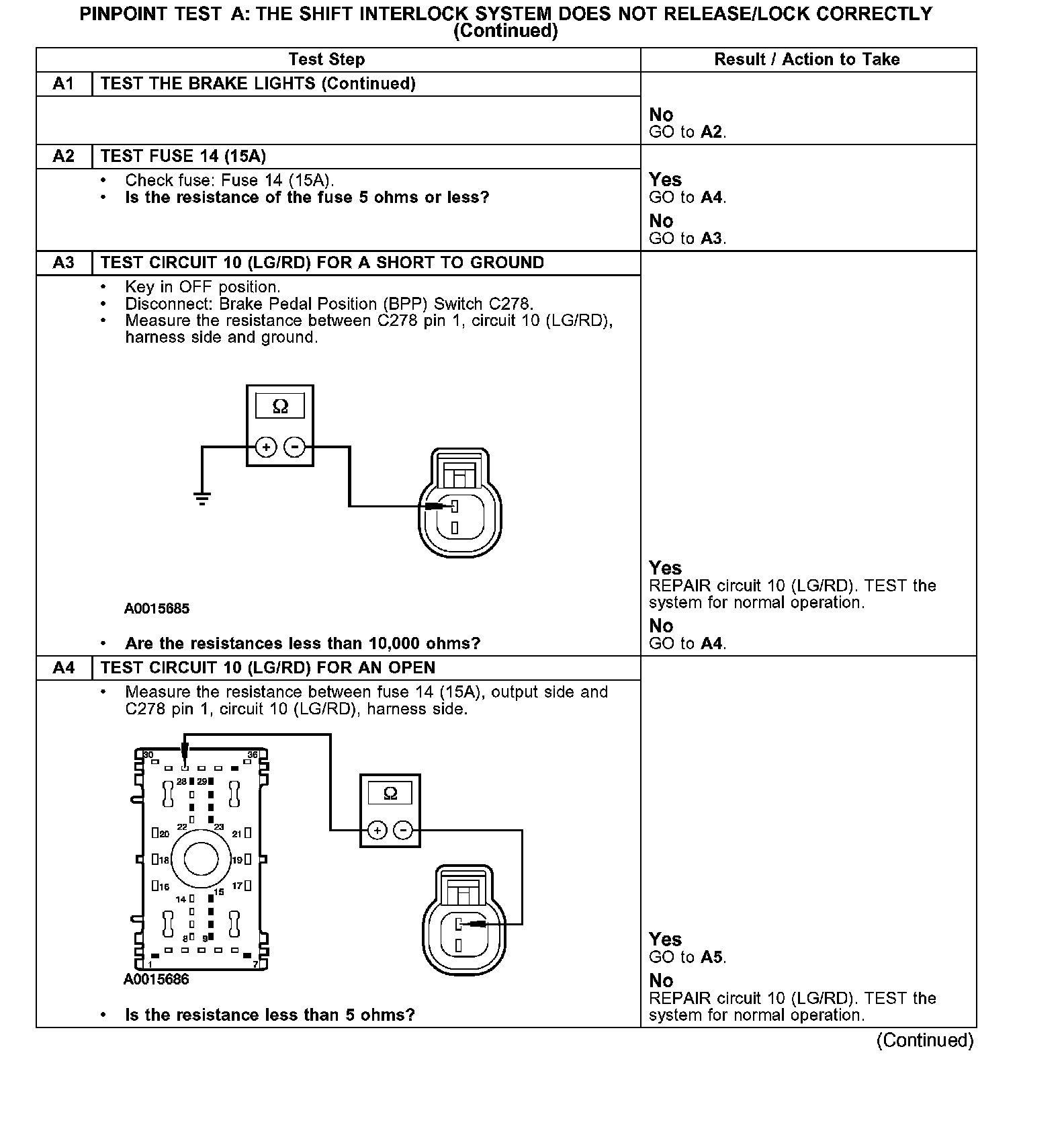

A1-A4:

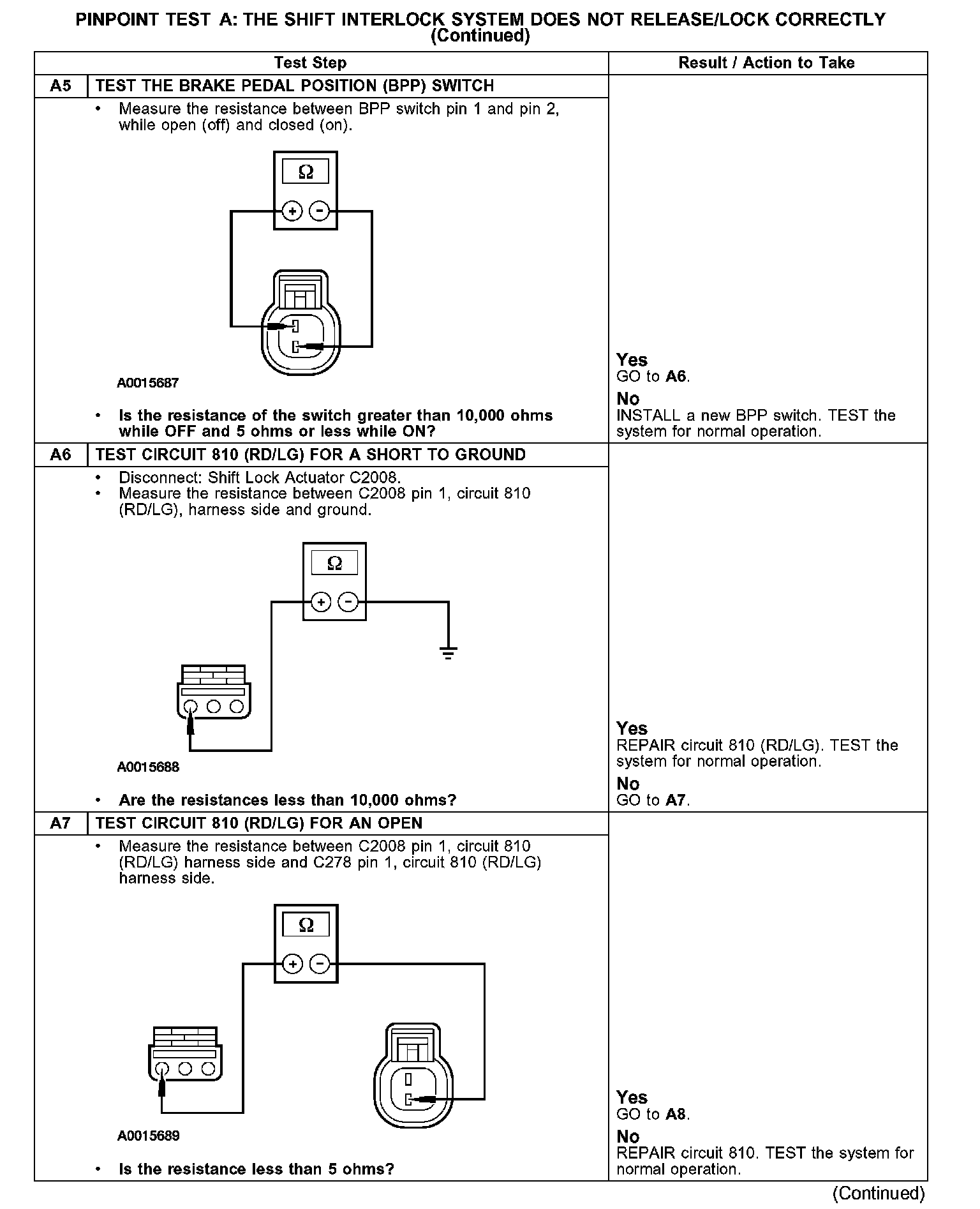

A5-A7:

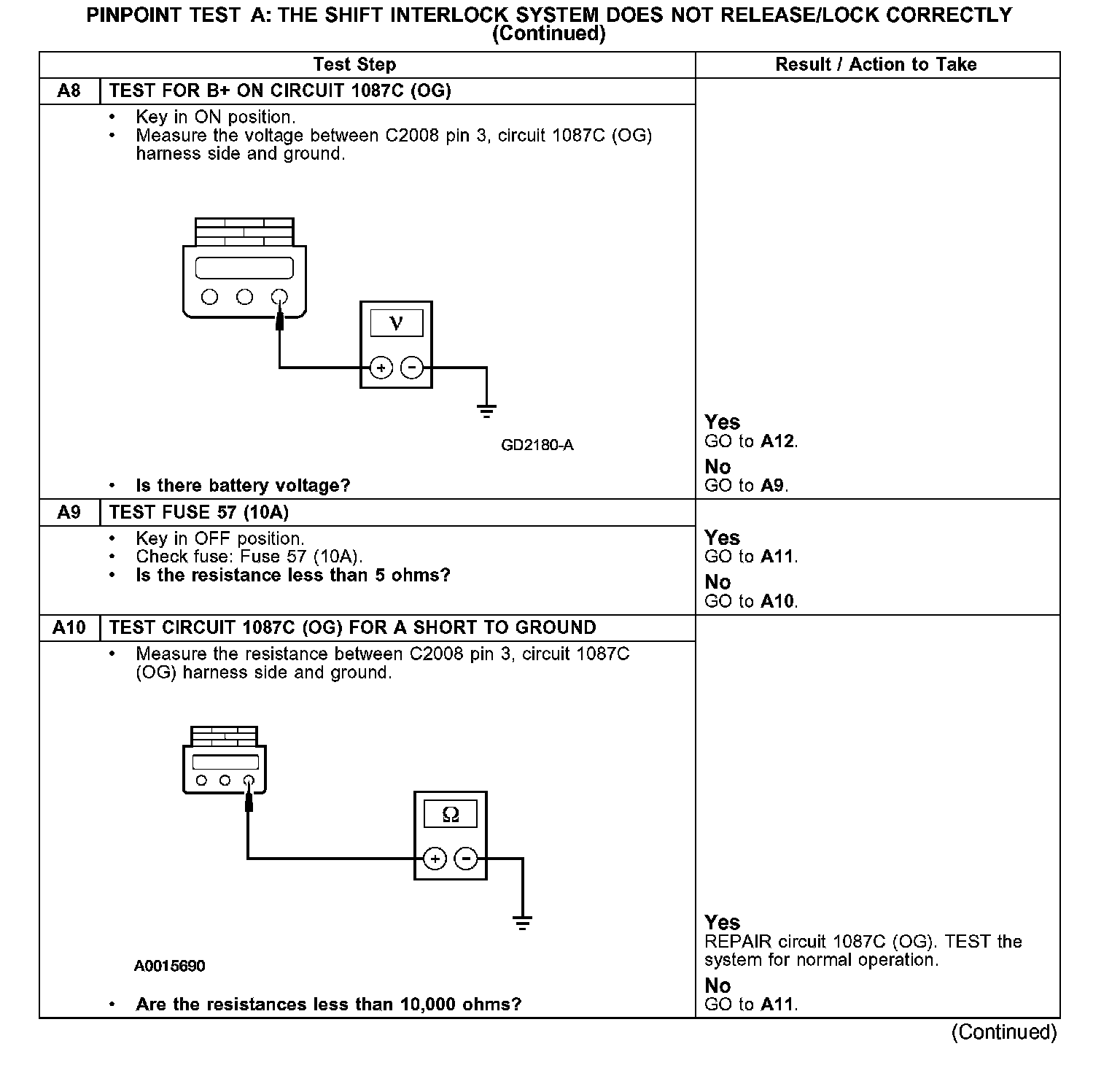

A8-A10:

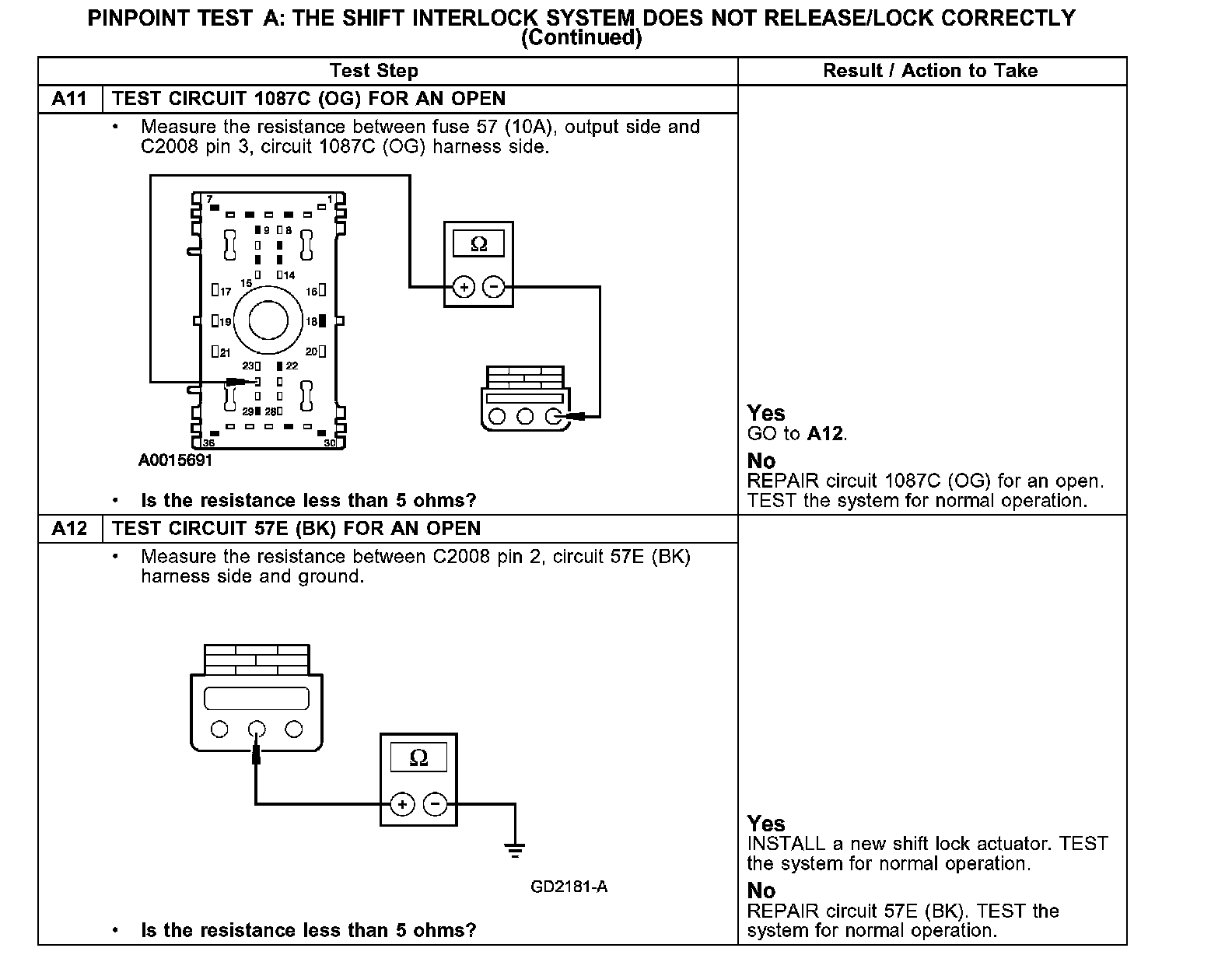

A11-A12:
