Diagnostic Flow Chart

Diagnostic Flow Chart

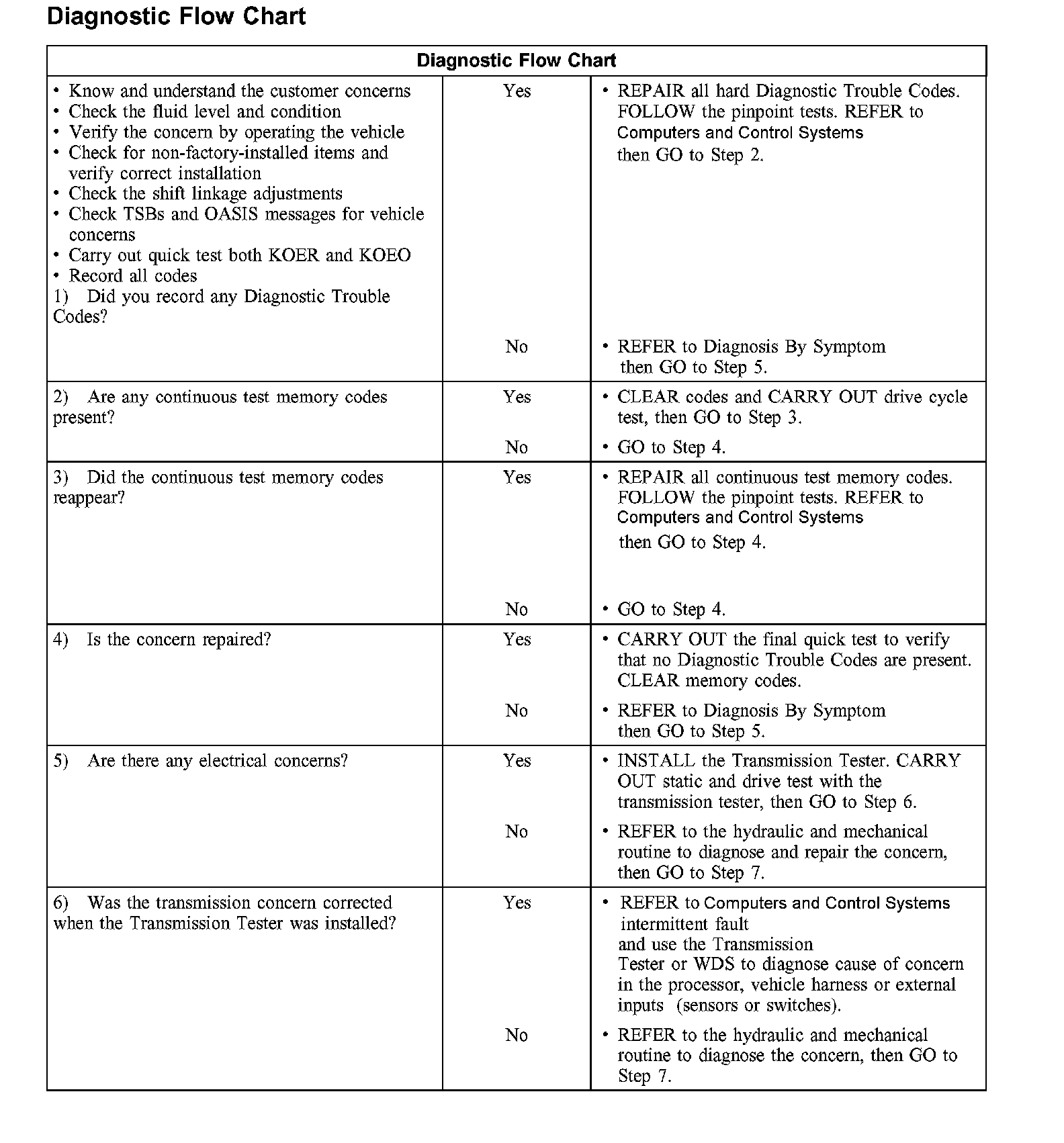

Diagnostic Flow Chart (part 1):

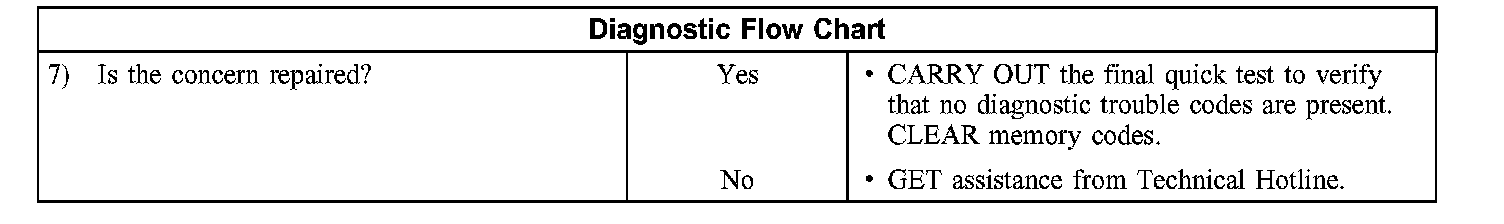

Diagnostic Flow Chart (part 2):
