Transmission Selector Lever Knob
Transmission Selector Lever Knob
Transmission Selector Lever Knob
Removal
1.

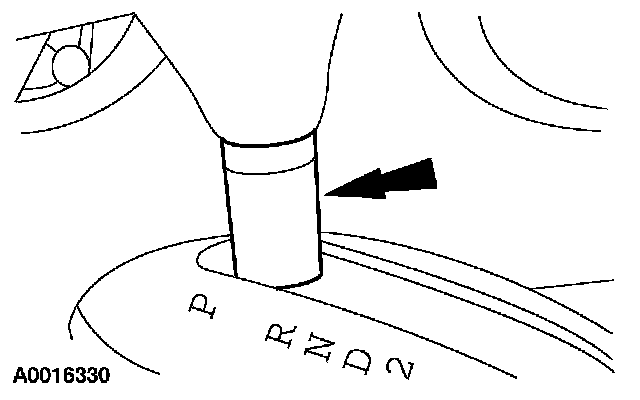

Slide the plastic sleeve down.
2.

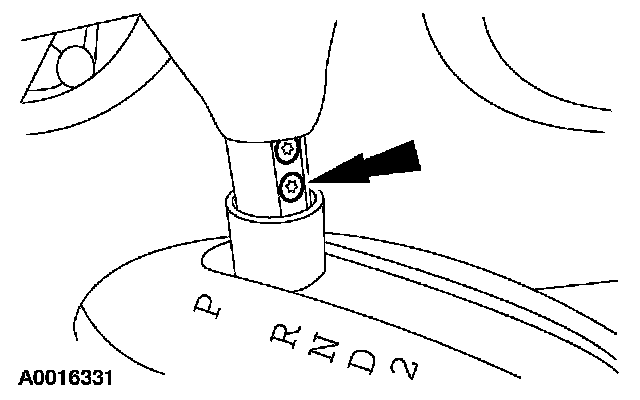

Remove the screws.
3.

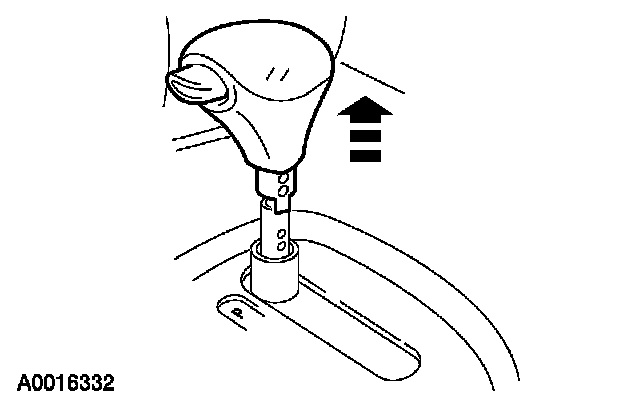

Depress the button and remove the selector lever knob.
Installation
1.
To install, reverse the removal procedure.
