Transmission Selector Lever - Floor Shift

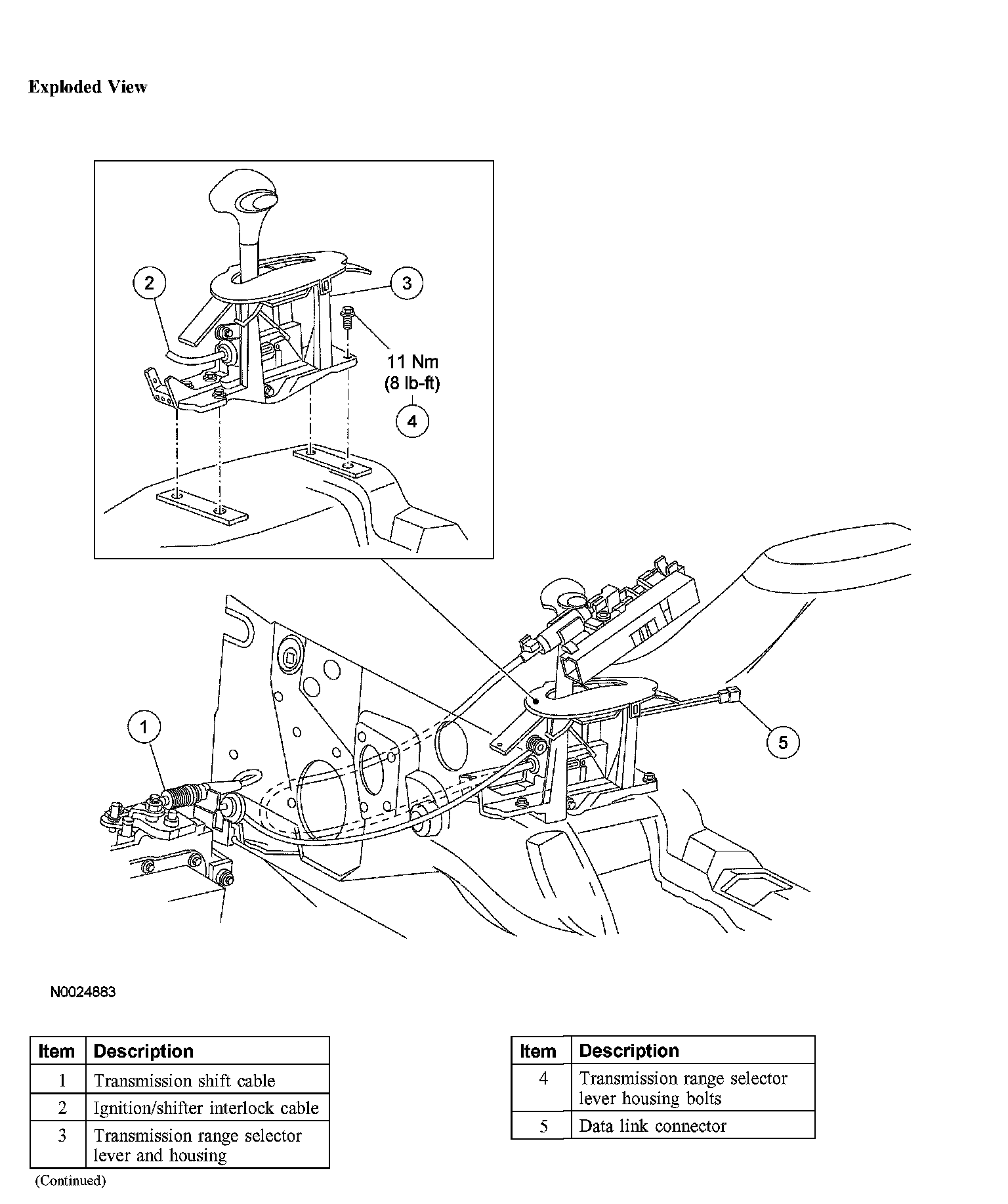

Transmission Selector Lever - Floor ShiftExploded View:
Removal
1. Remove the center console.

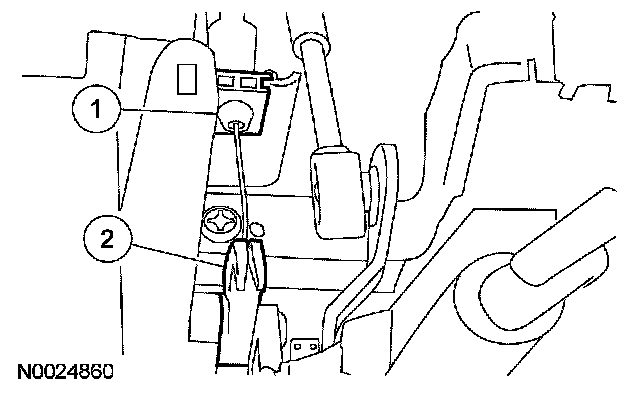

2. Remove the ignition/shifter interlock cable from the floor shift.
1 Disconnect the cable from the bracket.
2 Disconnect the cable from the shift cam.

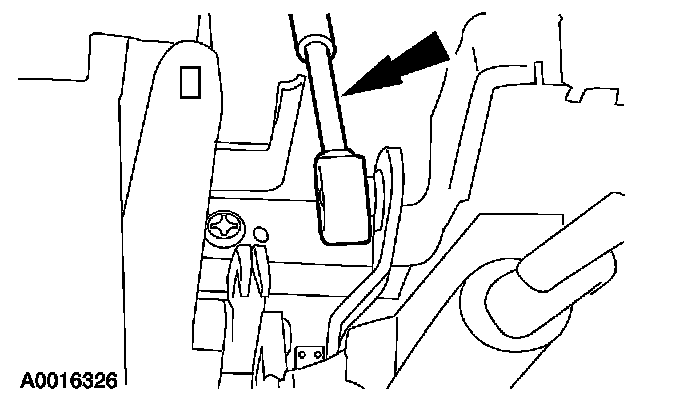

3. Disconnect the selector lever cable from the selector lever.
^ Remove the selector lever cable from the transaxle range selector lever.
^ Depress the tab on the selector lever cable and remove the cable from the selector lever housing.

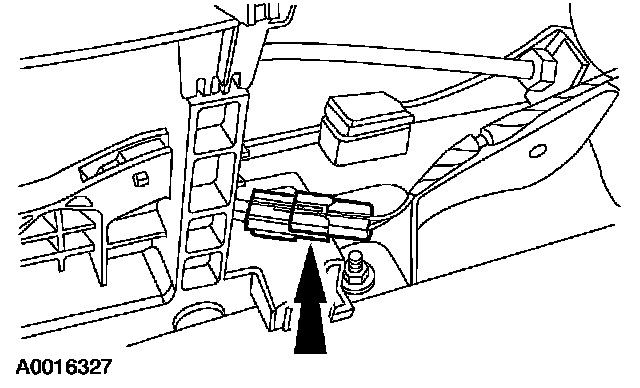

4. Disconnect the electrical connector.

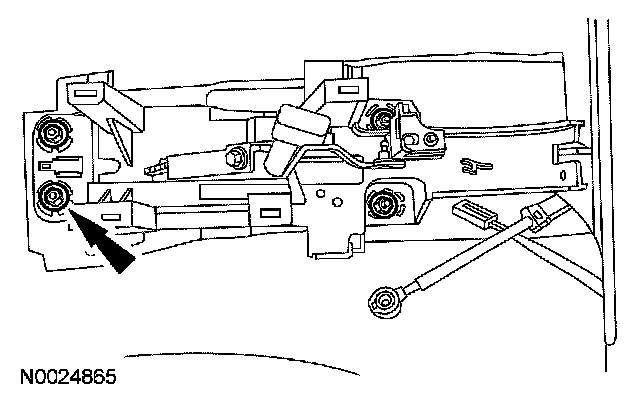

5. Remove the transmission selector lever bolts and nuts.
^ To install, tighten to 11 Nm (8 ft. lbs.).
6. Remove the transmission selector lever.
Installation
1. To install, reverse the removal procedure.
