Low-Intermediate One-Way Clutch

Low-Intermediate One-Way Clutch

Disassembly

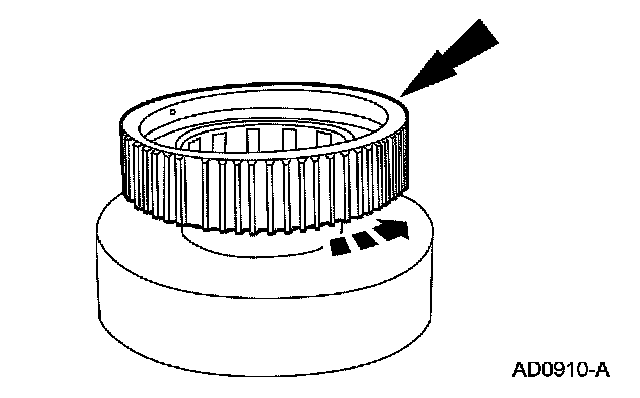

1. Remove the low/intermediate one-way clutch assembly.

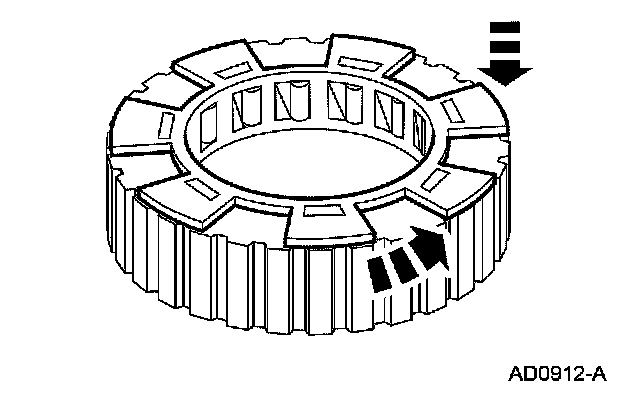

2. Remove the low/intermediate one-way clutch roller and cage. Rotate clockwise to unlock.

Assembly

1. NOTE: Before installing, clean and inspect the low/intermediate one-way clutch rollers and cage for cracks, brinelling or scoring. Install new if necessary.

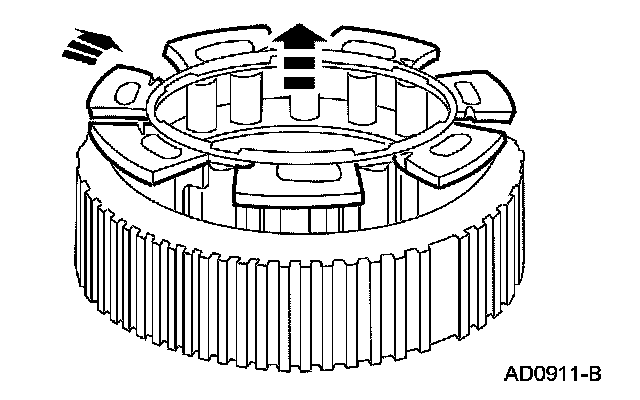

Install the low/intermediate one-way clutch roller and cage. Rotate counterclockwise to lock in place.

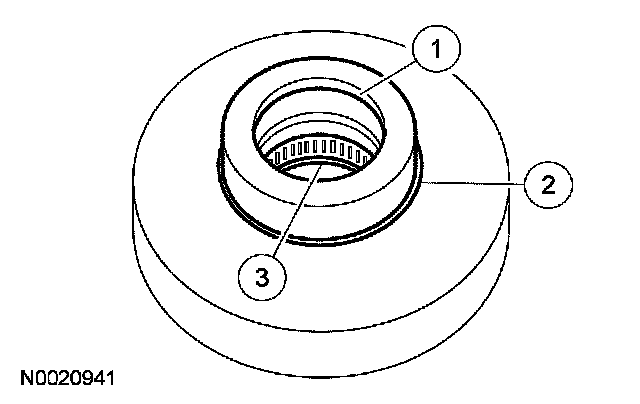

2. Clean and inspect the rear sun gear assembly.
1 Inspect the bushing.
2 Inspect the inner race.
3 Inspect the bearing.

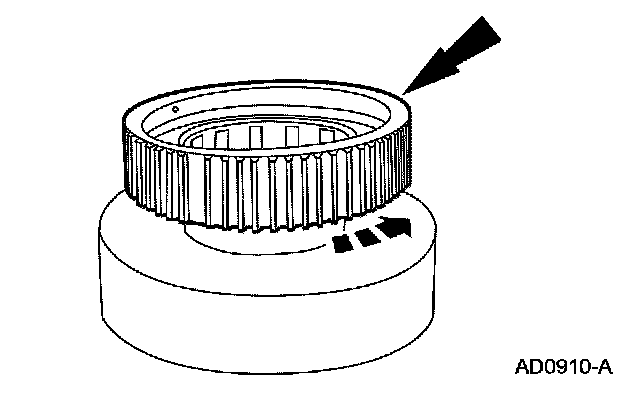

3. NOTE: The outer splined race should rotate counterclockwise and hold clockwise.





Install the low/intermediate one-way clutch outer race.
