Turbine Shaft Speed (TSS) Sensor

Turbine Shaft Speed (TSS) Sensor

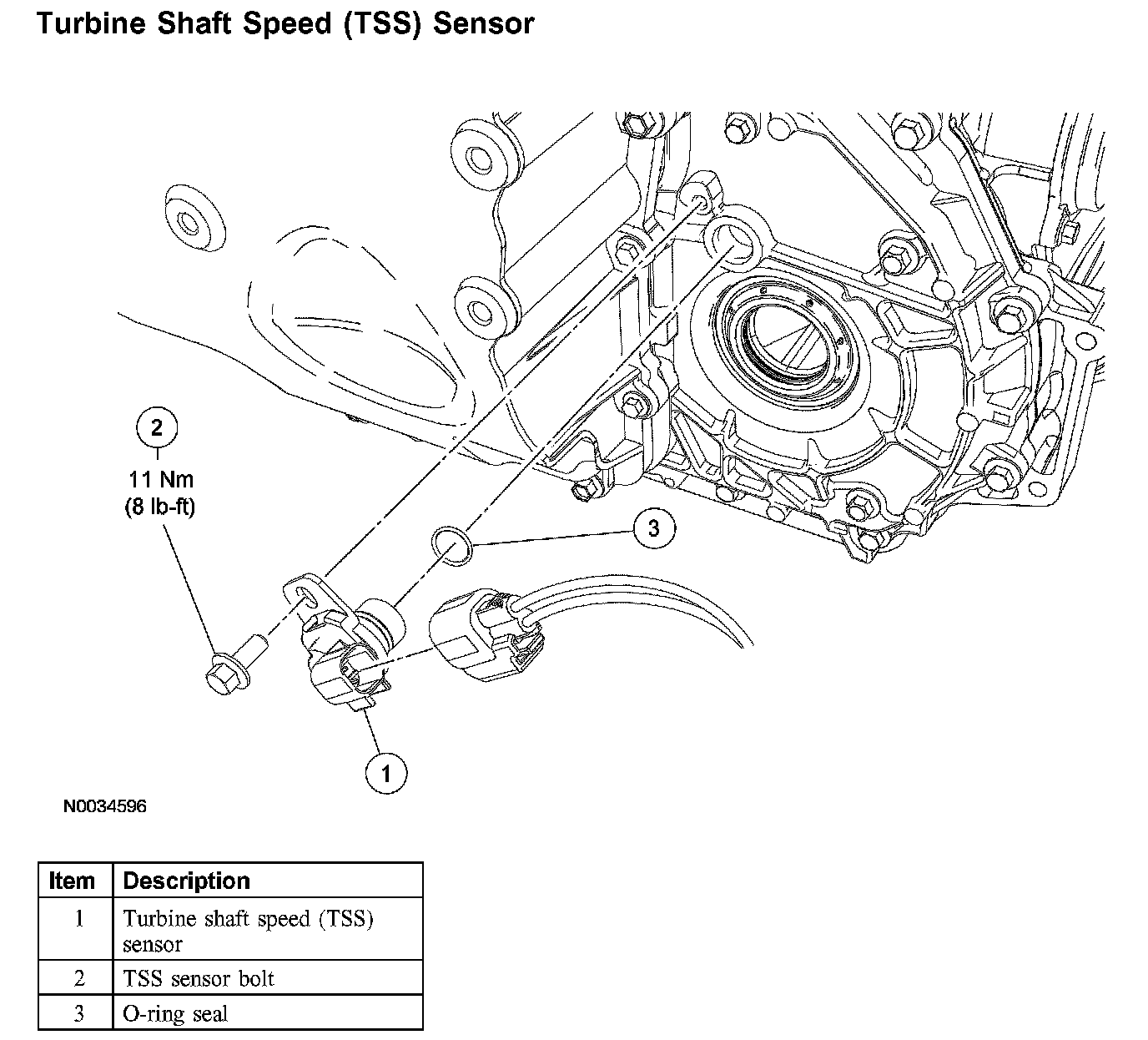

Turbine Shaft Speed (TSS) Sensor:

Removal and Installation
1. Raise the vehicle on a hoist.





2. Disconnect the turbine shaft speed (TSS) sensor connector.

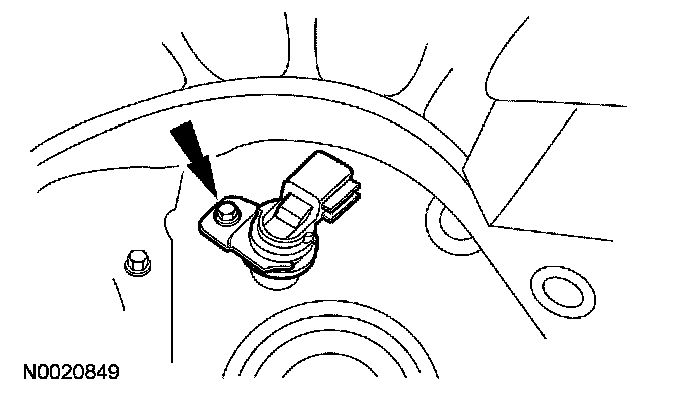

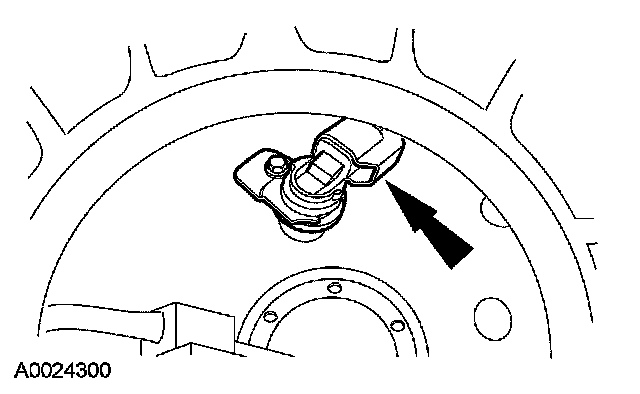

3. Remove the TSS sensor.
^ To install, tighten to 11 Nm (8 ft. lbs.).
4. To install, reverse the removal procedure.
