Output Shaft Speed (OSS) Sensor)

Output Shaft Speed (OSS) Sensor)

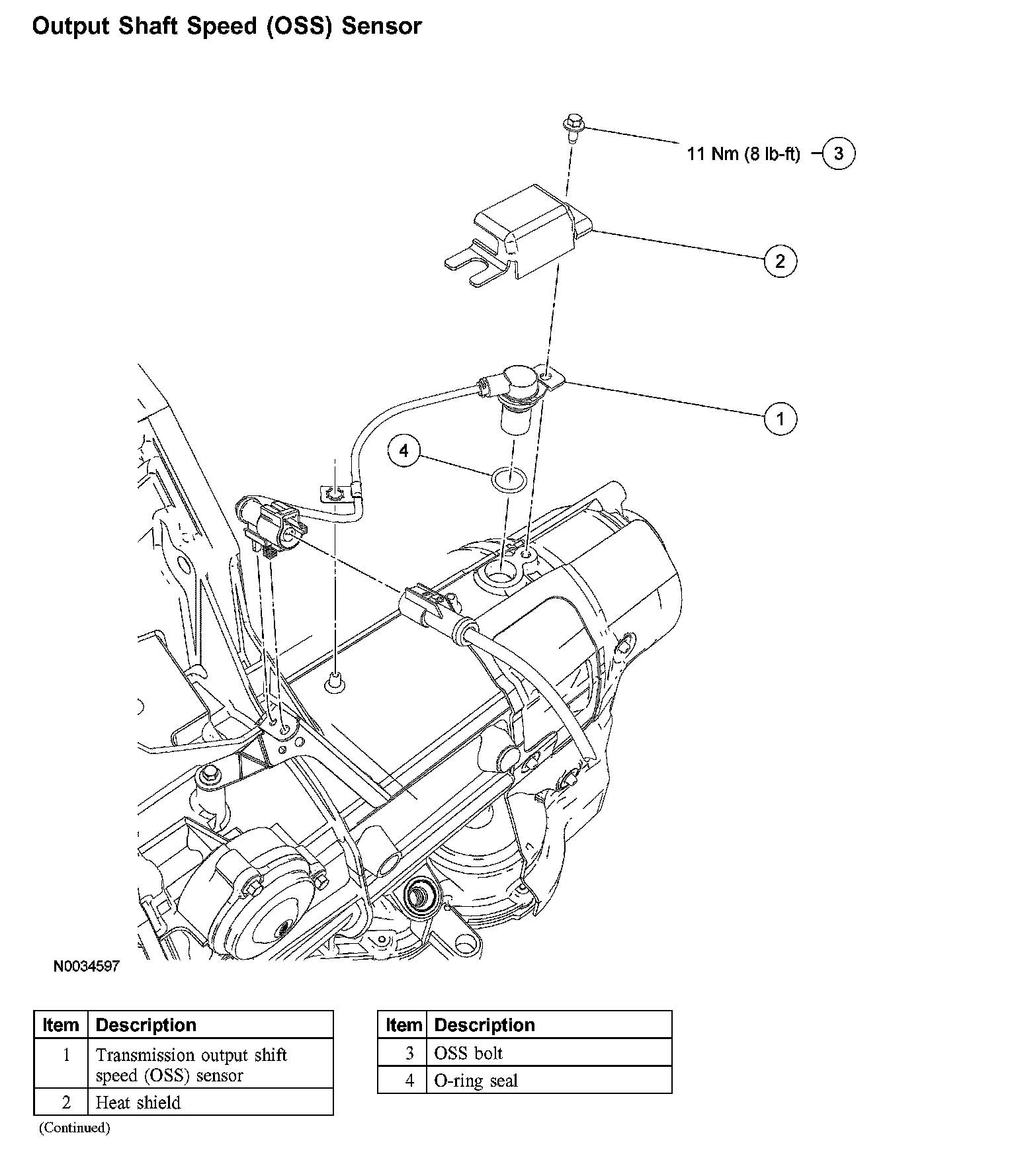

Output Shaft Speed (OSS) Sensor):

Removal and Installation

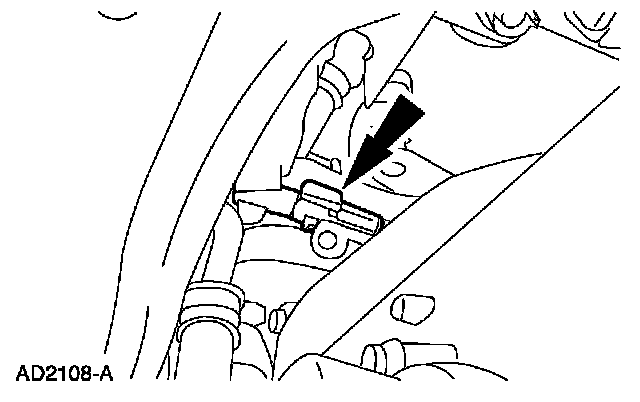

1. Disconnect the output shaft speed (OSS) sensor connector.

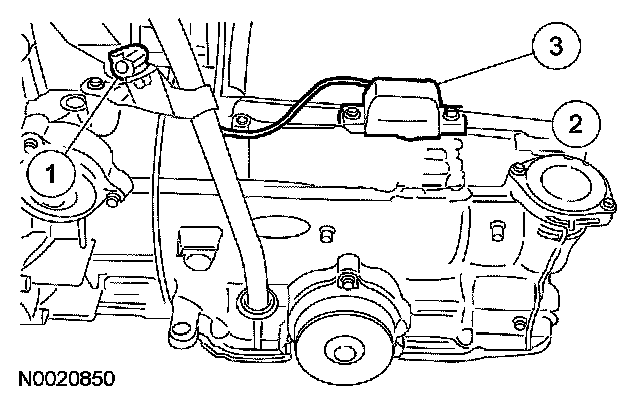

2. NOTE: The OSS sensor is located under the RH exhaust manifold.





Remove the OSS sensor cover.
1 Remove the connector.

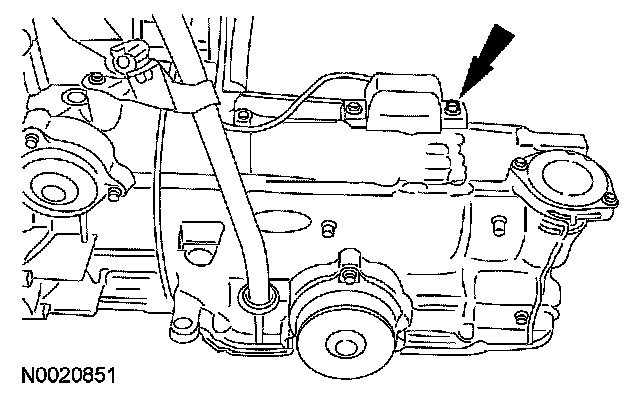

2 Remove the bolt.
^ To install, tighten to 11 Nm (8 ft. lbs.).
3 Remove the cover.

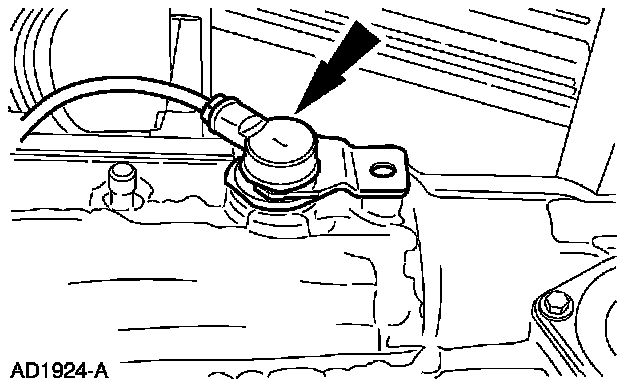

3. Remove the OSS sensor.

4. NOTE: Lubricate the OSS O-ring before installing the sensor.





To install, reverse the removal procedure.
