Main Components and Functions

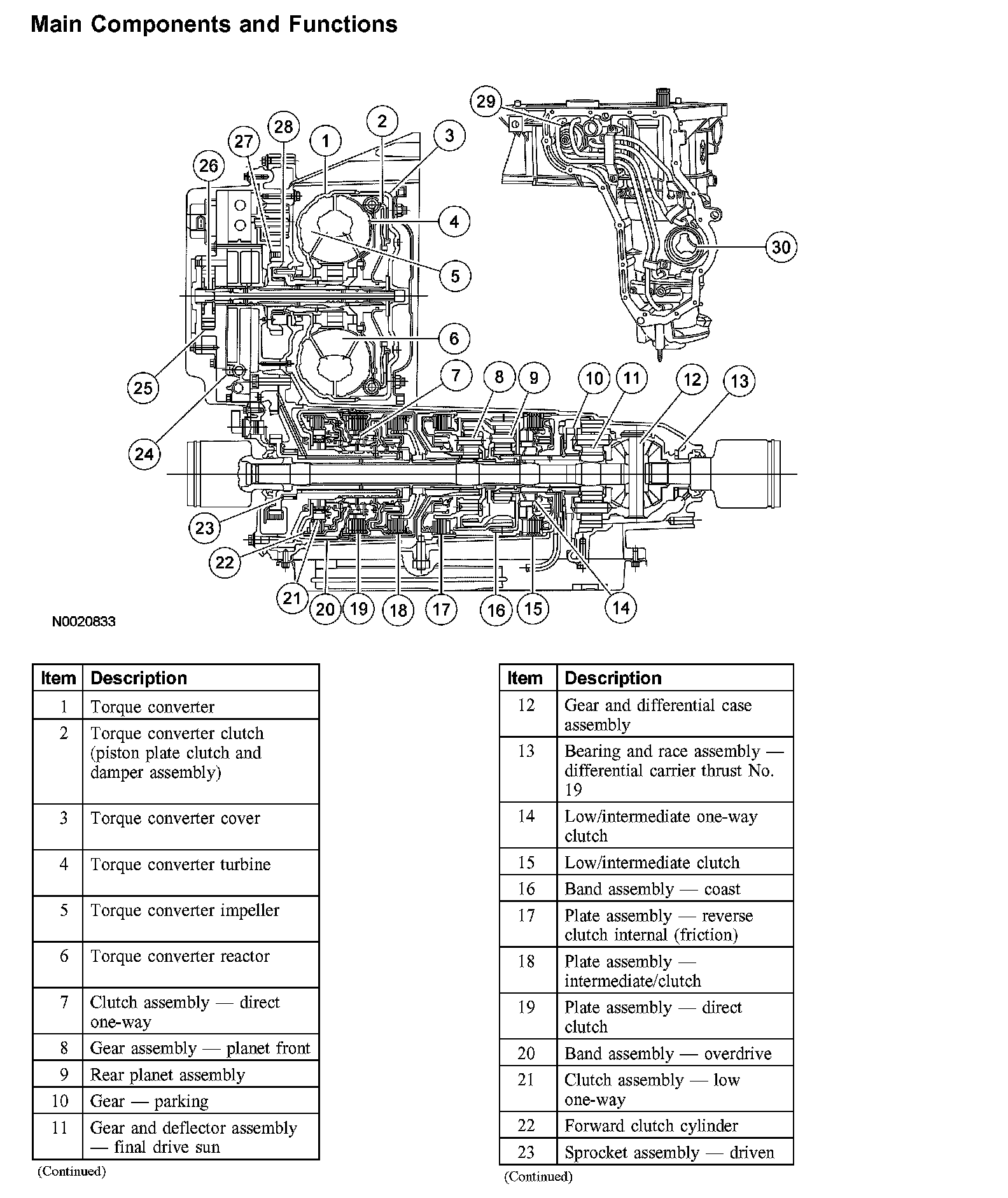

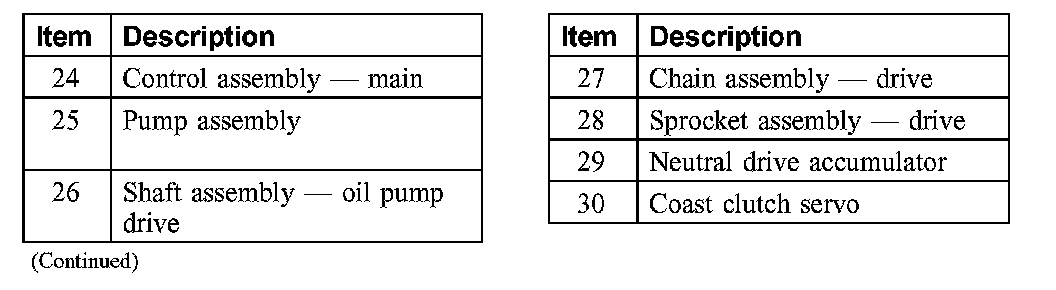

Main Components and Functions
Main Components and Functions:
Main Components and Functions:
