External Controls

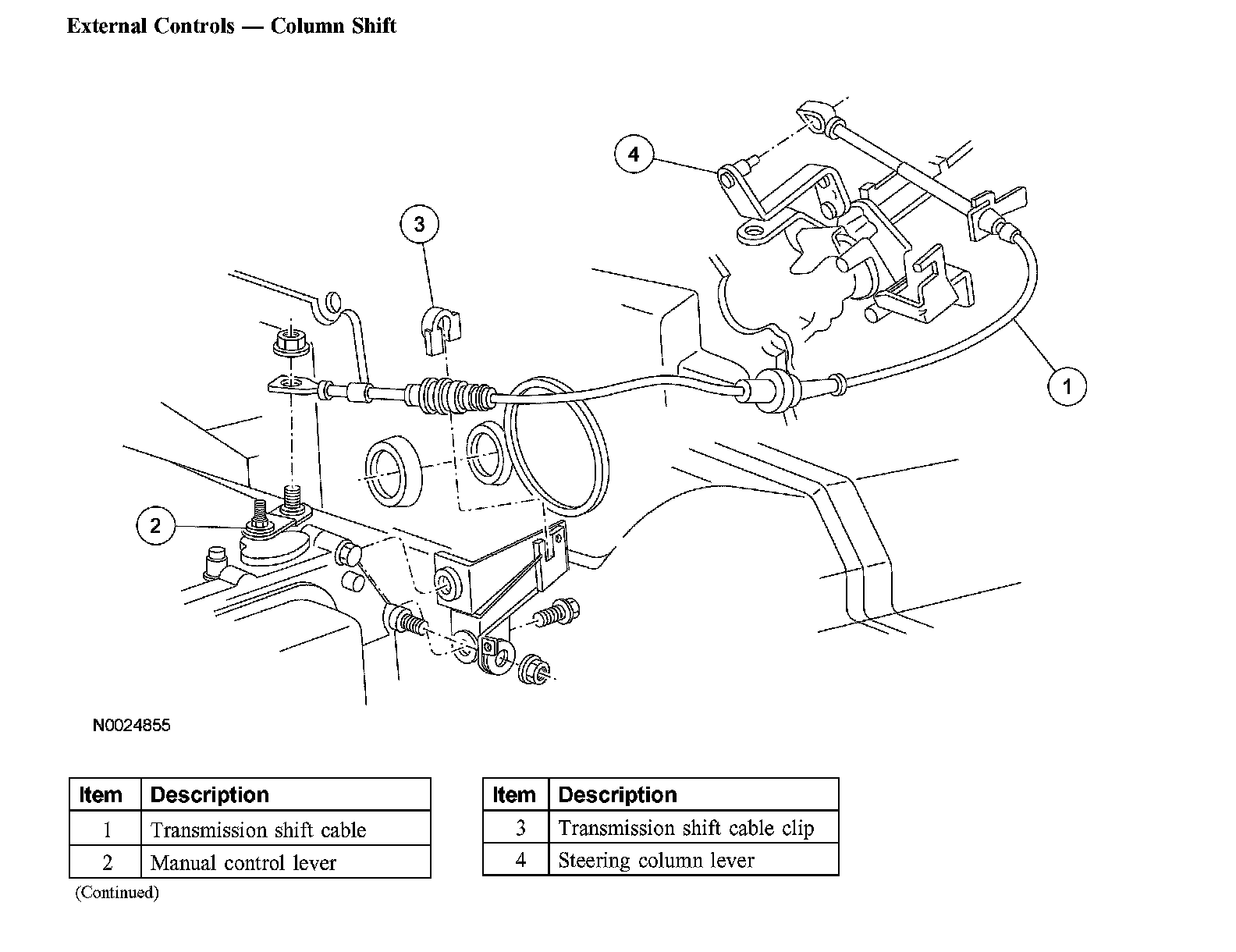

External ControlsExternal Controls - Column Shift:

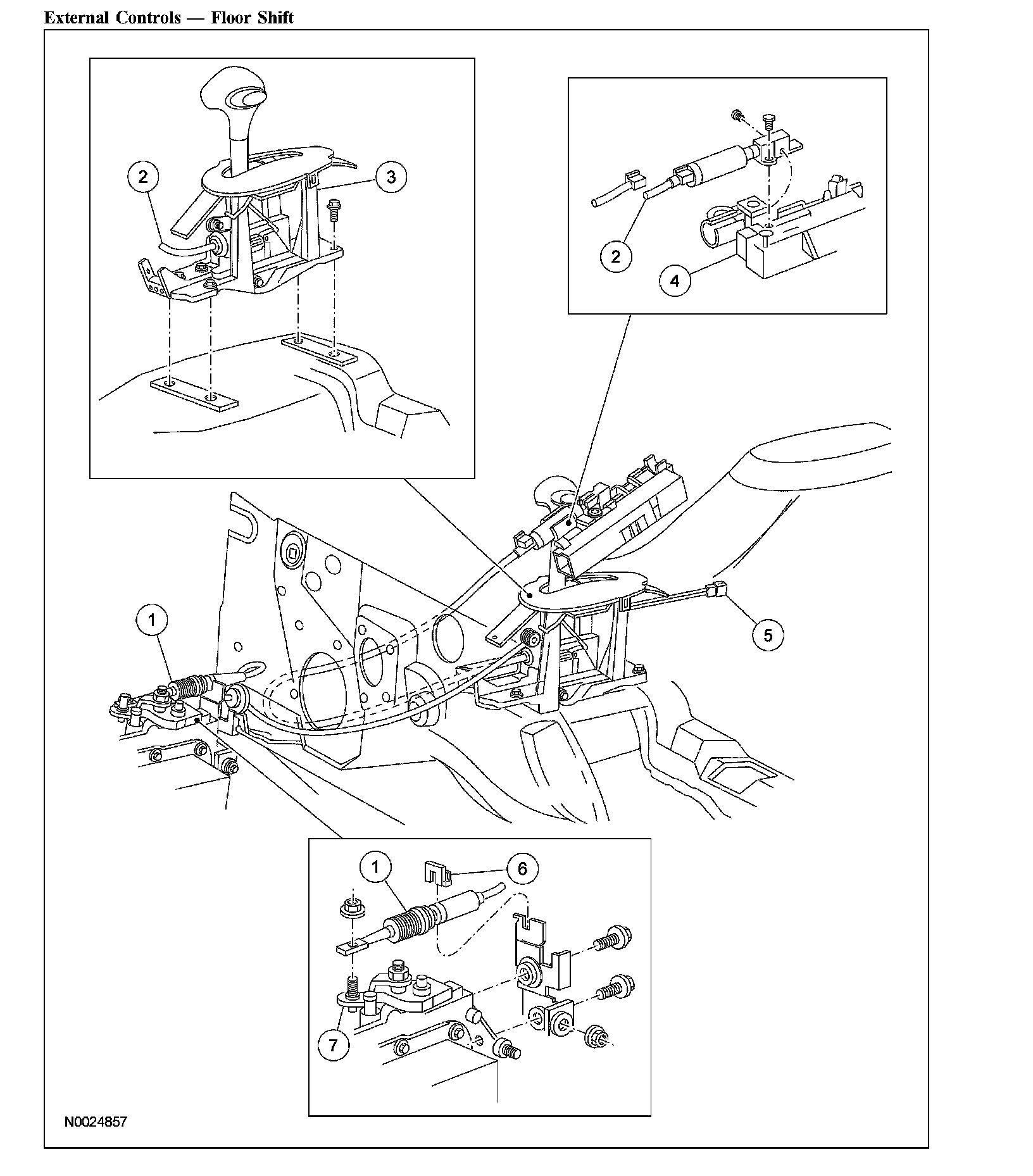

External Controls - Floor Shift:

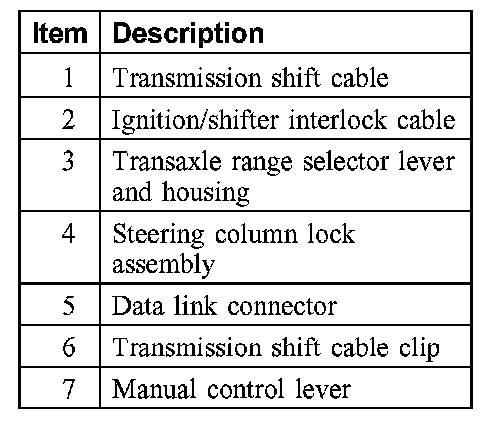

External Controls - Floor Shift:
The transaxle shift control linkage consists of:
^ a steering column or floor-mounted transaxle range selector lever.
^ a shift cable connecting the steering column to the transaxle range selector lever.
^ an ignition/shifter interlock cable on floor-shift vehicles which connects the transaxle range selector lever to the steering column lock assembly.
^ an ignition/shift lock actuator that is integral to the ignition/shifter interlock cable.
The ignition/shifter interlock cable:
^ locks the transaxle range selector lever in the PARK position when the ignition switch is in the LOCK position.
^ requires the transaxle range selector lever to be in the PARK position to turn the ignition switch to the LOCK position.
