Selector Lever Cable Adjustment - Floor Shift

Selector Lever Cable Adjustment - Floor Shift

NOTE: The shift control cable adjustment procedure must be carried out in the order shown.

1. Position the transaxle range selector lever in OVERDRIVE.

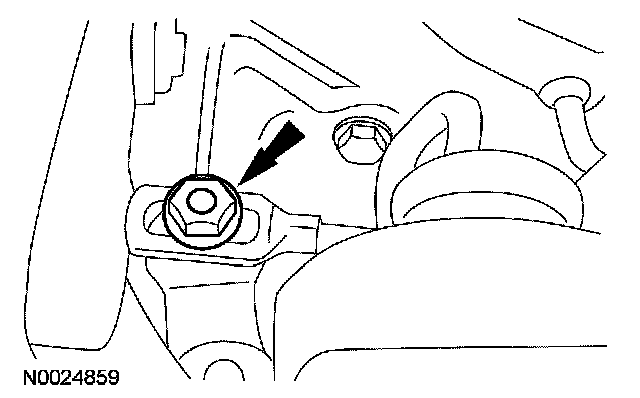

2. Loosen the manual control lever-to-shift control cable nut.





3. Position the manual control lever in OVERDRIVE.
^ Tighten to 20 Nm (15 ft. lbs.).
4. Check the operation of the transaxle in each transaxle range selector lever position.
