Selector Lever Cable Adjustment - Column Shift

Selector Lever Cable Adjustment - Column Shift

NOTE: The shift control adjustment procedure must be carried out in the order shown.

1. Position the transaxle range selector lever in OVERDRIVE. Hang a 1.4 kg (3 lb.) weight on the lever.

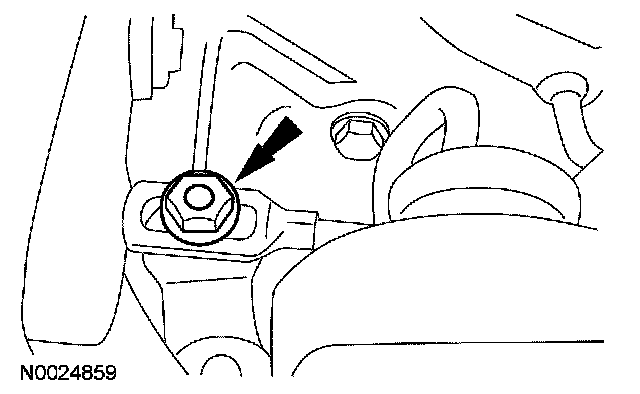

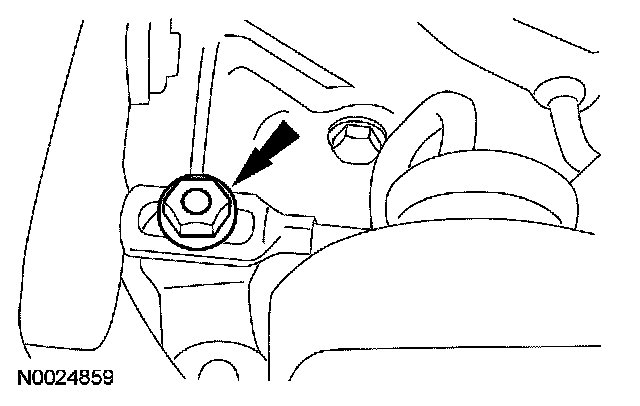

2. Loosen the manual control lever-to-shift control cable nut.





3. Position the manual control lever in OVERDRIVE then install the nut.
^ Tighten to 20 Nm (15 ft. lbs.).
4. Remove the 1.4 kg (3 lb.) weight. Check the operation of the transaxle in each transaxle range selector lever position.
