Test E: The Ignition Key Is Hard To Turn

Test E: The Ignition Key Is Hard To Turn

Normal Operation
The ignition lock cylinder is the mechanical link to the ignition switch.

Possible causes
^ Ignition switch
^ Ignition key
^ Ignition lock cylinder

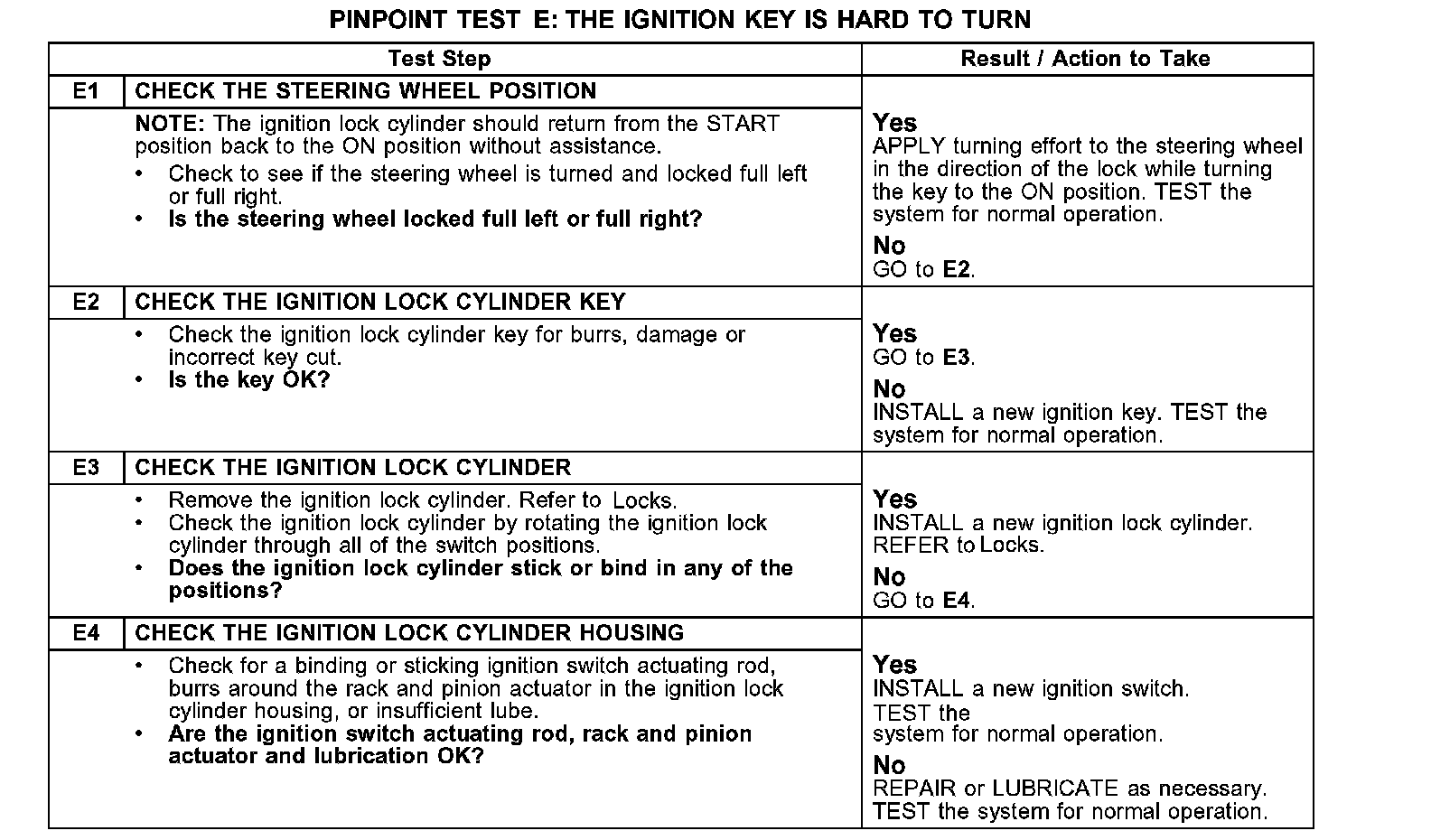

E1-E4:
