Steering Column - Console Shift

Steering Column - Console Shift

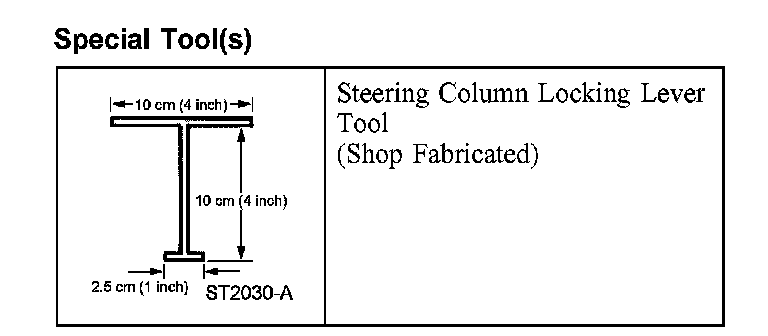

Special Tool(s):

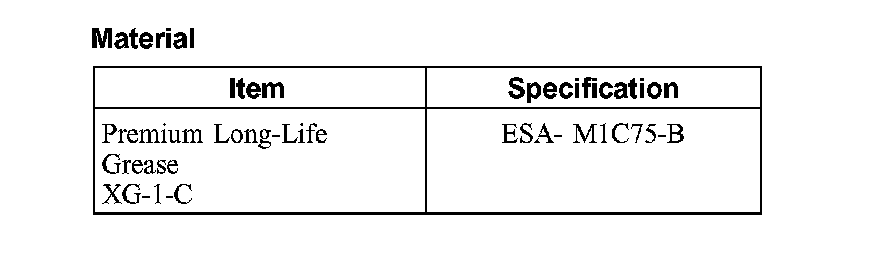

Material:

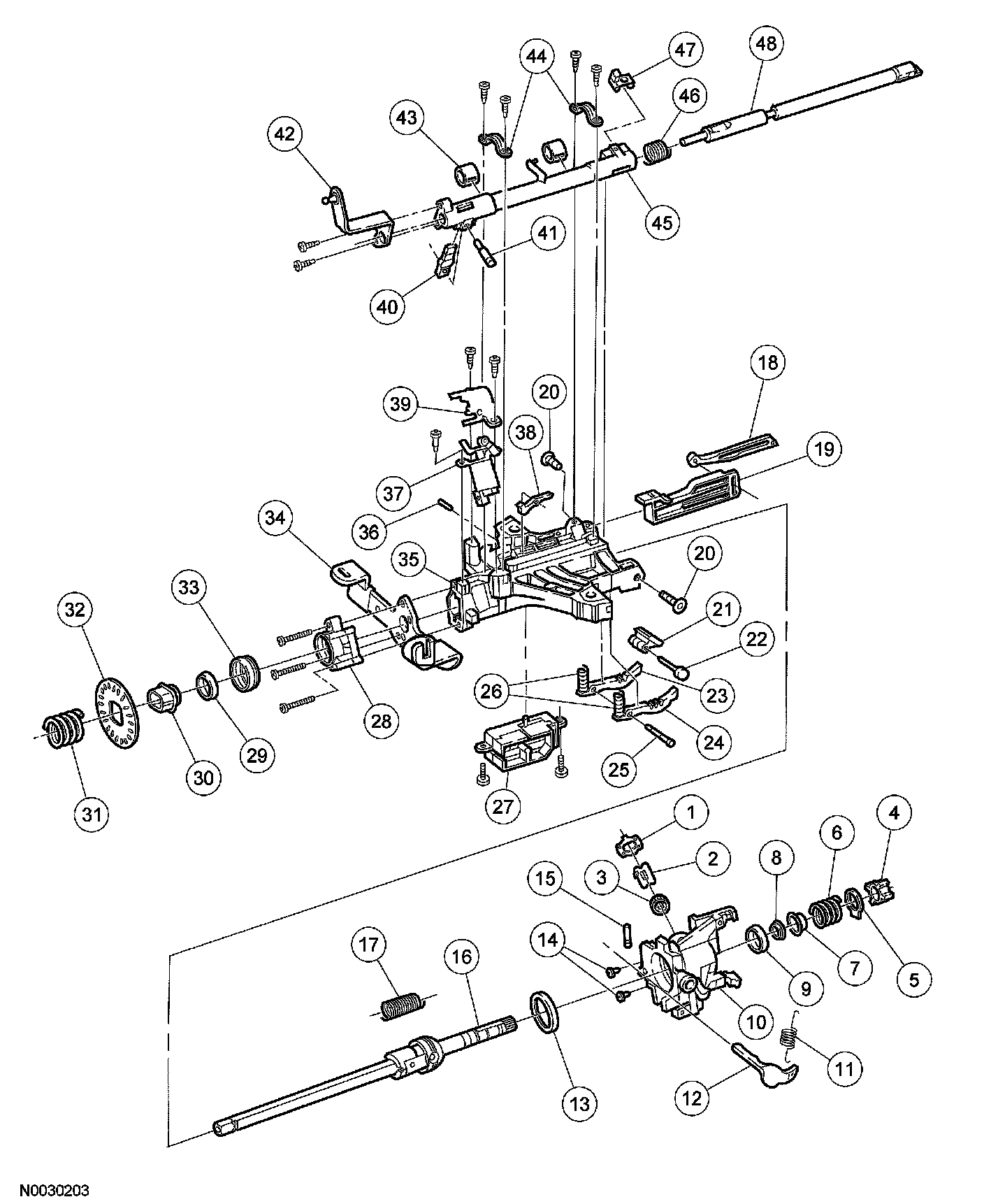

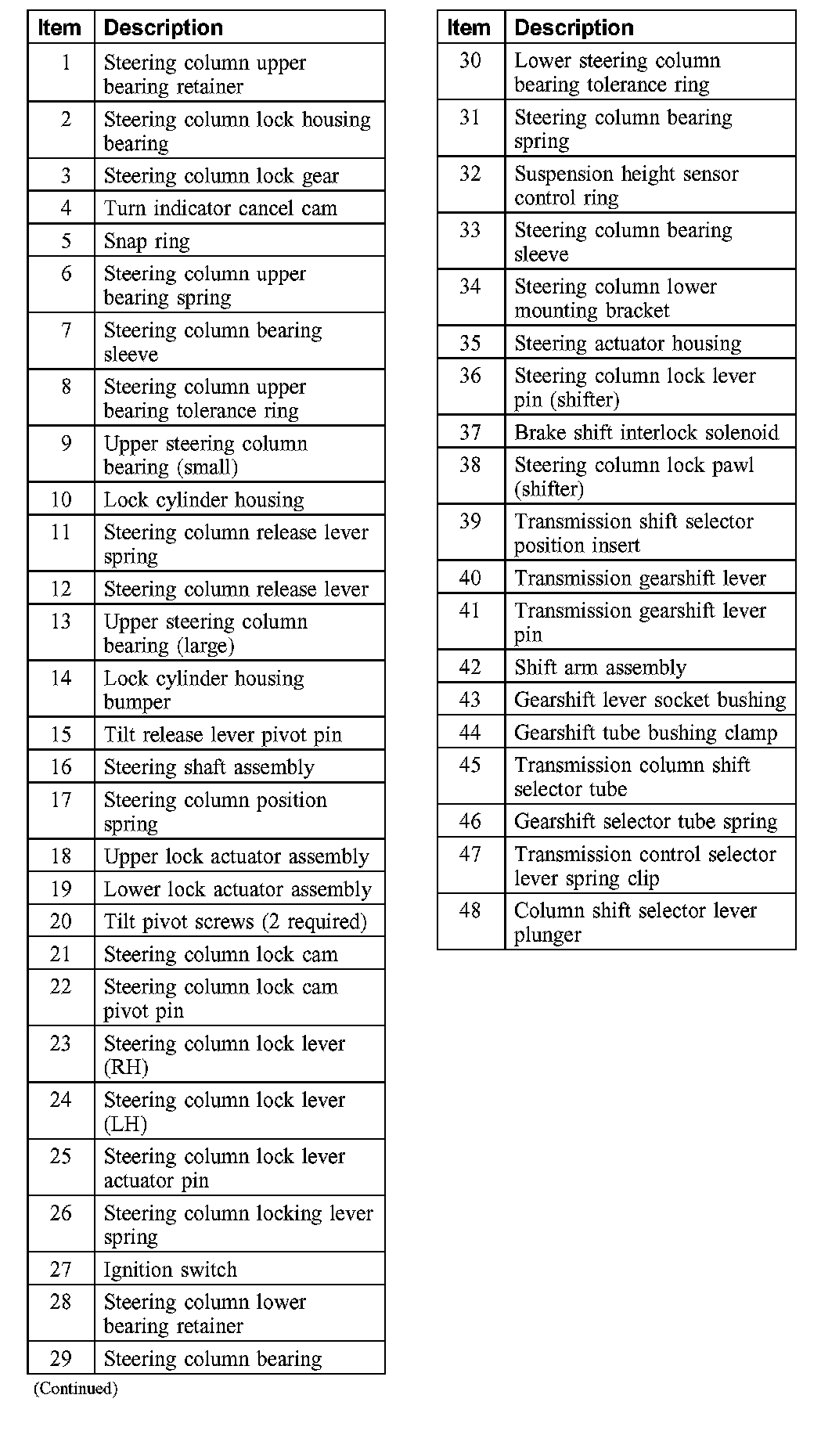

Disassembly

1. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, notes and instructions in the steering column removal and installation procedure.

Remove the steering column.
2. Remove the clockspring.

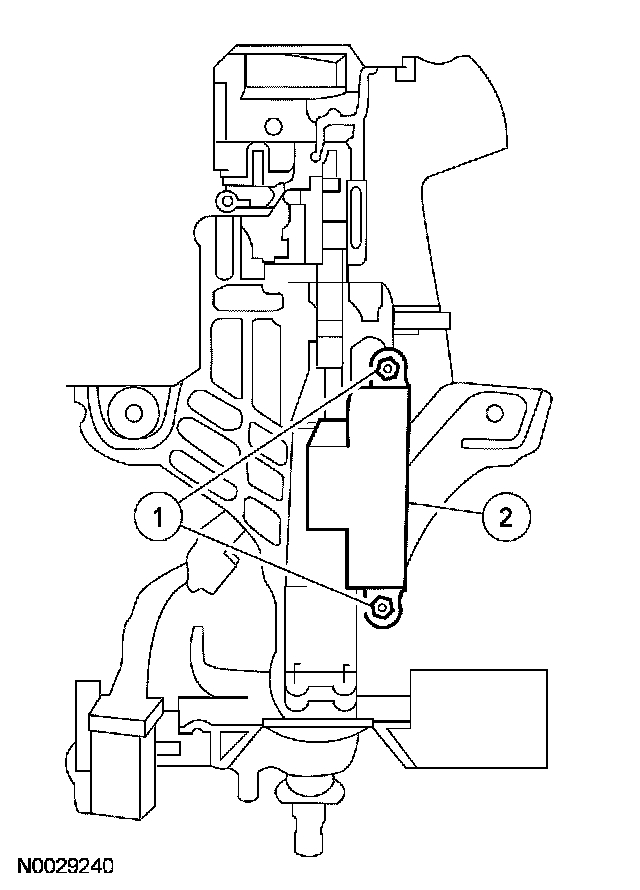

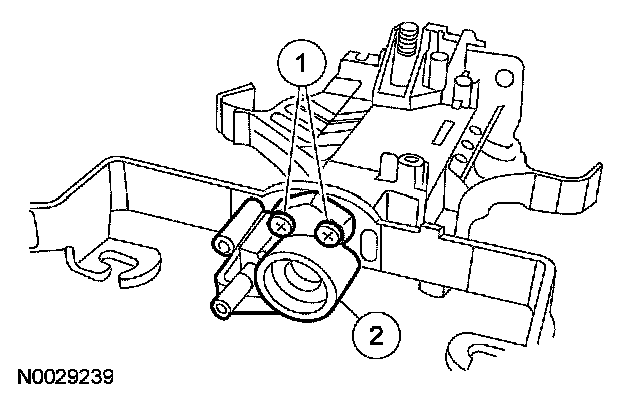

3. Remove the ignition switch.
1 Remove the 2 screws.
2 Remove the ignition switch.

4. CAUTION: Note the position of the steering column lock gear, bearing and retainer prior to removal.

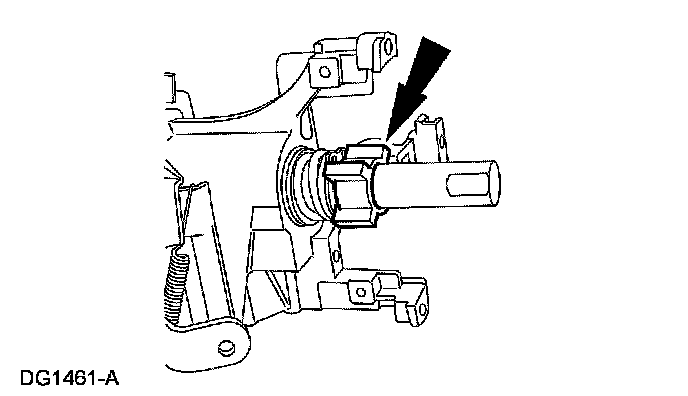

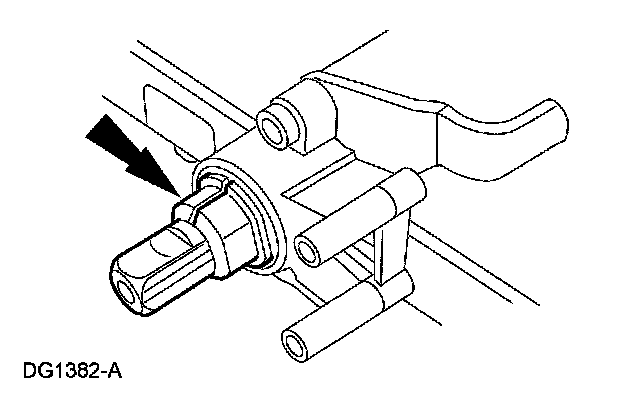

Remove the bearing retainer.





5. Remove the lock housing bearing.

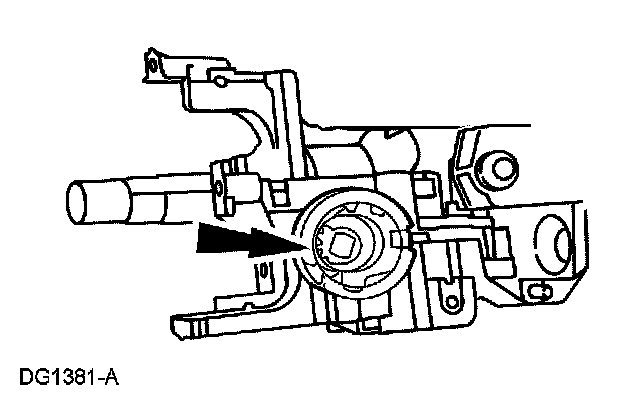

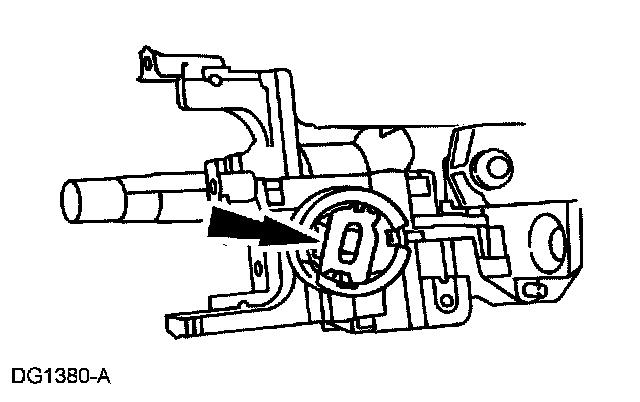

6. Remove the lock gear.

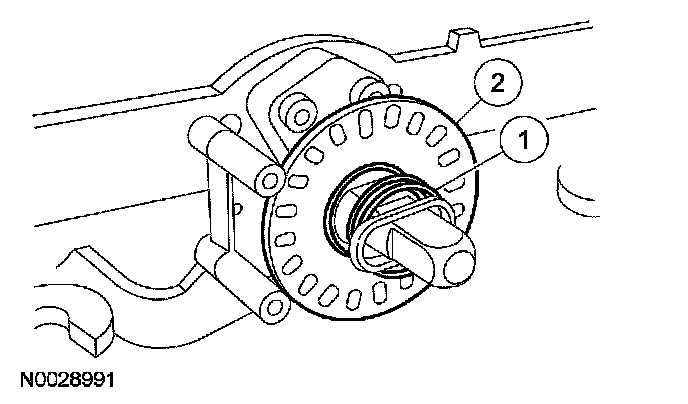

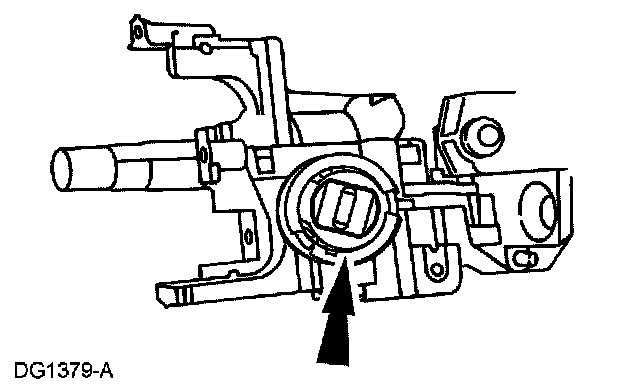

7. Remove the sensor ring.
1 Remove the lower bearing spring.
2 Remove the sensor ring.

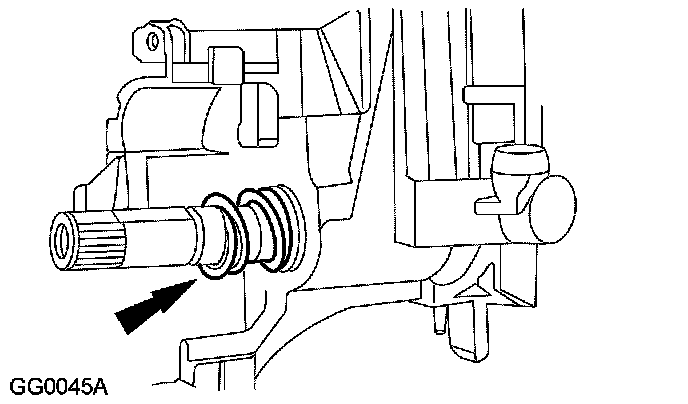

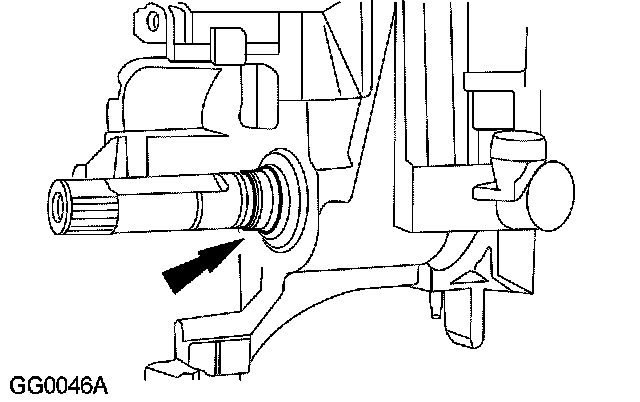

8. Remove the lower bearing tolerance ring from the shaft.

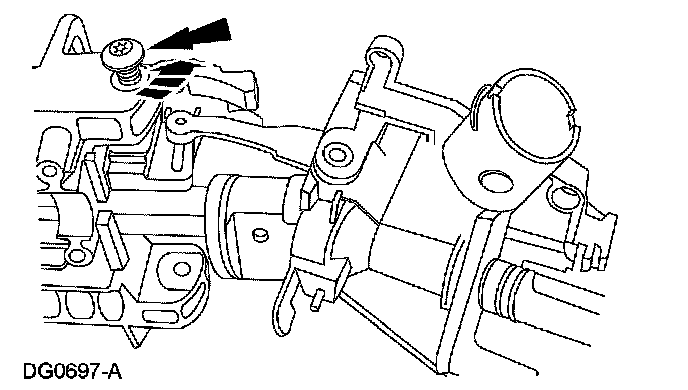

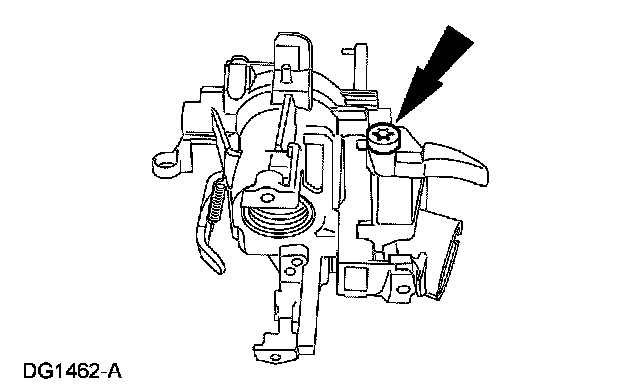

9. Remove the 2 tilt pivot screws.

10. WARNING: Steering column position spring is under tension and can come out with great force. Failure to follow these instructions may result in personal injury.

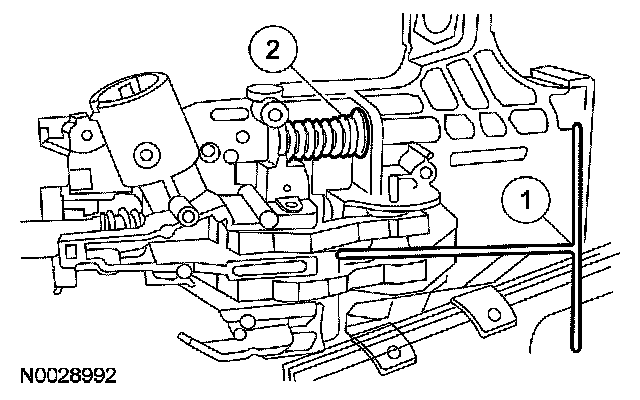

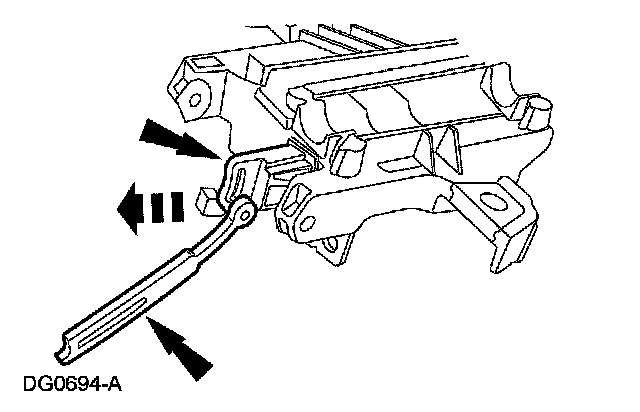

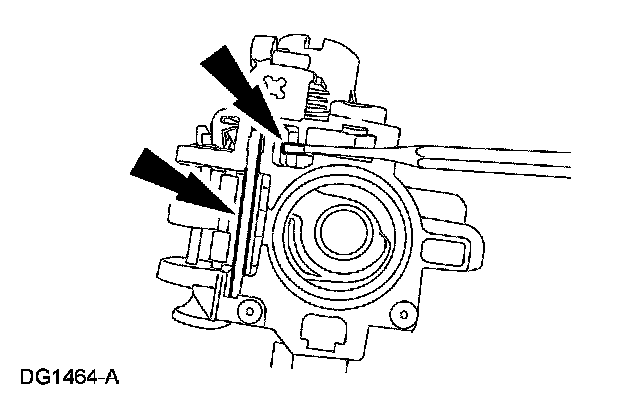

Remove the lock cylinder housing and shaft assembly from the actuator housing.
1 Pry up on the lock actuator lever (LH) using a shop fabricated tool.
2 Remove the position spring.





11. Remove the turn indicator cancel cam.

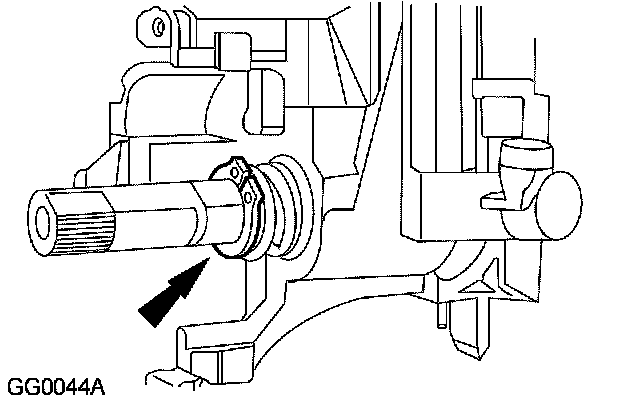

12. Remove the snap ring.





13. Remove the upper bearing spring.





14. Remove the bearing sleeve.

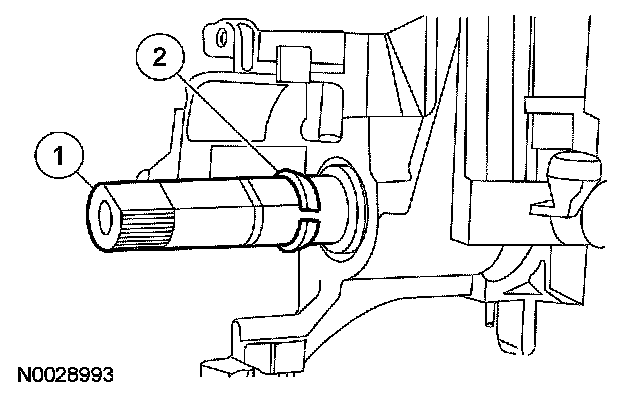

15. Remove the lower bearing tolerance ring.
1 Slide the steering column shaft in toward the lock cylinder housing.
2 Slide the steering column bearing tolerance ring from the steering column shaft and remove the shaft.

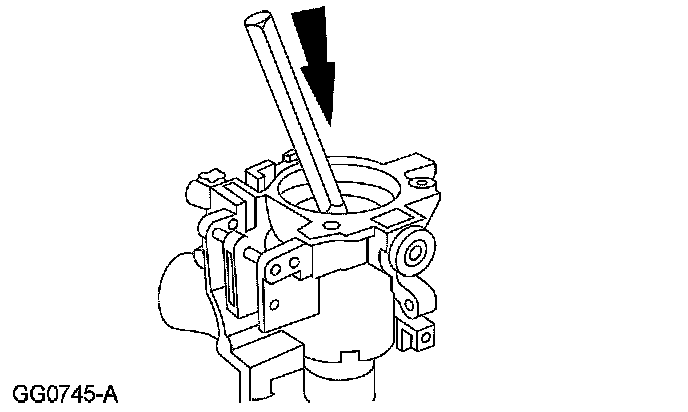

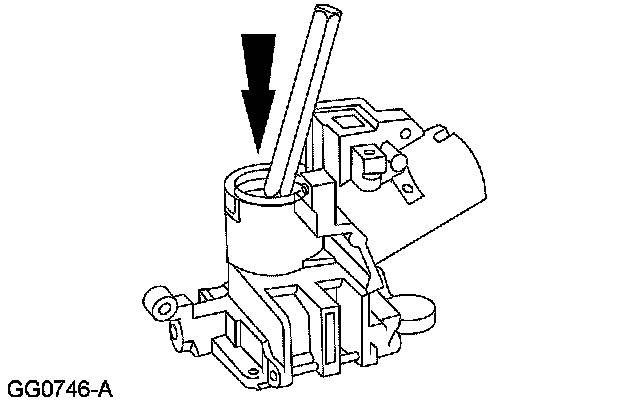

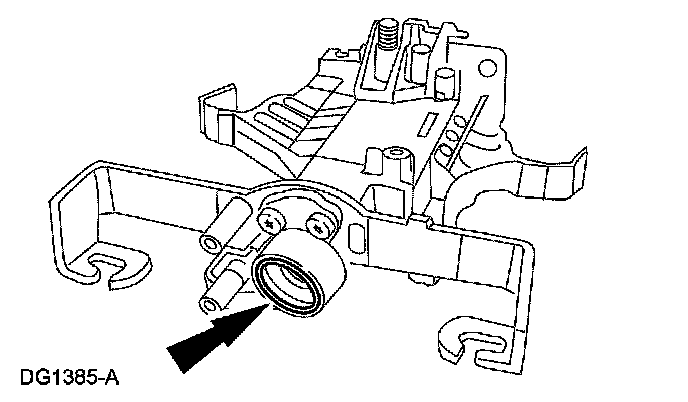

16. Using a punch, remove the lower bearing from the lock cylinder housing.





17. Use a punch to remove the bearing from the lock cylinder housing.





18. Remove the lower bearing and sleeve.





19. Remove the lower bearing retainer.
1 Remove the 3 bolts.
2 Remove the lower bearing retainer.





20. Remove the upper lock lever actuator and the lower lock lever actuator.





21. Remove the ignition lock cylinder lockout lever.

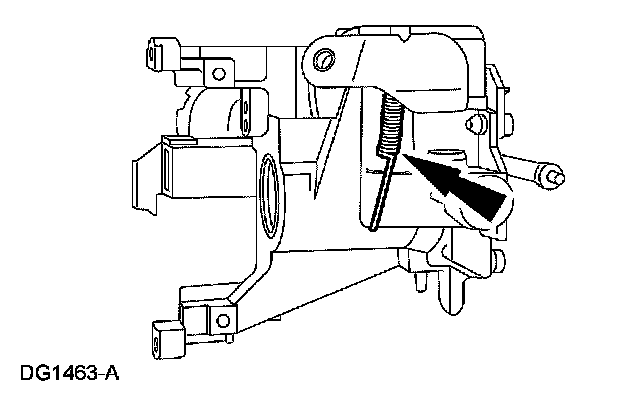

22. Remove the lock actuator lever return spring.

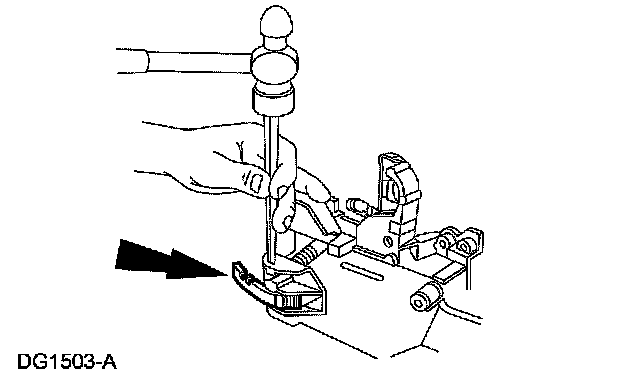

23. Using a punch, remove the pin and lock actuator lever.





24. Using a punch, remove the pin and locking lever cam.

25. NOTE: Do not remove the tilt lock levers if not required.





Using a punch, remove the pin, tilt locking levers and springs.
