Ignition Lock Cylinder - Functional

IGNITION LOCK CYLINDER - FUNCTIONAL

Ignition Lock Cylinder - Functional:

Removal and Installation
1. Disconnect the battery.
2. Remove the ignition switch lock cylinder.

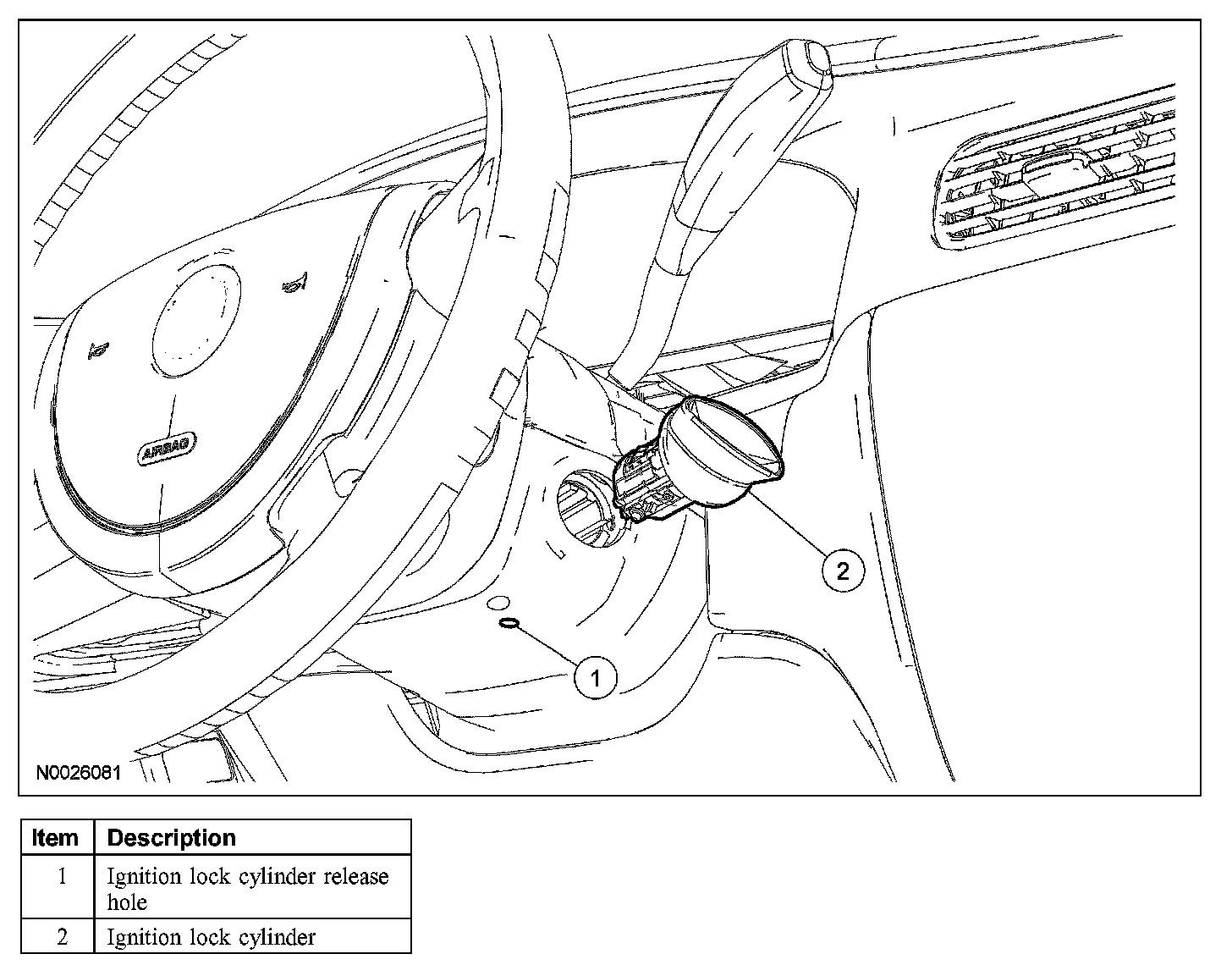

1 Insert the ignition key and turn to the RUN position.
2 While pressing in the ignition switch lock cylinder release pin, pull the lock cylinder out of the steering column.

3. To install, reverse the removal procedure.
- Verify the ignition switch lock cylinder operation.
