Ignition Switch: Service and Repair

Ignition Switch

Ignition Switch:

Removal and Installation
1. Depower the supplemental restraint system (SRS).
2. Remove the 2 lower instrument panel steering column cover screws and the cover.
^ To install, tighten to 9 Nm (80 inch lbs.).
3. Remove the 2 bolts and the instrument panel steering column opening cover reinforcement.
^ To install, tighten to 15 Nm (11 ft. lbs.).

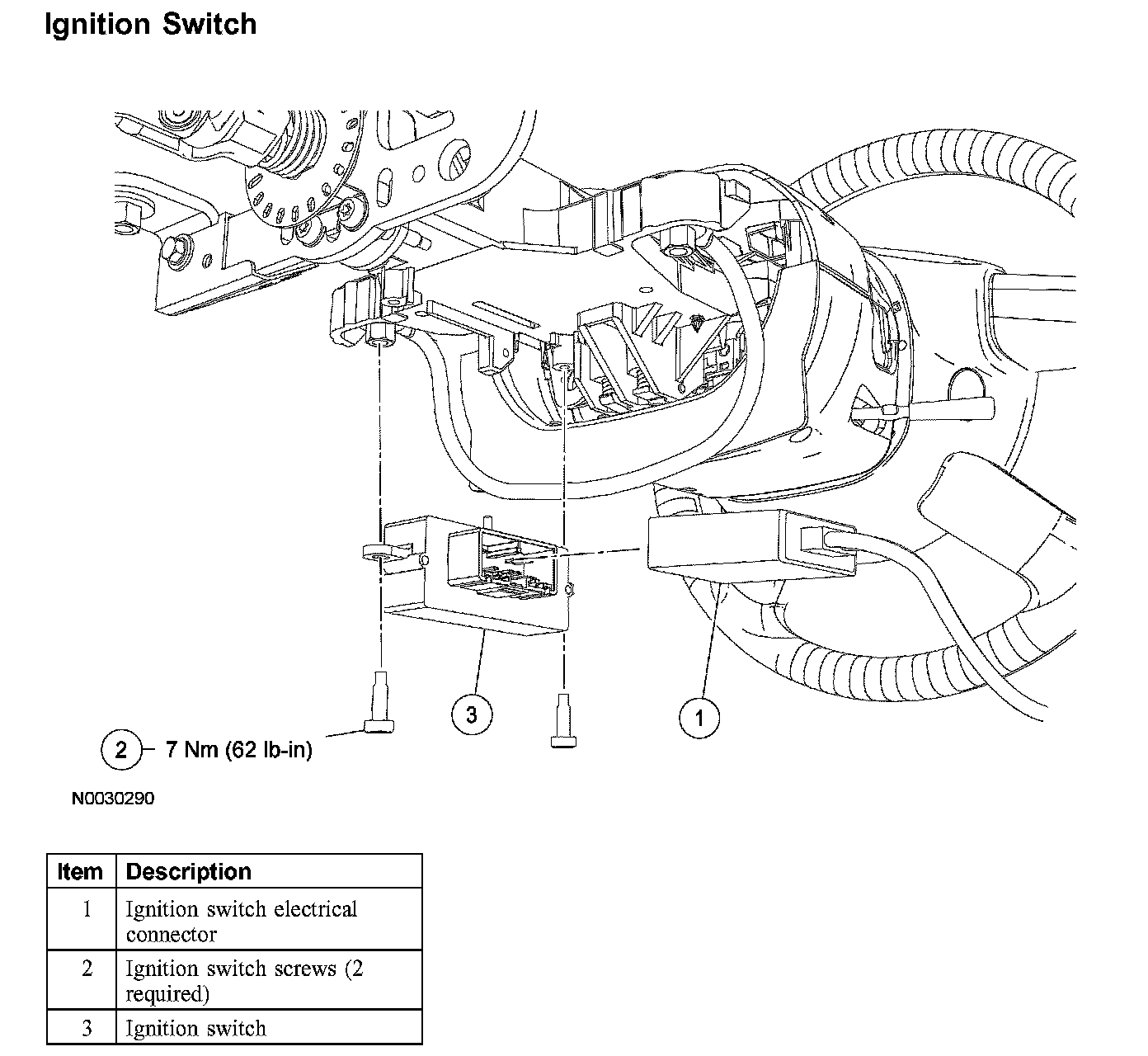

4. Disconnect the ignition switch electrical connector.
5. Remove the 2 ignition switch screws and the ignition switch.
^ To install, tighten to 7 Nm (62 inch lbs.).
6. To install, reverse the removal procedure.
^ Repower the supplemental restraint system (SRS).
